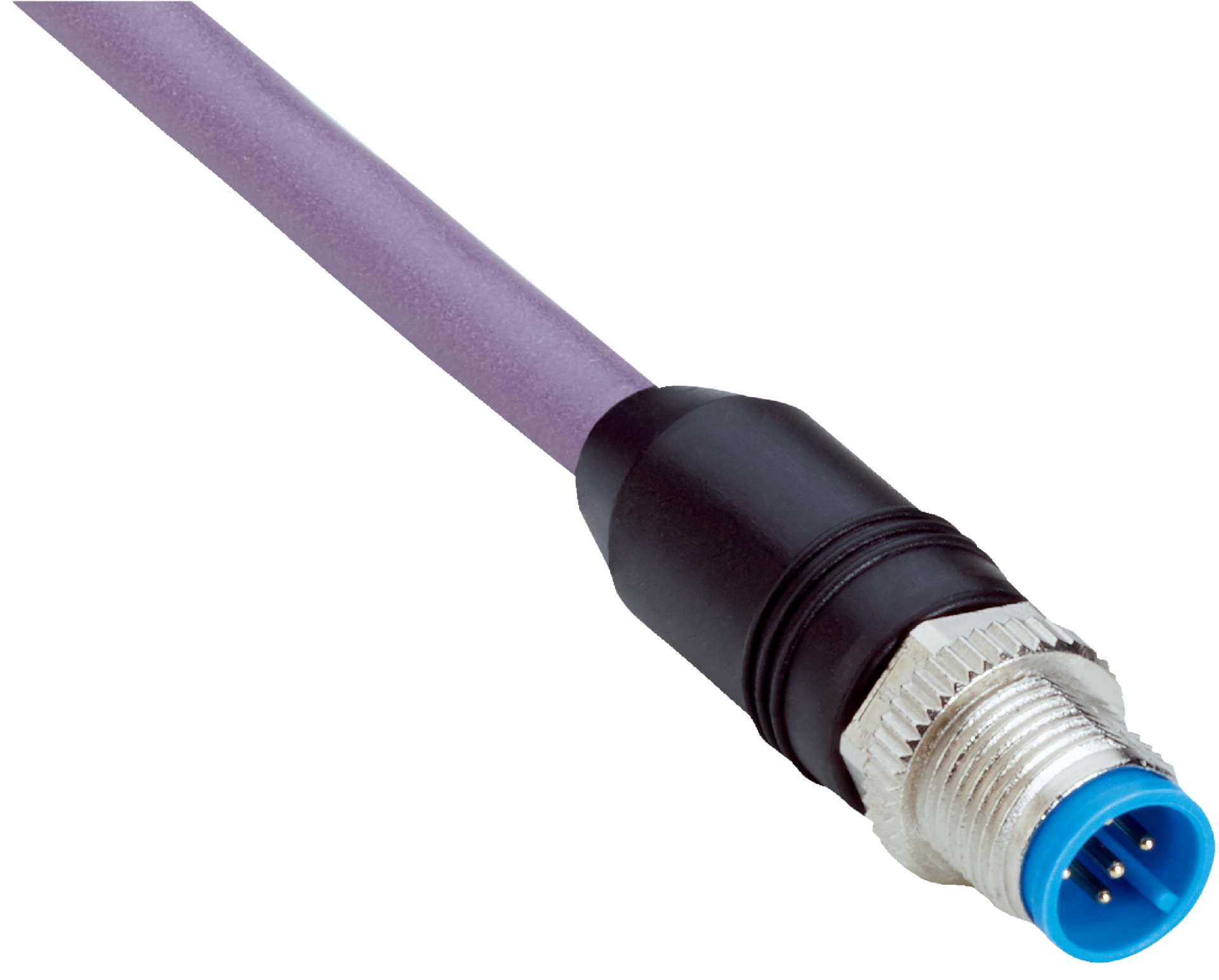

M12 5-Pin Cable Assembly | Shielded PUR Halogen-Free | 2m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 5-Pin Cable Assembly is designed for reliable sensor connectivity in industrial automation. With a 2m length, shielded PUR halogen-free construction, and an IP65/IP66K/IP67 enclosure rating, it’s perfect for drag chain operations and environments with oils and lubricants. Built to withstand extreme temperatures from -40 °C to +85 °C, this cable ensures durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads with screw connection
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m, 4-wire, PUR, halogen-free, violet jacket
- Cable diameter: 6.9 mm
- Conductor cross section: 0.25 mm² + 0.35 mm² + 1 drain wire
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Drag chain operation temperature: -30 °C to +80 °C
- Head temperature: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 5-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable: 2 m, 4-wire, PUR, halogen-free, violet jacket
- Shielded cable with conductor cross section 0.25 mm² + 0.35 mm² + 1 drain wire
- High bending radius for flexible use and stationary position
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
- Current loading 4 A with nominal voltage 300 V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling and drag chain applications to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

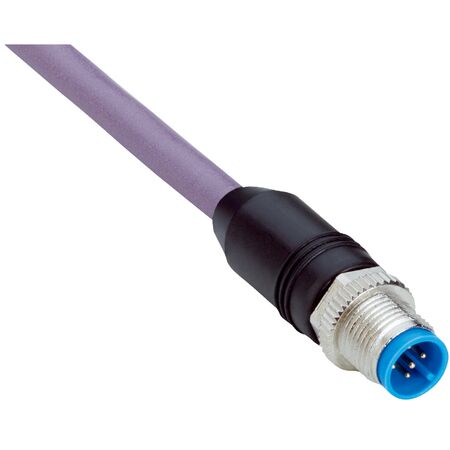

The SICK YM2A15-020C1BXLEAX shielded cable assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity in harsh environments.
