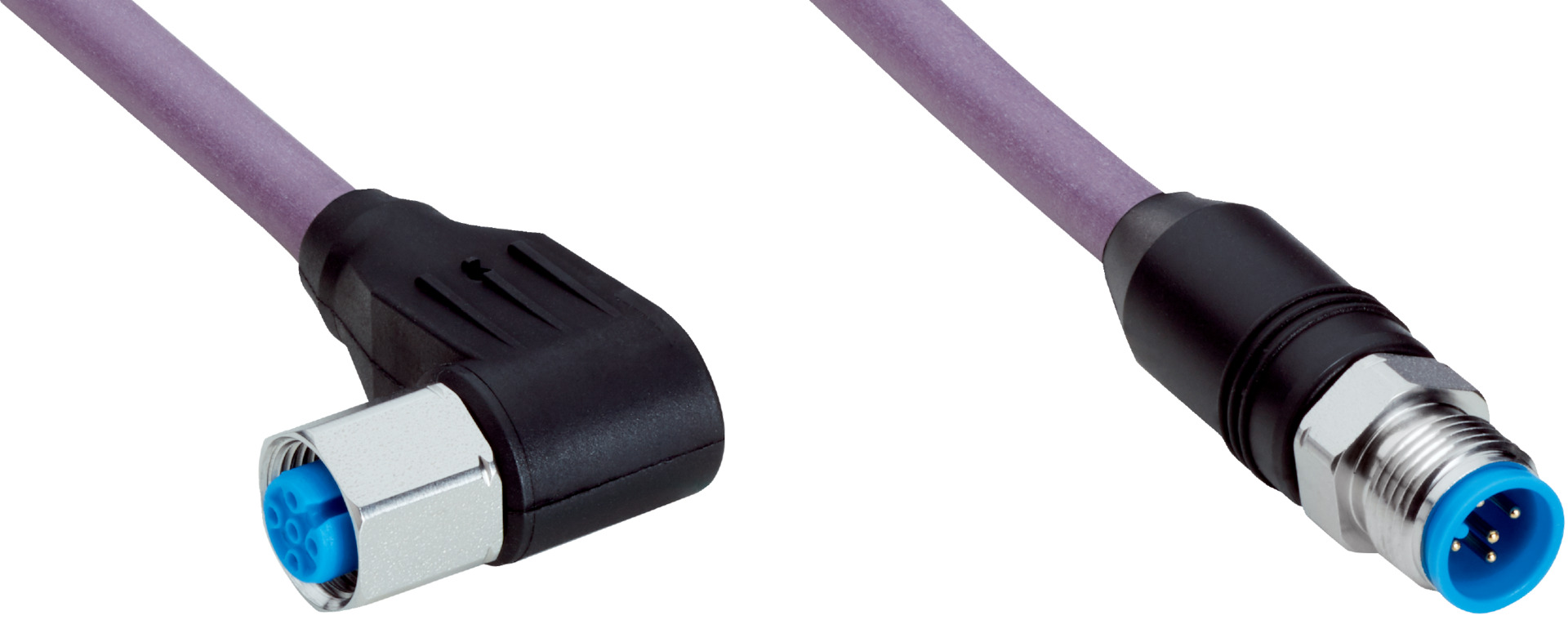

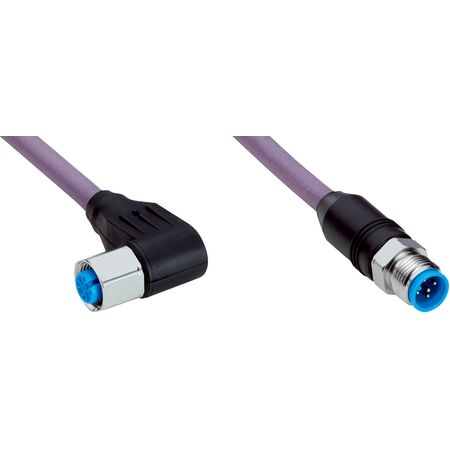

M12 5-Pin Connector Cable | Female Angled to Male Straight | IP65/IP66K/IP67 Rated | by SICK
The M12 5-pin connector cable is designed for robust industrial automation and sensor connectivity. Featuring a female angled connector and a male straight connector, this cable is shielded and halogen-free, making it ideal for use in harsh environments. With an IP65/IP66K/IP67 rating, it ensures reliable performance in zones with oils and lubricants, providing durability and safety for your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.25 mm² + 2 x 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Transmission characteristics: CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –30 °C to +70 °C, Stationary position –40 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, angled, A-coded
- Male connector M12, 5-pin, straight, A-coded
- Screw connection locking plug
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40°C to +85°C depending on part
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and wiring standards to ensure proper connection and safety.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Industrial automation and sensor connectivity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A55-020C1BM2A55 connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity in harsh environments.
