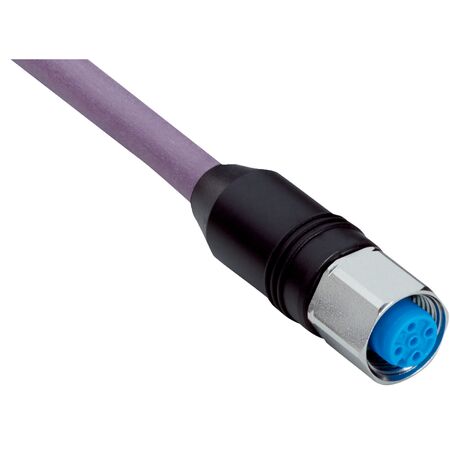

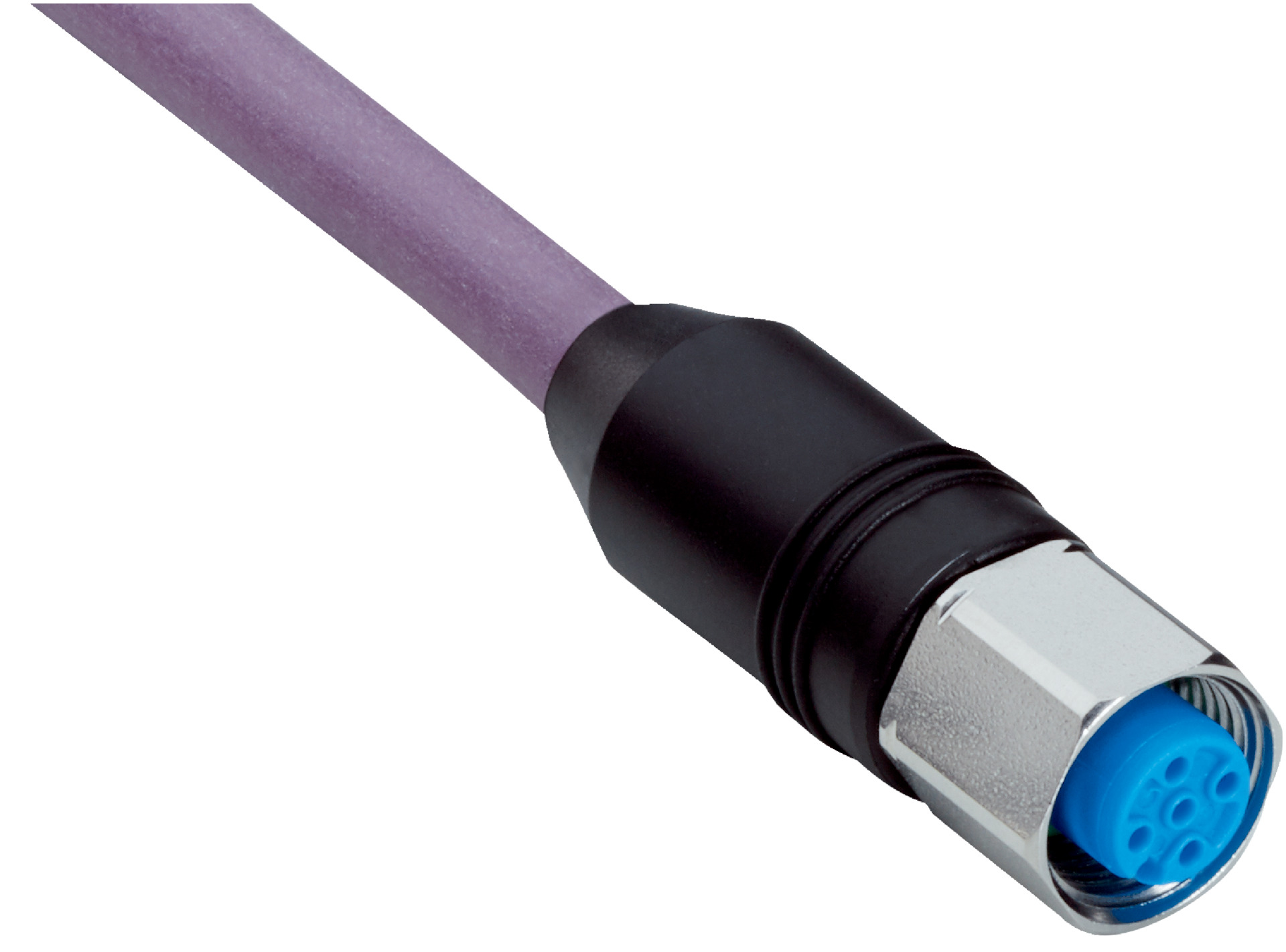

M12 5-Pin Connector Cable | Female Connector | IP65/IP66K/IP67 Rated | 2m Length | by SICK
The M12 5-Pin Connector Cable is designed for robust industrial applications, featuring a female connector with a screw connection and a durable TPU material. Ideal for drag chain operations and fieldbus communication systems like CANopen and DeviceNet™, this cable ensures reliable performance in harsh environments with an IP65/IP66K/IP67 rating and a flexible operating temperature range from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.25 mm² + 2 x 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded
- Flying leads with screw connection locking plug
- TPU connector material with stainless steel locking nut
- Halogen-free PUR jacket cable, violet color
- Shielded cable with 2 m length and 4 wires
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C depending on part
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
- Supports signal types Fieldbus, CANopen, DeviceNet™
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and compliant with local electrical standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems including CANopen and DeviceNet™
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A55-020C1BXLEAX connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
