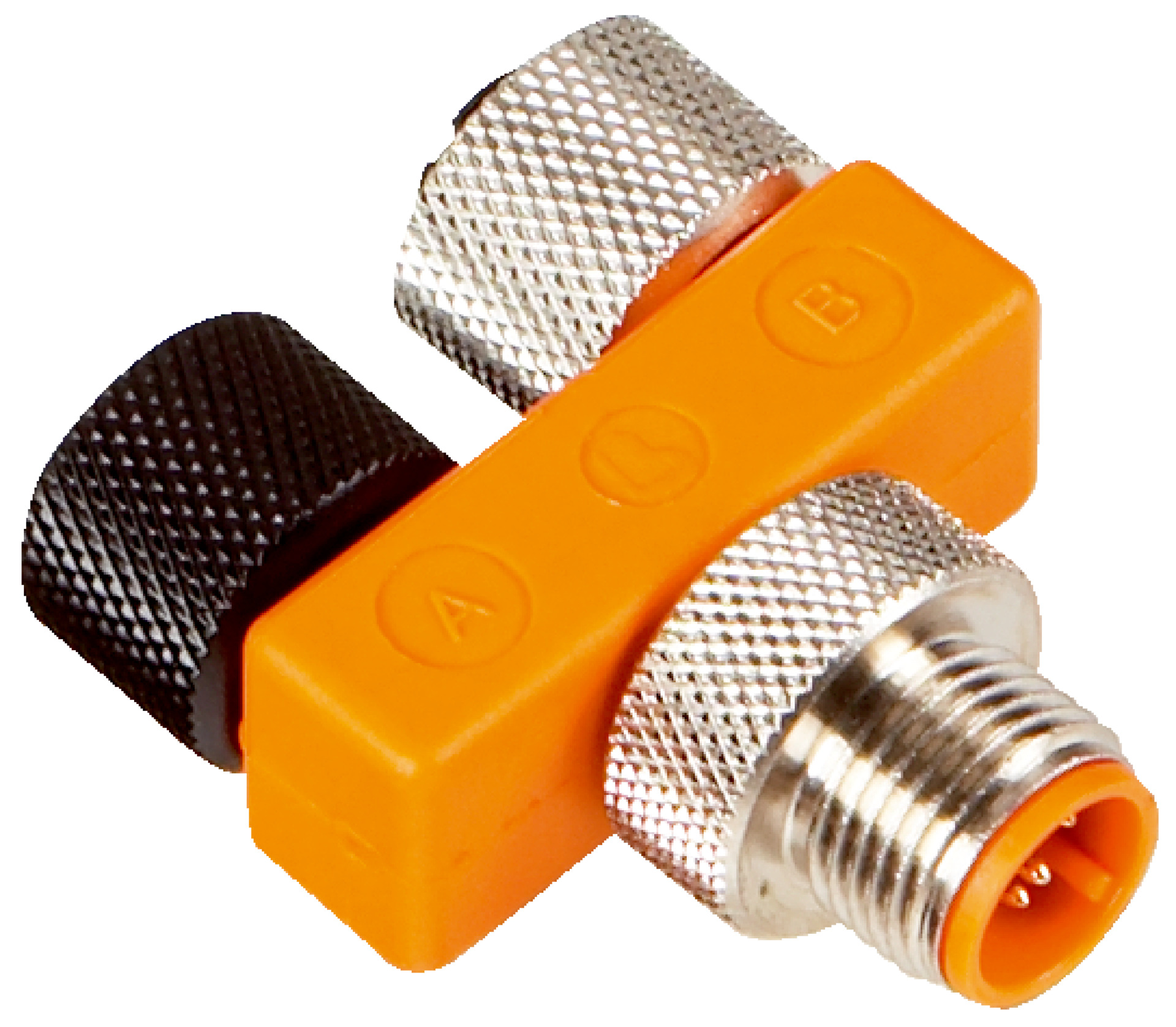

M12 5-Pin Connector Cable | Male & Female A-Coded Connectors | IP67 Rated | by SICK
The M12 5-pin connector cable is designed for robust industrial automation and sensor connectivity. Featuring male and female A-coded connectors, this unshielded cable supports a current loading of 4 A and operates within a temperature range of -25°C to +90°C. With an IP67 rating, it ensures reliable performance in harsh environments, making it ideal for factory and process automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, A-coded
- Connection type head B: Female connector, M12, 5-pin, A-coded
- Connection type head C: Female connector, M12, 5-pin, A-coded
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 36 V DC
- Current loading: 4 A
- Operating temperature: -25 °C to +90 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 200mm x 10mm
- Weight: 0.1 kg
Key Features
- Male and female M12, 5-pin, A-coded connectors
- Zinc die-cast, nickel-plated locking nut for durability
- Unshielded cable design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +90°C
- Current loading capacity of 4 A
- Reference voltage up to 36 V DC
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connectivity
- Factory and process automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SBO-02D12-SF M12 5-pin connector cable is available now for immediate purchase. Ideal for industrial automation and sensor connectivity applications.
