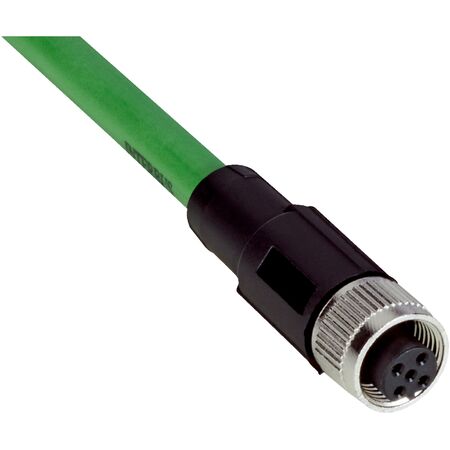

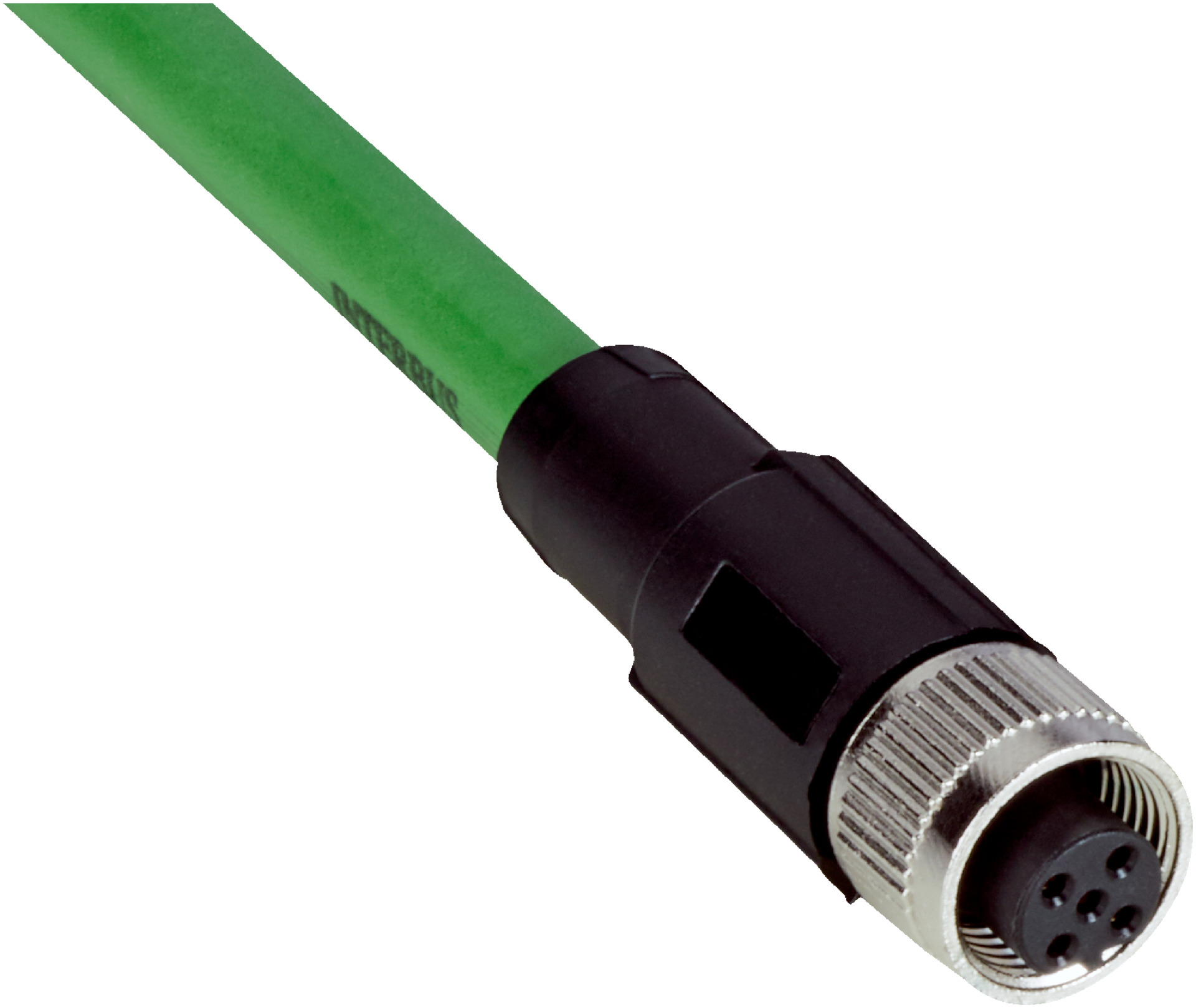

M12 5-Pin Connector Cable | Shielded 5-Wire PUR | IP65/IP67 Rated | by SICK
The M12 5-Pin Connector Cable is designed for industrial automation systems, featuring a shielded 5-wire PUR cable with a length of 5 m. Ideal for drag chain operation environments, it offers robust IP65/IP67 protection and a high bending radius for flexible use, ensuring durability with up to 5,000,000 bending cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 5 m
- Cable wires: 5-wire, PUR
- Jacket material: PUR
- Jacket color: Green
- Cable diameter: 8 mm
- Conductor cross section: 3 x 2 x 0.22 mm²
- Shielding: Shielded
- Bending radius: > 15 x cable diameter for flexible use and drag chain operation
- Bending cycles: 5,000,000
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 4 mA
- Traversing speed: 1.6 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 3 m/s²
- Signal type: Fieldbus, Interbus
- Application: Drag chain operation
- Enclosure rating: IP65 / IP67
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: II
- Dimensions (H x L x W): 20mm x 5000mm x 20mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 5-pin, straight, B-coded
- Shielded 5-wire PUR cable with 5 m length
- High bending radius suitable for flexible use and drag chain operation
- IP65/IP67 rated enclosure for robust protection
- Operating temperature range from -30°C to +70°C for flexible use
- High durability with 5,000,000 bending cycles
- Screw connection locking plug with zinc die-cast, nickel-plated locking nut
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connector systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Fieldbus and Interbus signal transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving system efficiency.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2B25-050IB1XLEAX industrial connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
