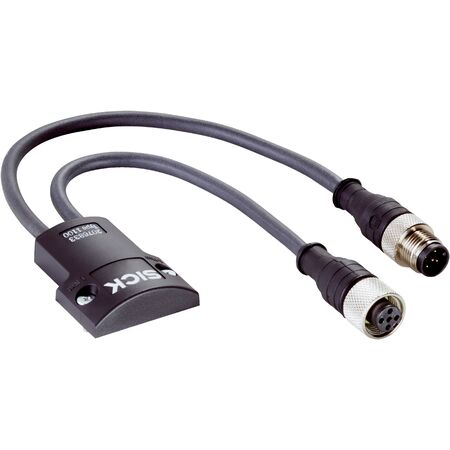

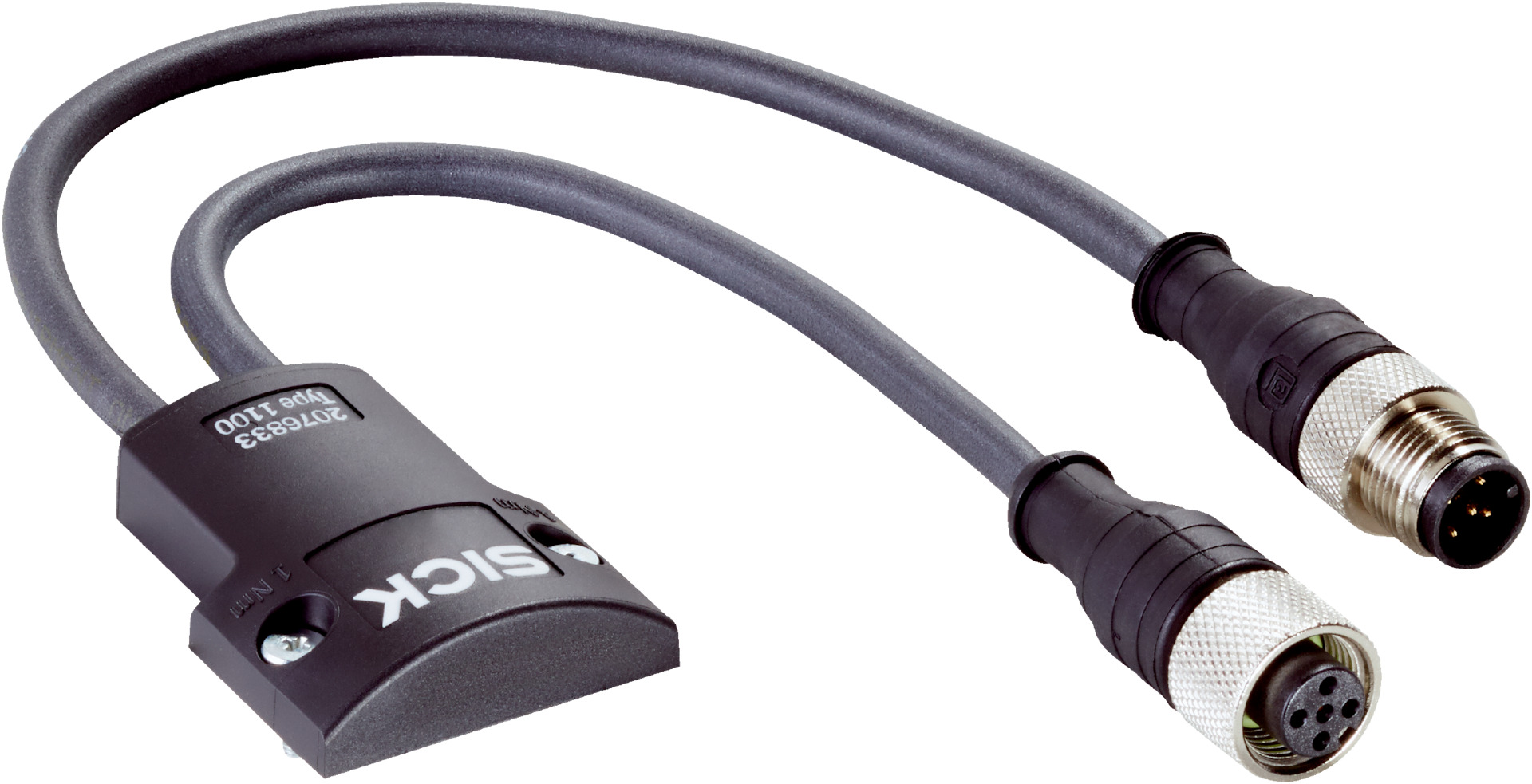

M12 5-Pin Connector SP1-1100 | IO-Link Compatible | Automatic Calibration | by SICK
The M12 5-Pin Connector SP1-1100 is designed for industrial automation systems, offering IO-Link compatibility and automatic calibration features. Ideal for applications requiring protective operation and device monitoring, this connector ensures reliable performance in challenging environments with a wide temperature range and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage VS: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Ambient operating temperature: –30 °C ... +55 °C
- Storage temperature: –30 °C ... +70 °C
- Air humidity: 15% ... 95%, Non-condensing
- Vibration resistance: 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Cable length system connection: 150 mm
- Cable diameter: 5 mm
- System connection: Plug, M12, 5-pin
- Extension connection: Female connector M12, 5-pin
- IO-Link possible on extension connection
- Configuration method: DIP switch
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- System connection via Plug, M12, 5-pin
- Extension connection with Female connector M12, 5-pin
- IO-Link possible on the extension connection
- Configuration via DIP switch
- Protective operation enabled
- Automatic calibration of protective field width
- Restart interlock feature
- External device monitoring (EDM)
- Application diagnostic output (ADO)
- Cascading capability
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial electrical connectors and safety standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation systems requiring protective operation and device monitoring
- Systems needing automatic calibration and cascading capabilities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-efficient industrial automation by enabling precise device monitoring and control
- Durable design reduces need for frequent replacements, minimizing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SP1-1100 system plug is available for immediate purchase, ideal for industrial automation and safety system applications.
