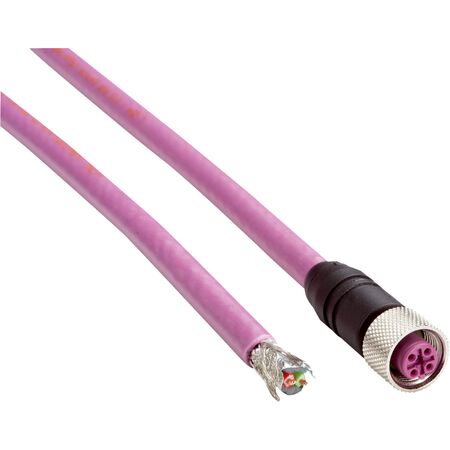

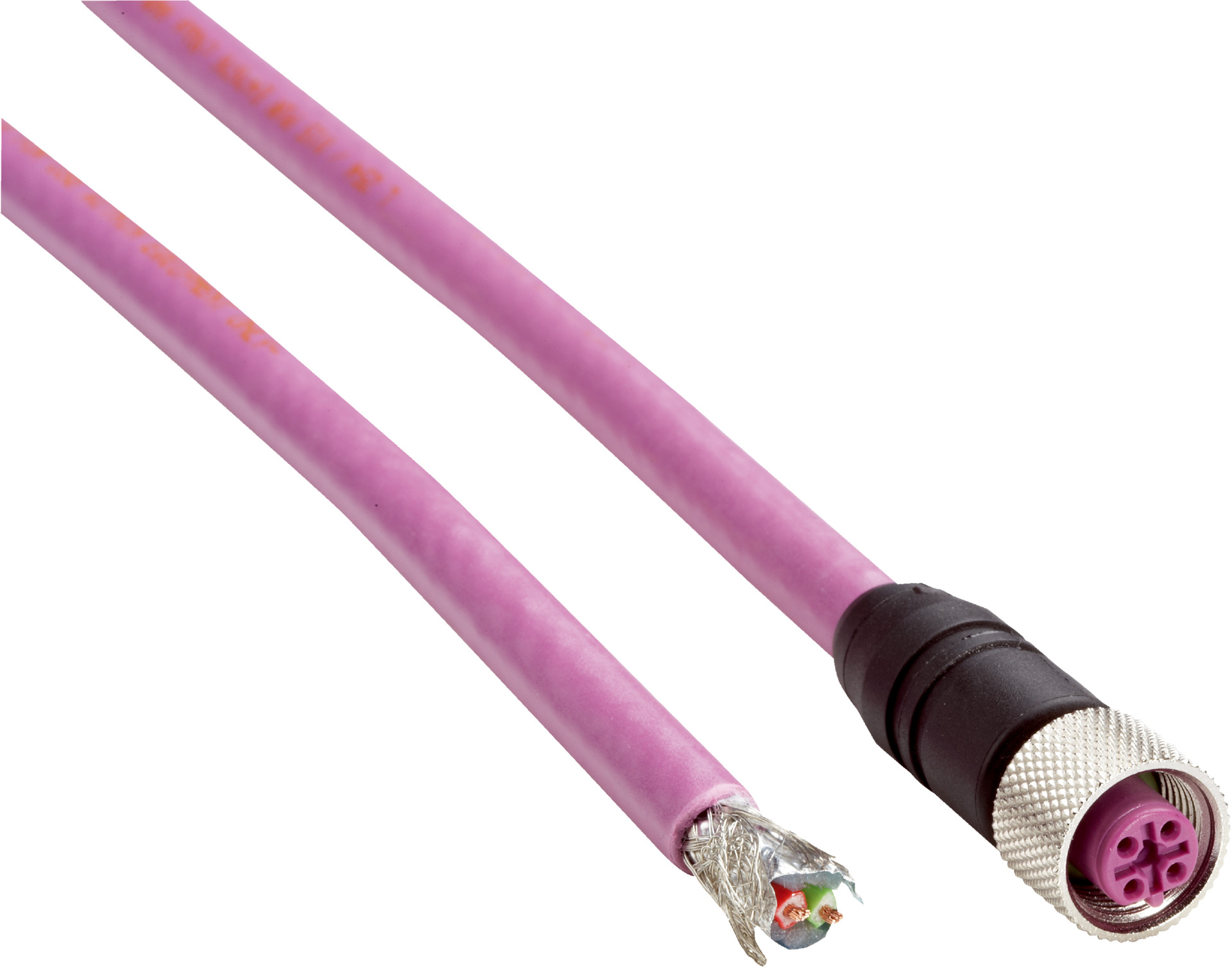

M12 5-Pin Female Connector Cable | 12m PUR Halogen-Free | IP67 Rated | by SICK
The M12 5-Pin Female Connector Cable is designed for robust industrial automation and fieldbus communication. With a 12m halogen-free PUR cable and IP67 rating, it ensures reliable connections in environments exposed to oils and lubricants. Built for durability, this cable withstands over 1,000,000 bending cycles, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.5 Nm
- Cable: 12 m, 2-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Violet
- Cable diameter: 7.6 mm
- Conductor cross section: 2 x 0.34 mm²
- Shielding: Shielded twisted pair
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 1,000,000
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Application: Zones with oils and lubricants
- Enclosure rating: IP67
- Operating temperature flexible use: –25 °C to +80 °C
- Operating temperature stationary position: –50 °C to +80 °C
- Drag chain operation temperature: –25 °C to +60 °C
- Head temperature range: –25 °C to +85 °C
- Dimensions (H x L x W): 15mm x 12000mm x 15mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 5-pin, straight, B-coded
- Cable length: 12 m, 2-wire, PUR, halogen-free
- Shielded twisted pair cable for signal integrity
- High durability with bending cycles ≥ 1,000,000
- Operating temperature range from -50 °C to +85 °C depending on use
- IP67 rated enclosure for dust and water protection
- Locking nut made of zinc die-cast, nickel-plated
- Tightening torque of 0.5 Nm for secure connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus and PROFIBUS DP communication networks
- Environments with exposure to oils and lubricants
- Use in zones requiring IP67 rated connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact during disposal
- Durable materials extend product life and reduce waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-1205-G12MQ connector cable is available for immediate purchase, ideal for industrial automation and fieldbus communication applications requiring durable and reliable connections.
