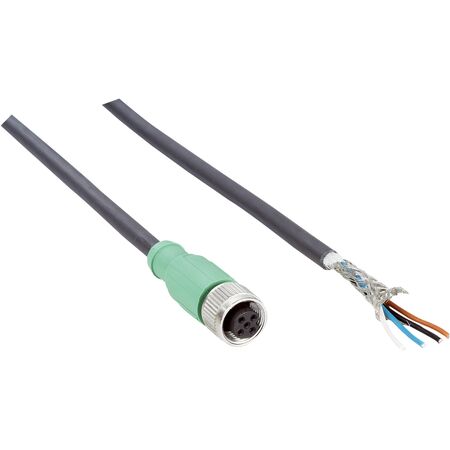

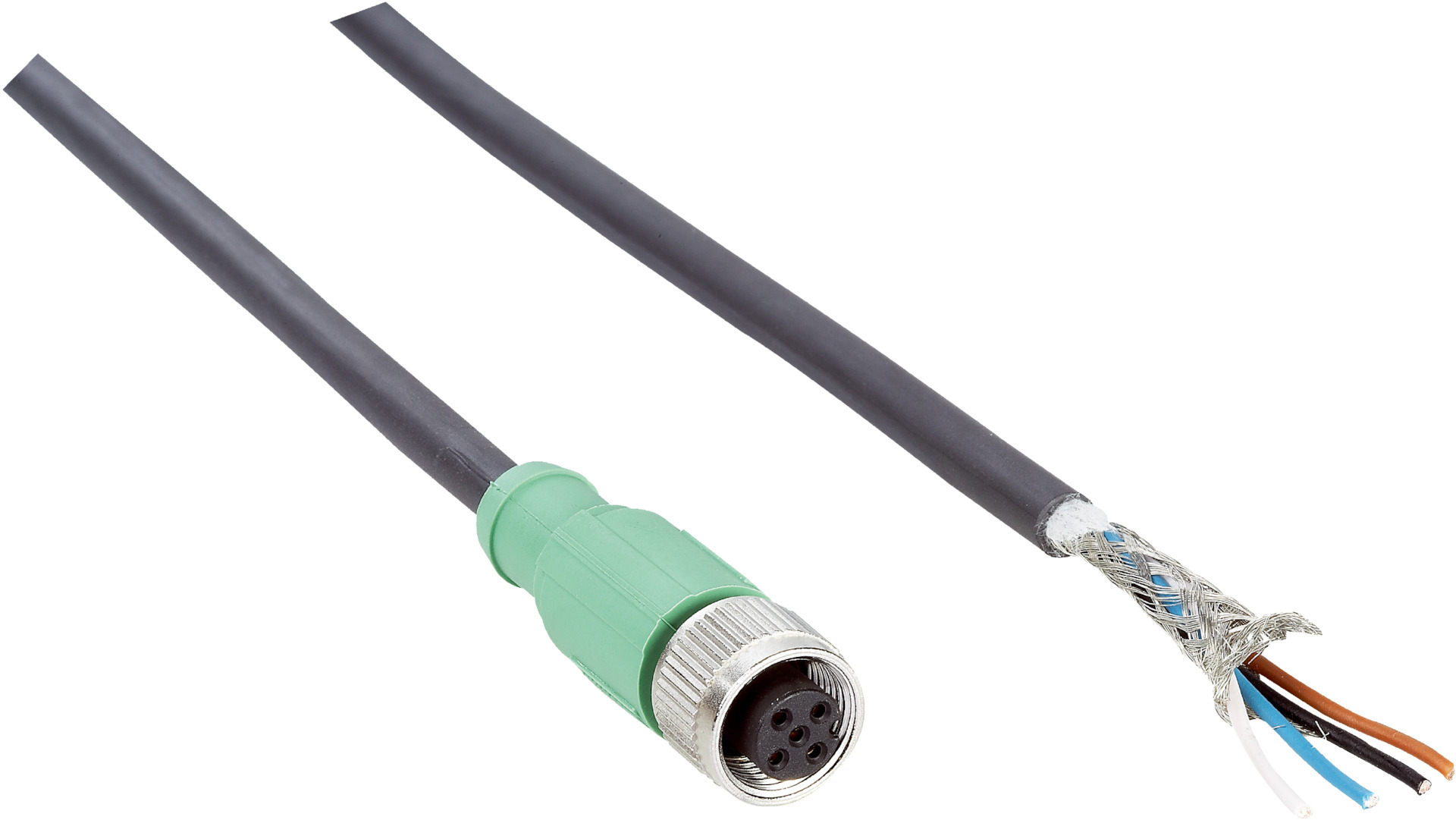

M12 5-Pin Female Connector Cable | 5m Length | Halogen-Free PUR Jacket | by SICK
The M12 5-Pin Female Connector Cable is designed for reliable industrial automation and sensor connectivity. With a 5m length and a durable halogen-free PUR jacket, this cable ensures safe power and signal transmission in control systems. Ideal for machine building and factory automation, it features a robust design with a zinc die-cast locking nut and high bending cycle life, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 5.9 mm
- Conductor cross section: 0.5 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: 4,000,000
- Reference voltage: ≤ 300 V
- Signal type: Power
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded
- Flying leads cable with 5 m length
- Cable made of PUR, halogen-free and black jacket
- Shielded cable with 0.5 mm² conductor cross section
- Durable zinc die-cast, nickel-plated locking nut
- High bending radius for flexible use and stationary position
- Long bending cycle life of 4,000,000 cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal and power transmission in control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YF2A64-050XXXXLEAX M12 5-pin female connector cable is available for immediate purchase, ideal for industrial automation and control system applications.
