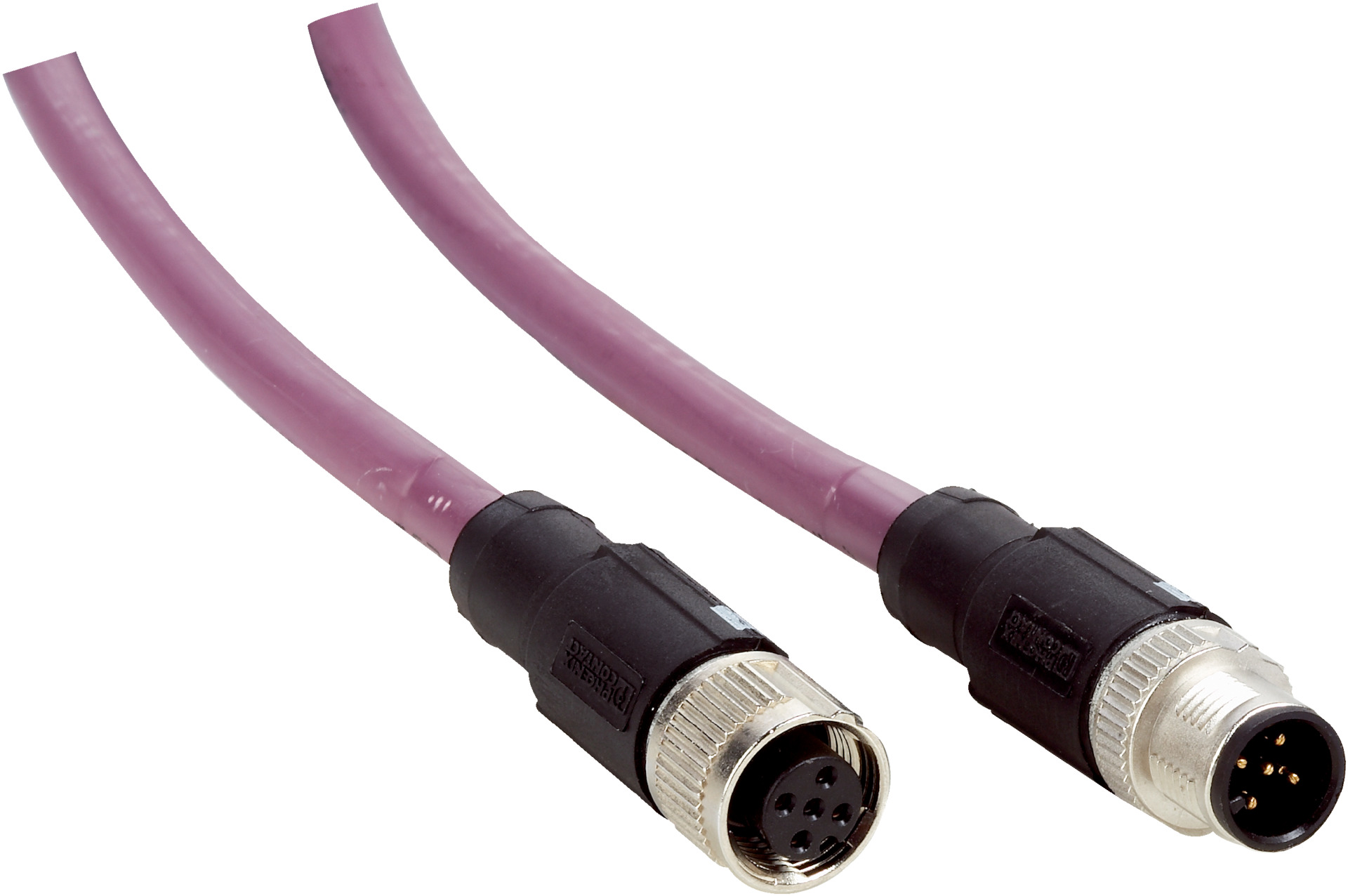

M12 5-Pin Fieldbus Cable | IP65/IP68/IP69K Rated | 6m Halogen-Free PUR | by SICK
The M12 5-pin fieldbus cable is designed for robust industrial automation applications, featuring durable TPU connectors and a halogen-free PUR jacket. With an impressive IP65/IP68/IP69K rating, it withstands harsh environments while supporting fieldbus communication networks like CANopen and DeviceNet™. Ideal for machine and factory automation, this cable ensures reliable connections and high performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 6 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP68 / IP69K
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Dimensions (H x L x W): 10mm x 6000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 5-pin straight A-coded connectors
- Durable TPU connector material with zinc die-cast nickel-plated locking nut
- 6 m PUR halogen-free cable with 5 wires and 0.34 mm² conductor cross section
- Unshielded cable with high bending radius for flexible and stationary use
- High IP rating of IP65/IP68/IP69K for harsh environments
- Supports current loading of 4 A and reference voltage up to 60 V
- Designed for high bending cycles ≥ 4,000,000 and operating temperatures from -40 °C to +90 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Machine and factory automation requiring robust cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

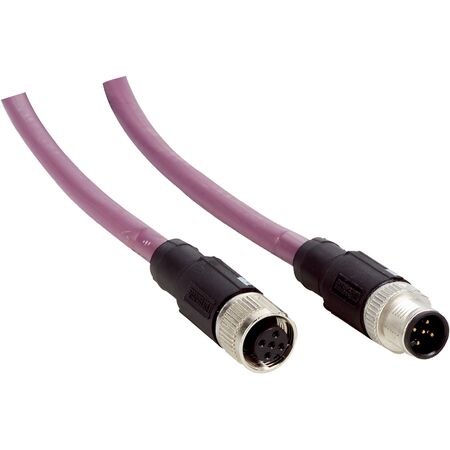

The SICK DSL-1205-G06MK M12 5-pin fieldbus cable is available for immediate purchase, ideal for industrial automation and control system applications.
