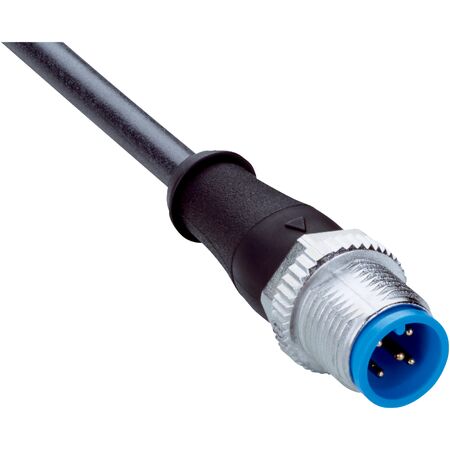

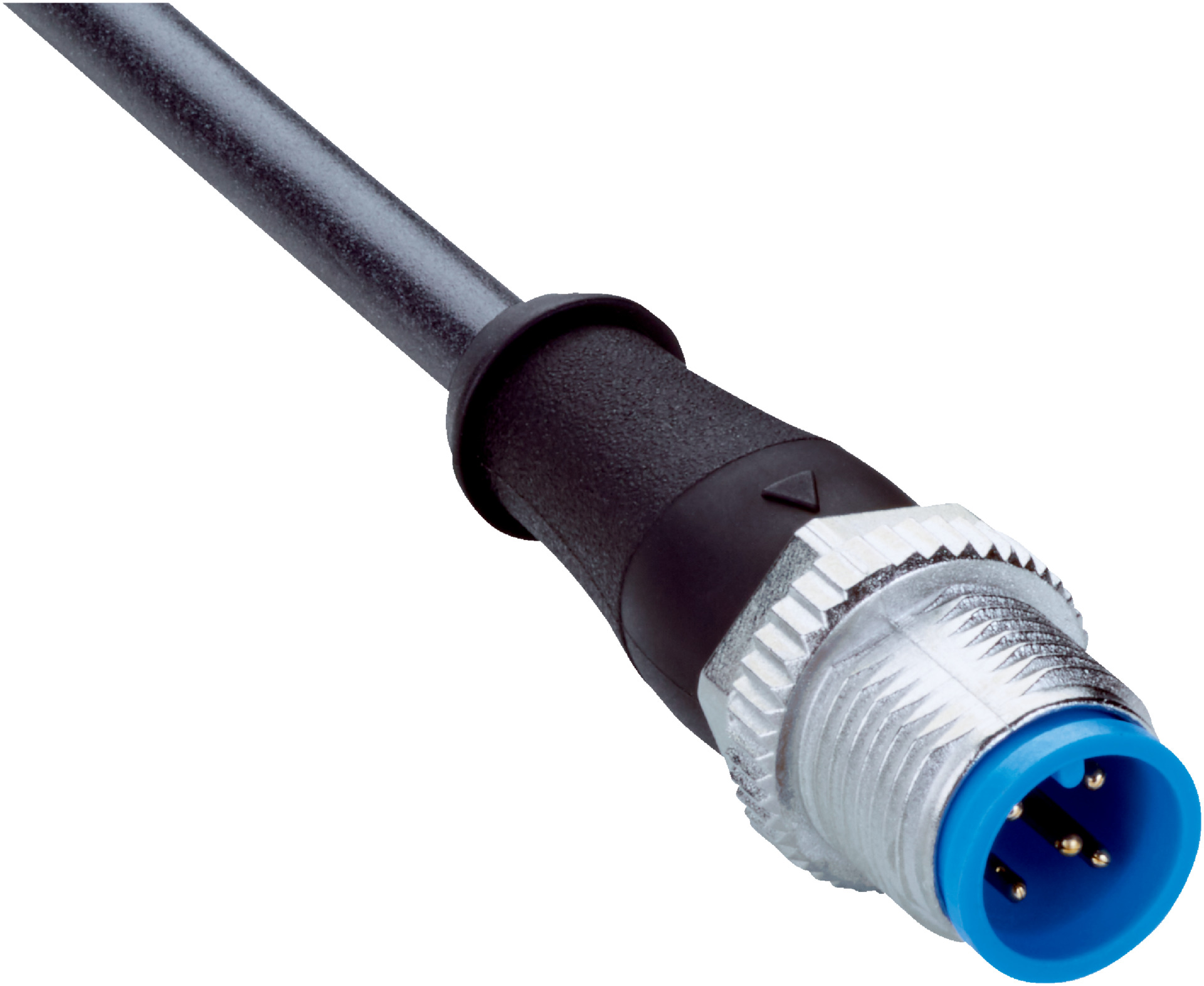

M12 5-Pin Male Connector Cable | 3m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 5-Pin Male Connector Cable is designed for reliable sensor and actuator connections in automation systems. With a durable 3m PUR halogen-free cable and an impressive IP65/IP66K/IP67 enclosure rating, it ensures robust protection in various environments. Ideal for robotics and drag chain operations, this cable withstands extreme temperatures and high bending cycles, making it perfect for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 5-Pin Male Connector Cable | 3m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
Brand: SICK
SKU: 2145533
Alternatively Known As: M12 5-pin male connector cable, sensor actuator cable, PUR cable connector, industrial automation connector
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Bending cycles: 10,000,000
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 5-pin, straight, A-coded connector with screw locking plug
- 3 m PUR halogen-free cable with 5 wires and 0.34 mm² conductor cross section
- High durability with 10,000,000 bending cycles and 2,000,000 torsion cycles
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in automation systems
- Robotics and drag chain operations
- Use in uncontaminated zones and zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A15-030UB5XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor/actuator applications.
