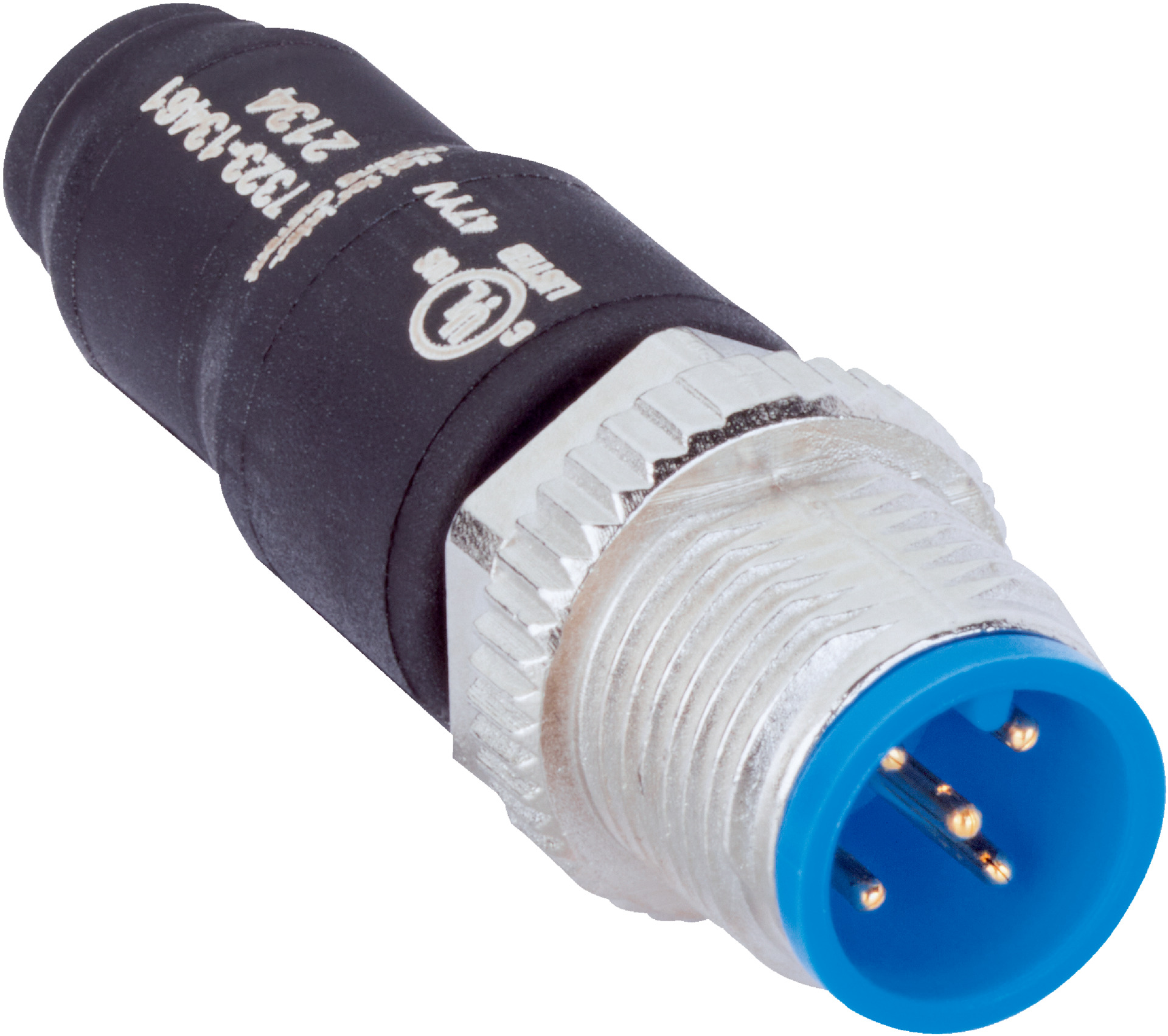

M12 5-Pin Male Connector | IP67 Rated | TPU Material | CANopen & DeviceNet Support | by SICK
The M12 5-pin male connector is designed for robust industrial automation systems, featuring a durable TPU construction and an IP67 rating for dust and water protection. With support for CANopen and DeviceNet communication protocols, this connector is perfect for machine connectivity and sensor networking, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Reference voltage: ≤ 30 V
- Signal type: CANopen, DeviceNet™
- Authorizations: UL, CE
- UL File No.: E335179
- Enclosure rating: IP67
- Operating temperature: -25 °C to +85 °C
- Contamination rating: 3
- Overvoltage category: III
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 5-pin, straight, A-coded
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Signal types supported: CANopen, DeviceNet™
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from -25 °C to +85 °C
- Contamination rating 3
- Overvoltage category III
- Certified with UL, CE, cULus
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial connectors and communication protocols.
Applications
- Industrial automation systems
- Machine connectivity and communication
- Sensor and actuator networking
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and IP67 rating reduce replacement frequency and electronic waste
- Supports efficient industrial communication reducing energy consumption in automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

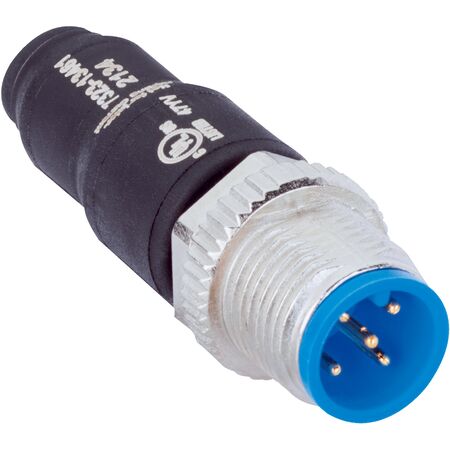

The SICK YM2W15-000000XXXXX M12 5-pin male connector is available for immediate purchase, ideal for industrial automation and communication applications.
