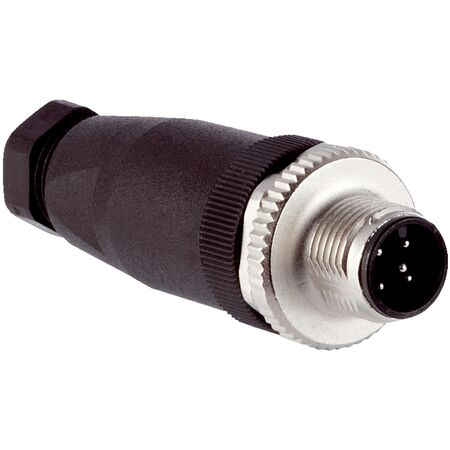

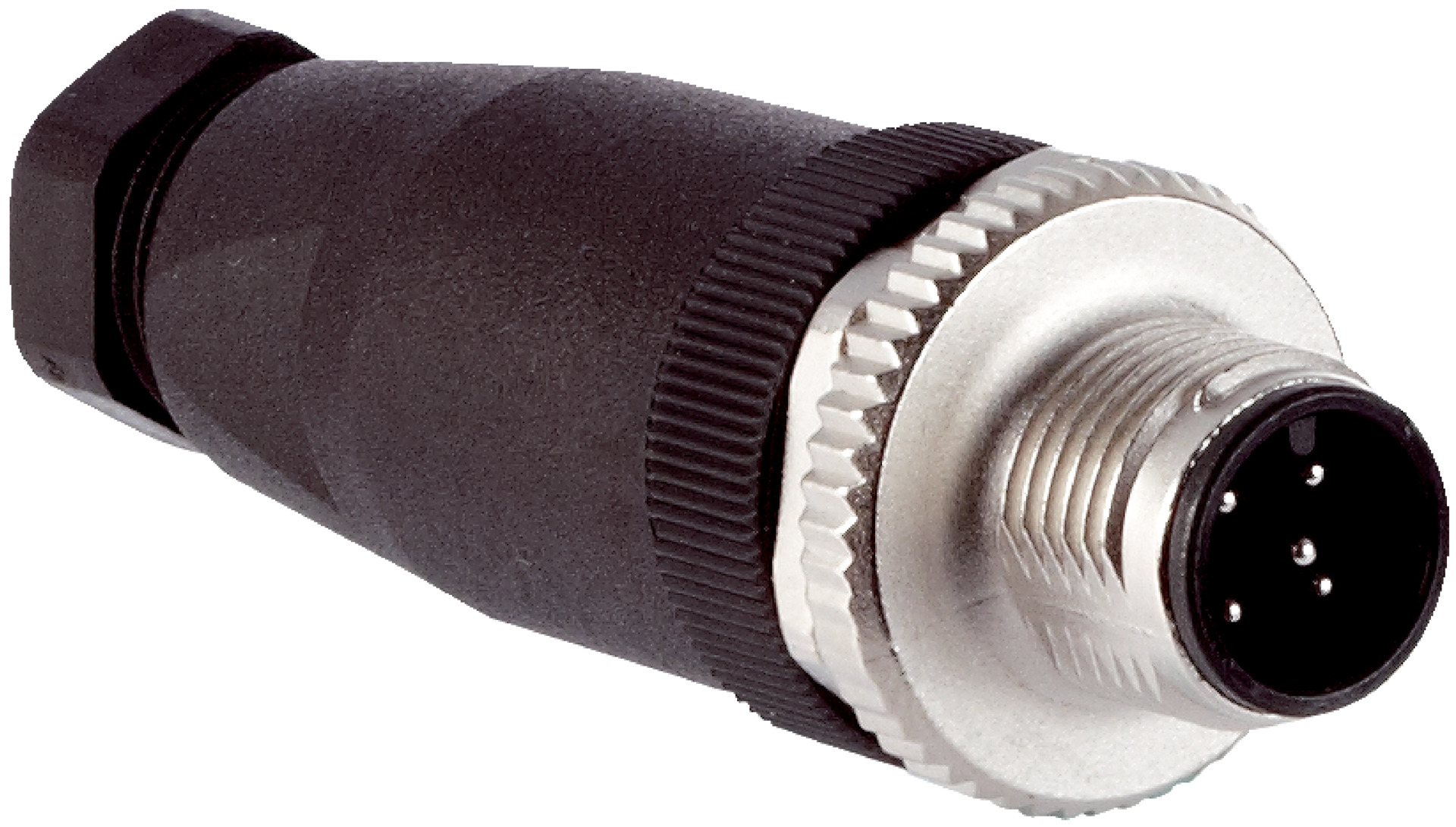

M12 5-Pin Male Connector | Screw-Type Terminals | IP67 Rated | by SICK
The M12 5-Pin Male Connector is designed for secure connections in industrial automation, featuring screw-type terminals and a durable PA construction. With an IP67 rating, it offers excellent protection against dust and water, making it ideal for field bus technology and machine wiring applications. This connector operates effectively in temperatures ranging from -40°C to +85°C, ensuring reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 5-Pin Male Connector | Screw-Type Terminals | IP67 Rated | by SICK
Brand: SICK
SKU: 6022083
Alternatively Known As: M12 5-pin male connector, M12 screw terminal connector, Industrial M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PA (Polyamide)
- Connector color: Black
- Locking nut material: CuZn (Copper-Zinc alloy)
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cross-section: ≤ 0.75 mm²
- Reference voltage: ≤ 125 V
- Current loading: ≤ 4 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Authorizations: UL certified (UL File No. E335179)
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male M12, 5-pin, straight, A-coded connector
- Screw-type terminals for secure wiring
- Connector material made of durable PA
- Locking nut made of CuZn for reliable connection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +85°C
- UL and cULus certified for safety compliance
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Field bus technology connections
- Industrial automation and sensor connectivity
- Machine and factory automation wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK STE-1205-G connector is available for immediate purchase, ideal for industrial automation and field bus technology applications.
