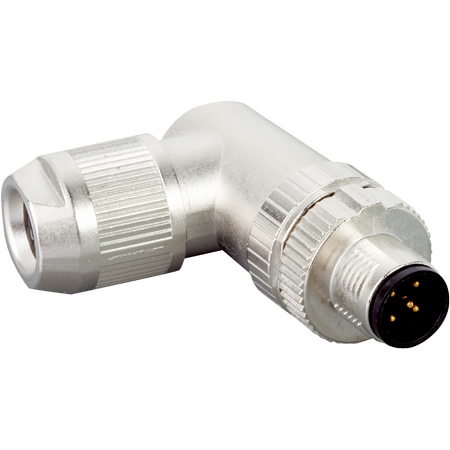

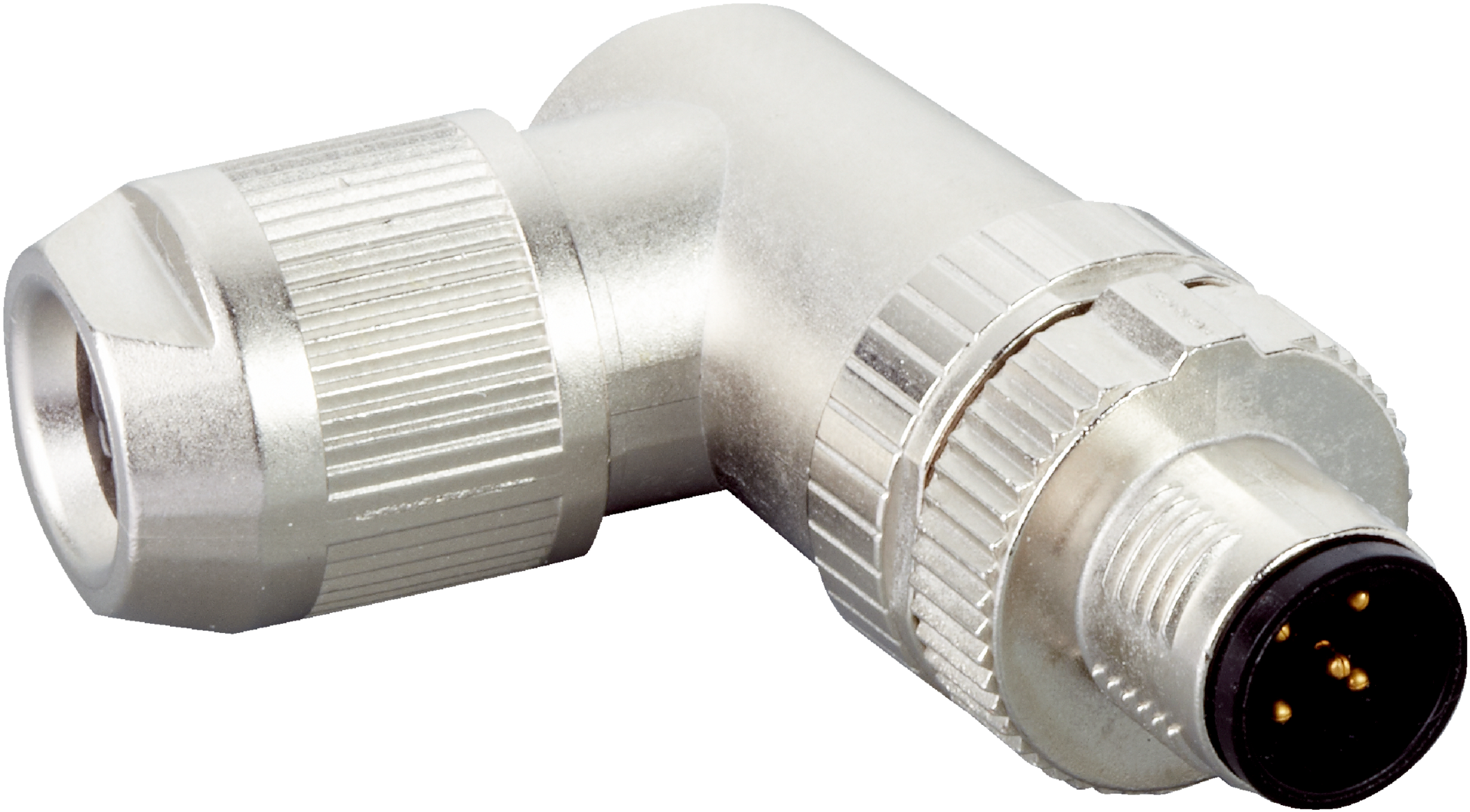

M12 5-Pin PROFIBUS Connector | IP67 Rated | Angled Male Connector | Quick Screw Locking | by SICK
The M12 5-Pin PROFIBUS Connector is designed for reliable connections in industrial automation, featuring an IP67 rating for dust and water protection. With a spring-cage connection and quick screw locking mechanism, it ensures secure wiring in harsh environments. Ideal for PROFIBUS DP network connections, this durable connector supports current loading up to 4 A and operates within a temperature range of -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 5-pin PROFIBUS Connector, SICK PROFIBUS DP Connector, IP67 M12 Connector
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, angled, B-coded
- Connection type: Spring-cage connection
- Locking plug connector: Quick screw connection
- Locking nut material: Nickel-plated brass
- Shielding: Shielded
- Permitted cable diameter: 4 mm to 8 mm
- Permitted cross-section: 0.14 mm² to 0.5 mm²
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Signal type: PROFIBUS DP
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 5-pin, angled, B-coded
- Spring-cage connection for secure wiring
- Quick screw locking plug connector
- Nickel-plated brass locking nut for durability
- Shielded design for signal integrity
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +85 °C
- Supports current loading up to 4 A
- Permitted cable diameter from 4 mm to 8 mm
- Permitted cross-section from 0.14 mm² to 0.5 mm²
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- PROFIBUS DP network connections
- Harsh environment sensor and actuator connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Shielded design minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK STE-1205-WQ PROFIBUS DP Connector is available for immediate purchase, ideal for industrial automation and control system applications.
