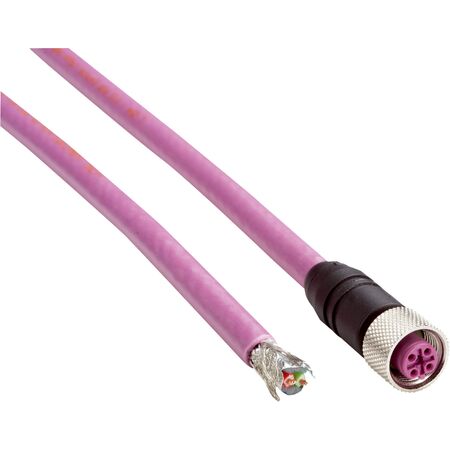

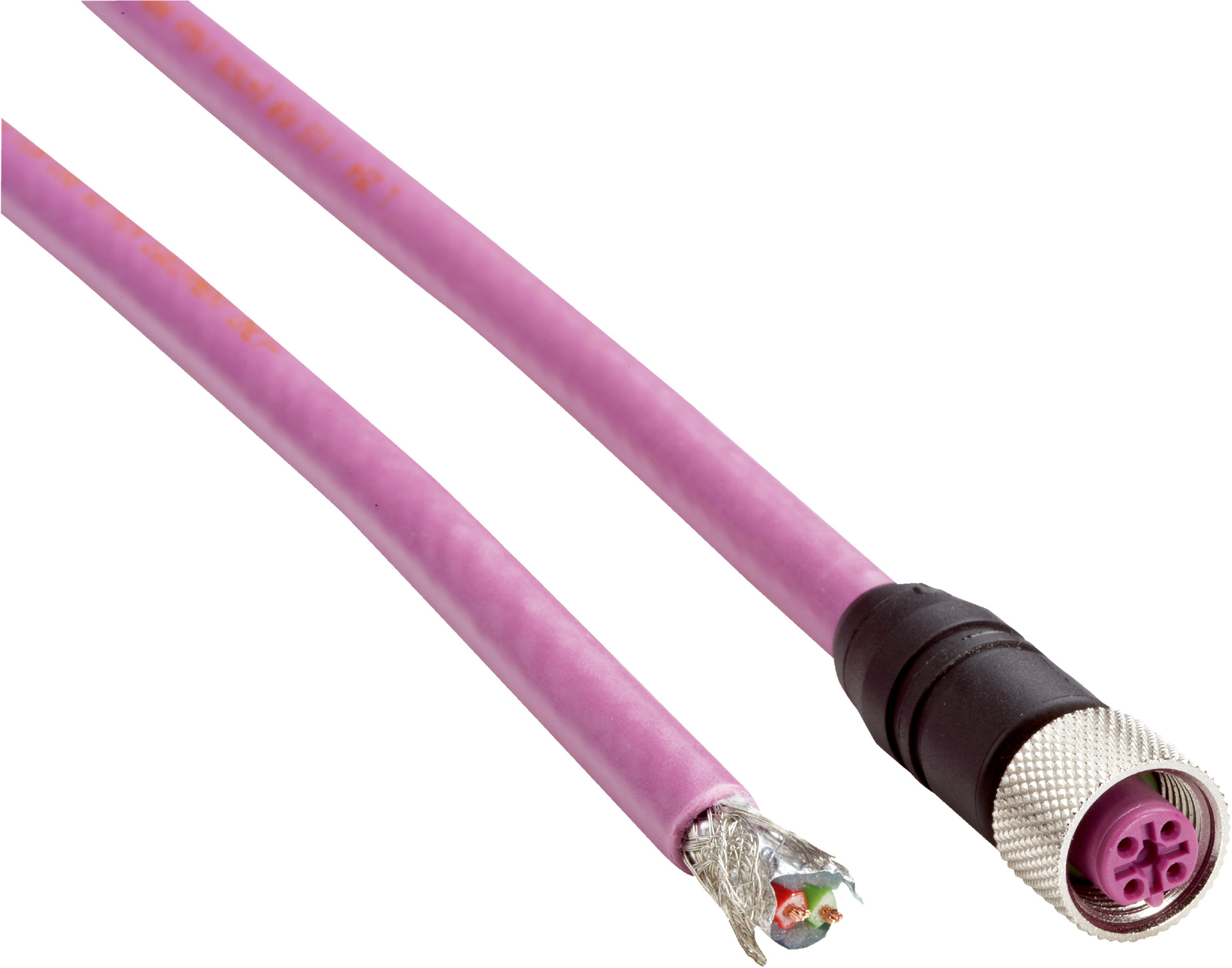

M12 5-Pin PROFIBUS DP Cable | 50m Halogen-Free PUR | IP67 Rated | by SICK
The M12 5-Pin PROFIBUS DP cable is designed for industrial automation, featuring a 50m halogen-free PUR construction and IP67 rating for dust and water protection. Ideal for harsh environments, this cable ensures reliable signal integrity with its shielded twisted pair design, making it perfect for fieldbus communication networks and applications in zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.5 Nm
- Cable length: 50 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.6 mm
- Conductor cross section: 2 x 0.34 mm²
- Shielding: Shielded twisted pair
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 1,000,000
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Enclosure rating: IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Head temperature range: -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 50000mm x 10mm
- Weight: 0.5 kg
Key Features
- Female M12, 5-pin, straight, B-coded connector
- 50 m PUR halogen-free cable with violet jacket
- Shielded twisted pair cable for signal integrity
- High bending radius for flexible and stationary use
- IP67 rated for protection against dust and water
- Operating temperature range from -50°C to +85°C depending on use
- Rated impulse voltage of 1.5 kV and current loading of 4 A
- Designed for drag chain operation and harsh environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus and PROFIBUS DP communication networks
- Zones with oils and lubricants requiring durable cabling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR cable reduces toxic emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-1205-G50MQ industrial cable is available for immediate purchase, ideal for industrial automation and communication applications requiring durable and reliable cabling.
