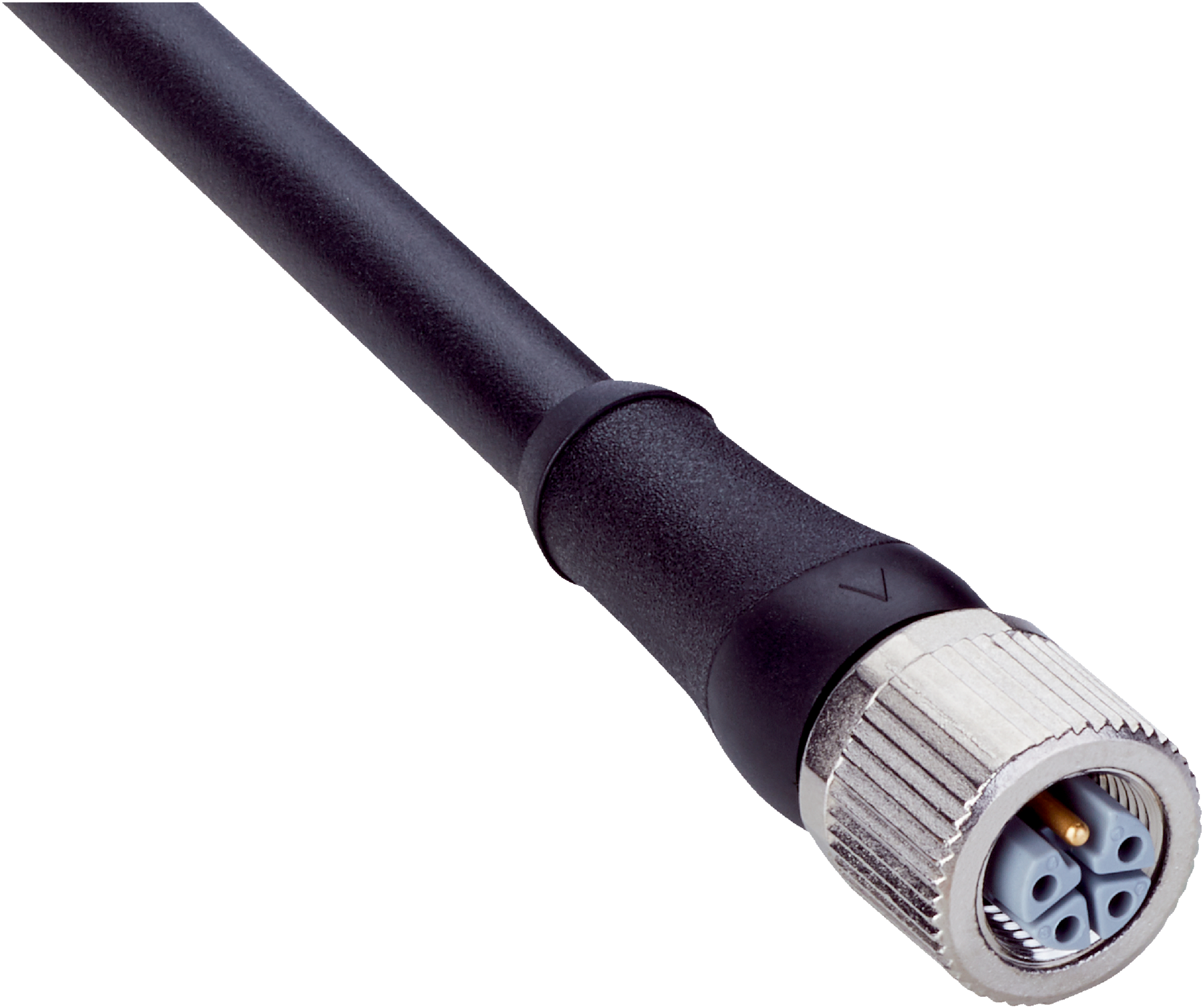

M12 5-Pin Sensor Actuator Cable | 20m Length | Halogen-Free PUR | IP65/IP67 Rated | by SICK
The M12 5-Pin Sensor Actuator Cable is designed for reliable connections in industrial automation and robotics. With a robust 20m length and halogen-free PUR jacket, it ensures safety and flexibility in drag chain operations. Rated IP65/IP67 for dust and water protection, this cable withstands extreme temperatures from -50 °C to +85 °C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 5-pin, actuator cable PUR 5x1.5mm², industrial sensor cable, drag chain cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, L-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 20 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 8.2 mm
- Conductor cross section: 1.5 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 10 x cable diameter
- Temperature range: Flexible use -25 °C to +80 °C, Stationary position -50 °C to +80 °C, Drag chain operation -20 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 5,000,000
- Nominal voltage: 1,000 V AC
- Test voltage: 10,000 V AC
- Reference voltage: 63 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 12 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 20000mm x 17mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 5-pin, straight, L-coded
- Flying leads with screw connection locking plug
- Cable: 20 m, 5-wire, PUR, halogen-free
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -50 °C to +85 °C depending on use
- Enclosure rating IP65/IP67 for protection against dust and water
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Nominal voltage 1,000 V AC and test voltage 10,000 V AC
- Current loading capacity of 12 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

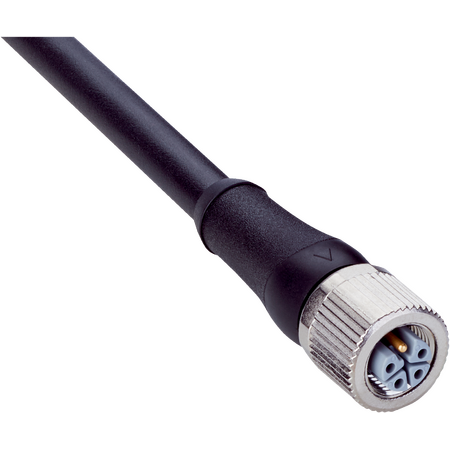

The SICK YF2L15-200UH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
