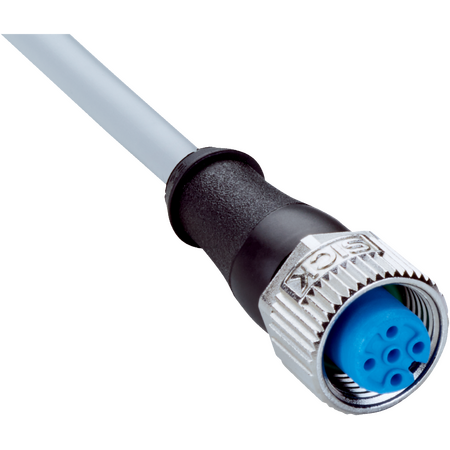

M12 5-Pin Sensor Actuator Cable | IP65/IP66K/IP67 Rated | TPU & PVC Jacket | by SICK
The M12 5-Pin Sensor Actuator Cable is designed for reliable connections in industrial environments, featuring a female connector, screw connection locking plug, and durable TPU and PVC materials. With an IP65/IP66K/IP67 protection rating, it's perfect for sensor and actuator applications in uncontaminated and chemically exposed zones, ensuring safety and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 5-pin, Actuator cable PVC 5x0.34, Industrial sensor cable, M12 connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable wires: 5-wire, PVC jacket
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 125 V AC / 125 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, straight, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacket with gray color
- Unshielded 5-wire cable with 0.34 mm² conductor cross section
- High protection rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC and TPU materials extend product life reducing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies.
Available Now
The SICK YF2A15-050VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in uncontaminated and chemical zones.
