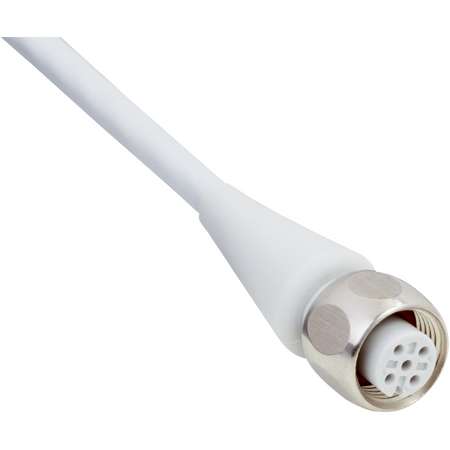

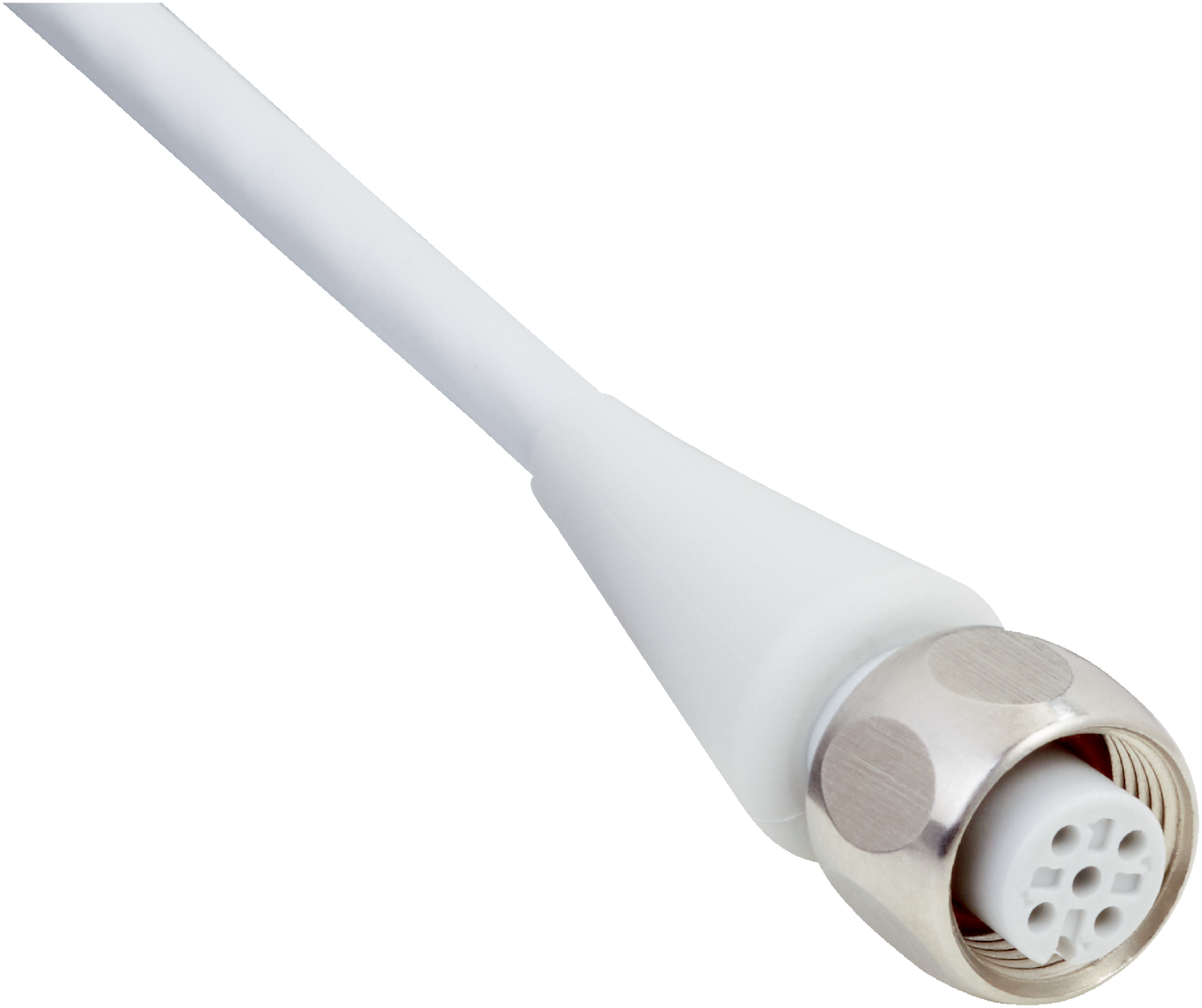

M12 5-Pin Sensor/Actuator Cable | IP67/IP69K Rated | 10m Length | Chemical Resistant | by SICK
The M12 5-Pin Sensor/Actuator Cable is designed for industrial automation, featuring a durable 10m length and IP67/IP69K enclosure rating. Ideal for hygienic and washdown zones, this cable withstands extreme temperatures from -25 °C to +105 °C and is resistant to chemical cleaning agents, ensuring longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 female 5-pin, actuator cable with flying leads, industrial sensor cable, IP69K sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable length: 10 m
- Cable type: 5-wire, PP jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Tightening torque: 1 Nm
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: -25 °C to +105 °C (flexible), -40 °C to +105 °C (stationary)
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per meter
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 10mm x 10000mm x 14mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 5-pin, straight
- Flying leads connection
- Connector material: PP with stainless steel locking nut
- Cable length: 10 m, 5-wire, PP jacket
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Bending radius suitable for flexible and stationary use
- Torsion force: 180° per meter
- Enclosure rating: IP67 / IP69K
- Chemical resistant including lactic acid and hydrogen peroxide
- High bending cycle durability (≥ 4,000,000 cycles)
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Resistant to chemical cleaning agents reducing need for frequent replacements
- Durable design minimizes waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1205-G10MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation and hygienic environment applications.
