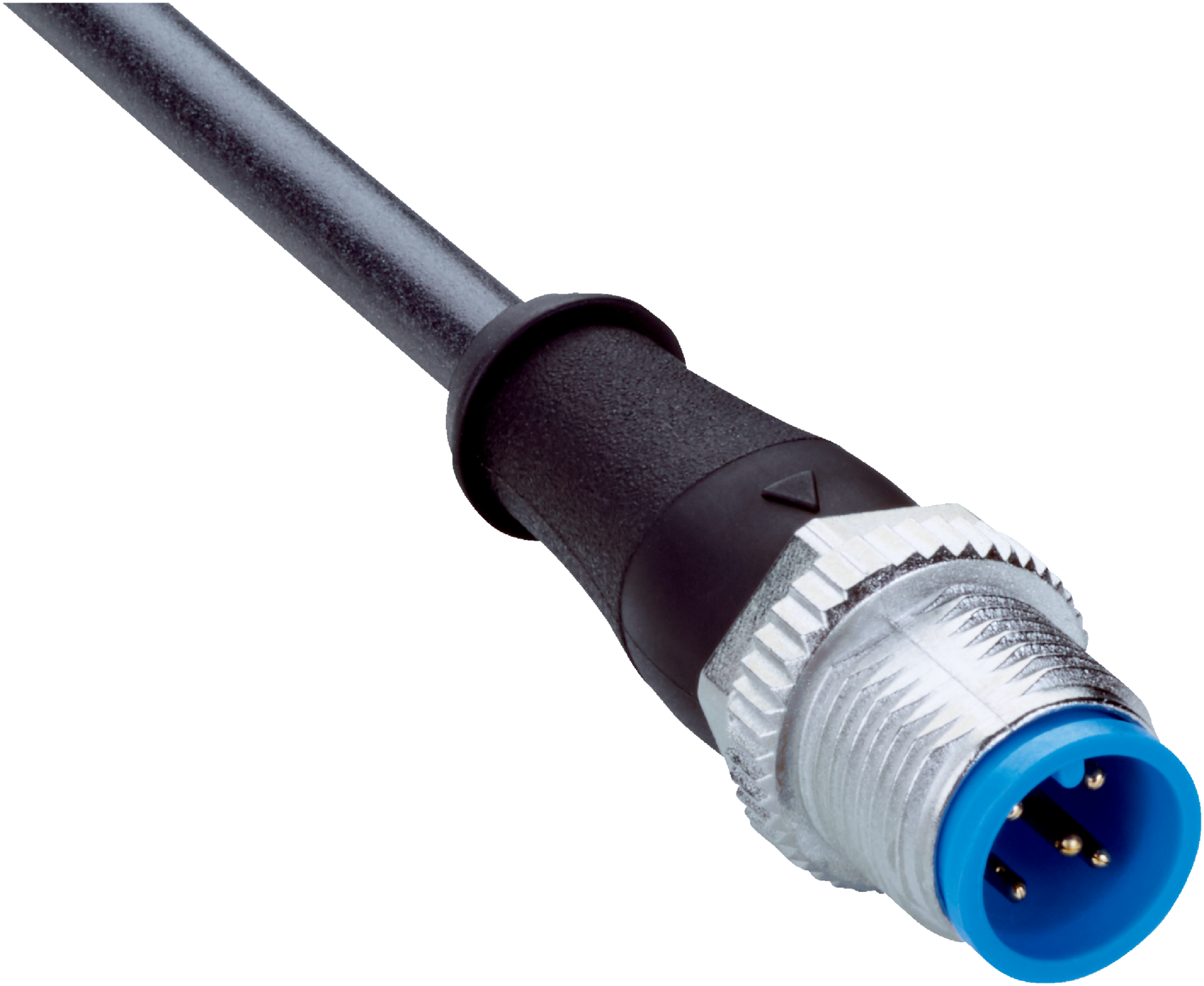

M12 5-Pin Sensor Cable | 10m Length | Halogen-Free PUR Jacket | IP65/IP66K/IP67 Rated | by SICK
The M12 5-Pin Sensor Cable is designed for reliable connections in industrial automation and robotics. With a 10m length and halogen-free PUR jacket, it withstands extreme temperatures from -40 °C to +85 °C. Ideal for drag chain operations, this shielded cable offers 5,000,000 bending cycles and is rated IP65/IP66K/IP67, ensuring durability and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 5-pin, Actuator cable PUR halogen-free, Drag chain cable SICK YM2A25
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads with screw connection
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 10 m length, 5-wire, PUR halogen-free jacket
- Cable diameter: 5.6 mm, conductor cross section 5 x 0.34 mm²
- Shielding: Shielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary > 5 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC, Test voltage: 2000 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 30° per meter, Torsion cycles: 2,000,000
- Bending cycles: 5,000,000
- Overvoltage category: III
- Insulation resistance: 100 MΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 5-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable length 10 m, 5-wire, PUR, halogen-free
- Shielded cable with 5,000,000 bending cycles
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67
- Torsion force 30° / 1 m with 2,000,000 torsion cycles
- Nominal voltage 300 V AC, current loading 4 A
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Flame retardant properties enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

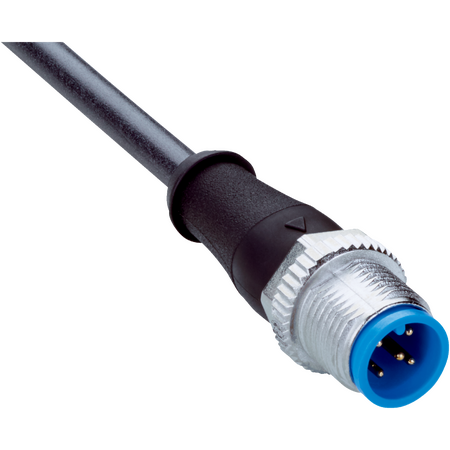

The SICK YM2A25-100UB6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
