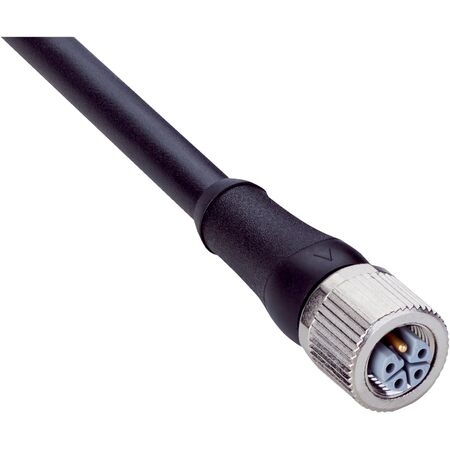

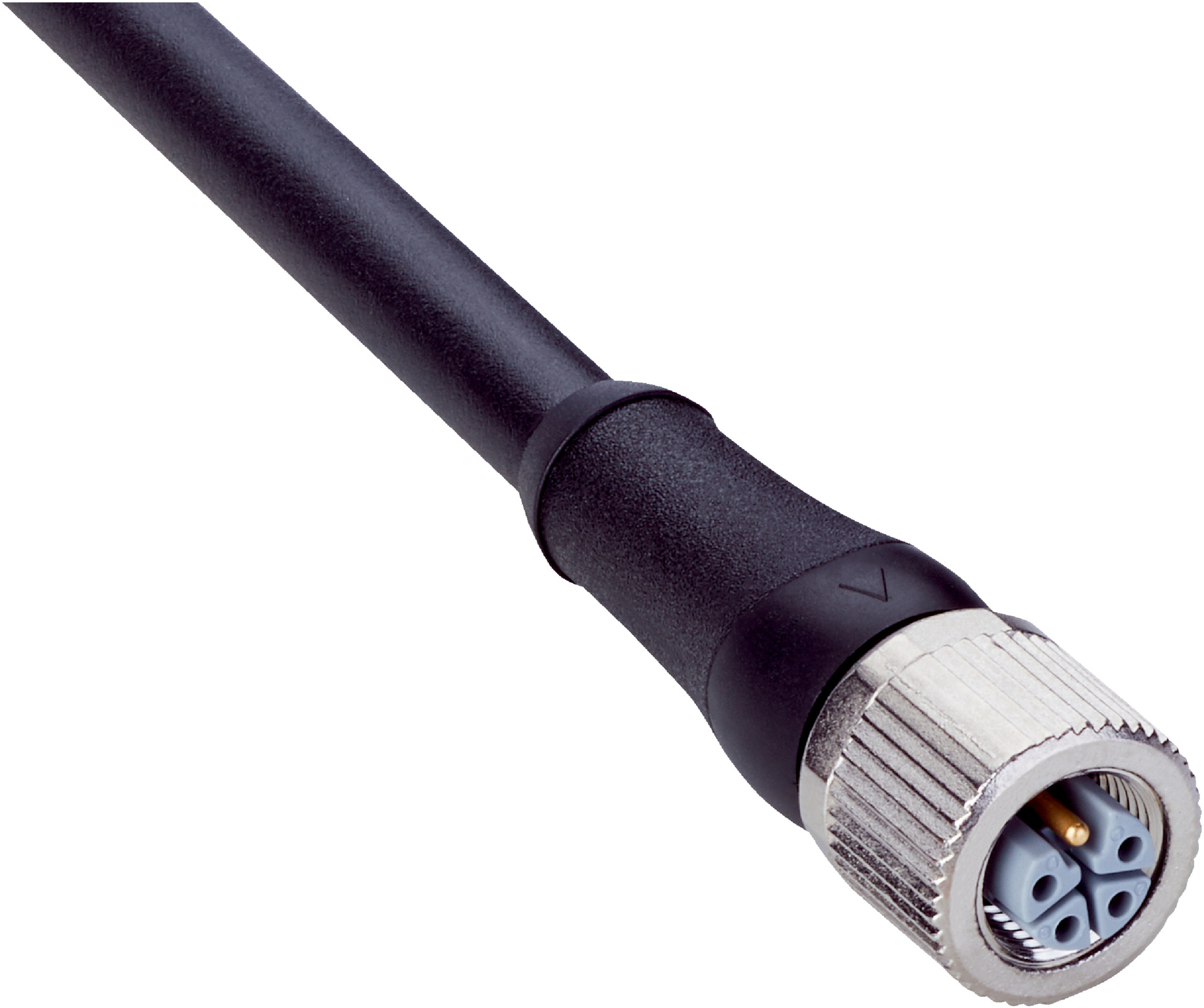

M12 5-Pin Sensor Cable | 20m PUR Halogen-Free | IP65/IP67 Rated | by SICK
The M12 5-Pin Sensor Cable is designed for robust industrial applications, featuring a 20m halogen-free PUR cable that withstands extreme temperatures from -50 °C to +85 °C. With an IP65/IP67 enclosure rating, it's perfect for environments with dust and moisture, making it ideal for robotics and drag chain operations. The cable's high torsion resistance ensures durability, while the flexible design accommodates various installation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, L-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 20 m, 5-wire, PUR, halogen-free
- Cable diameter: 8.2 mm
- Conductor cross section: 1.5 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage, cable: 1,000 V AC
- Test voltage, cable: 10,000 V AC
- Reference voltage: 63 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 12 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Enclosure rating: IP65/IP67
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –50 °C to +80 °C, Drag chain operation –20 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 8mm x 20000mm x 17mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 5-pin, straight, L-coded
- Flying leads with screw connection locking plug
- Cable length 20 m, 5-wire, PUR, halogen-free
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -50 °C to +85 °C depending on use
- Enclosure rating IP65/IP67 for protection against dust and water
- High torsion resistance with 2,000,000 torsion cycles
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards to ensure proper connection and compliance with IP ratings.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2L15-200UH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications requiring durable and flexible cabling.
