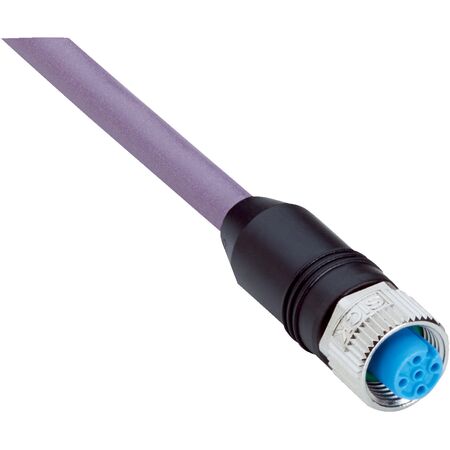

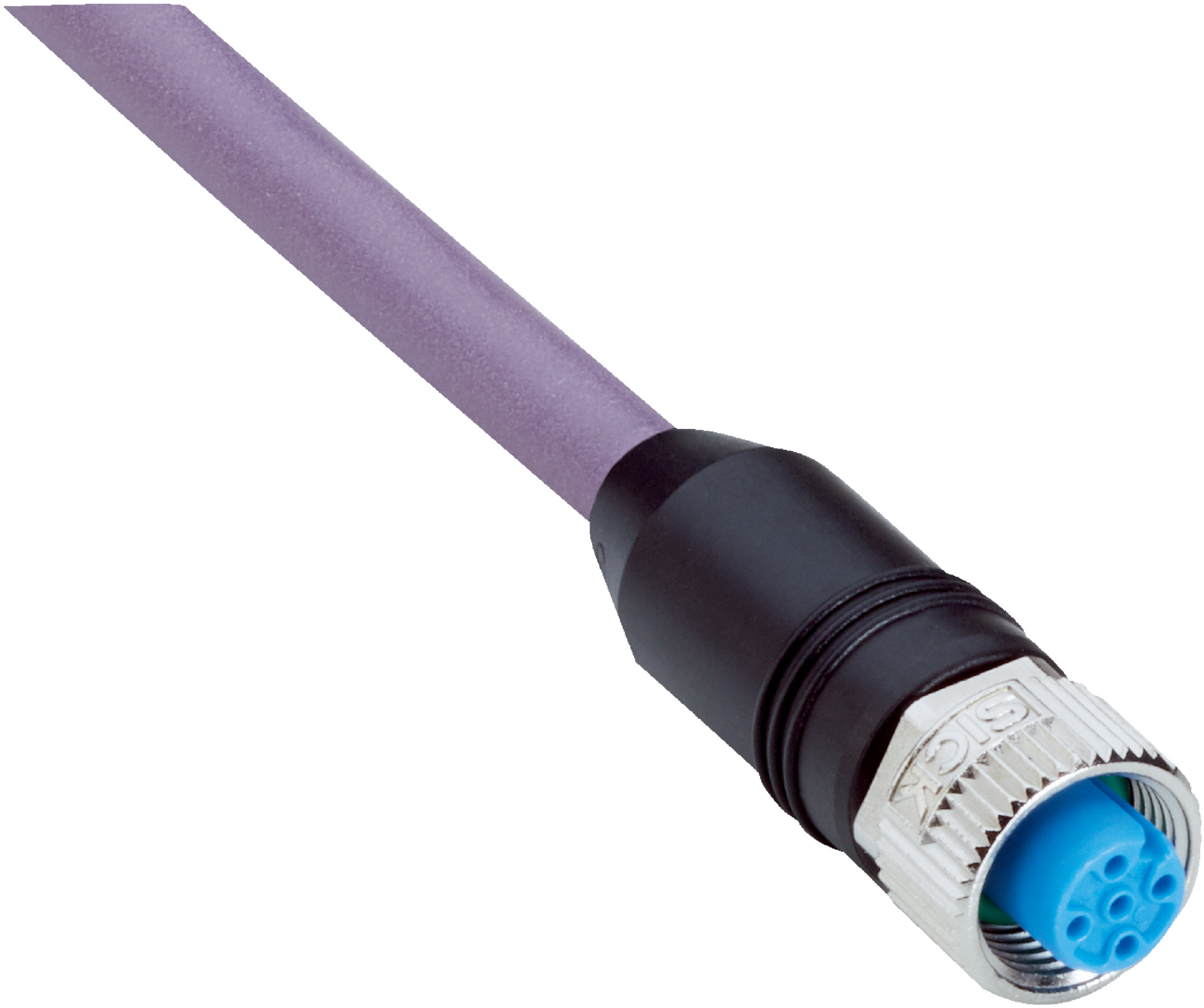

M12 5-Pin Shielded Cable | 10m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 5-Pin Shielded Cable is designed for robust industrial communication, featuring a 10m PUR halogen-free cable with a violet jacket. Ideal for drag chain operations and fieldbus communication systems like CANopen and DeviceNet™, this cable ensures reliable performance in harsh environments with an IP65/IP66K/IP67 rating and a wide operating temperature range from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Jacket color: Violet
- Cable diameter: 6.9 mm
- Conductor cross section: 0.25 mm² + 0.35 mm² + 1 x drain wire
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 6 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance, piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female M12, 5-pin, straight, A-coded connector
- Shielded 10 m PUR halogen-free cable with violet jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Screw connection locking plug with zinc die-cast nickel-plated nut
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
- Supports signal types Fieldbus, CANopen, DeviceNet™
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems including CANopen and DeviceNet™
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-100C1BXLEAX shielded cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable fieldbus communication.
