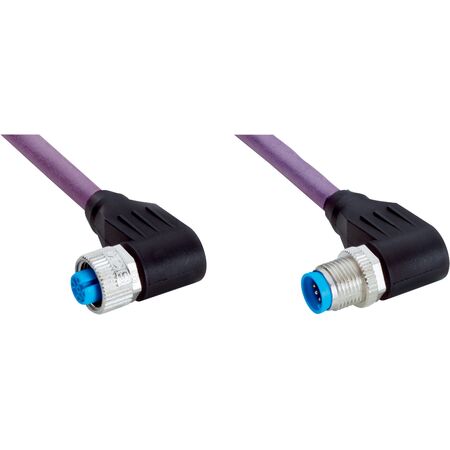

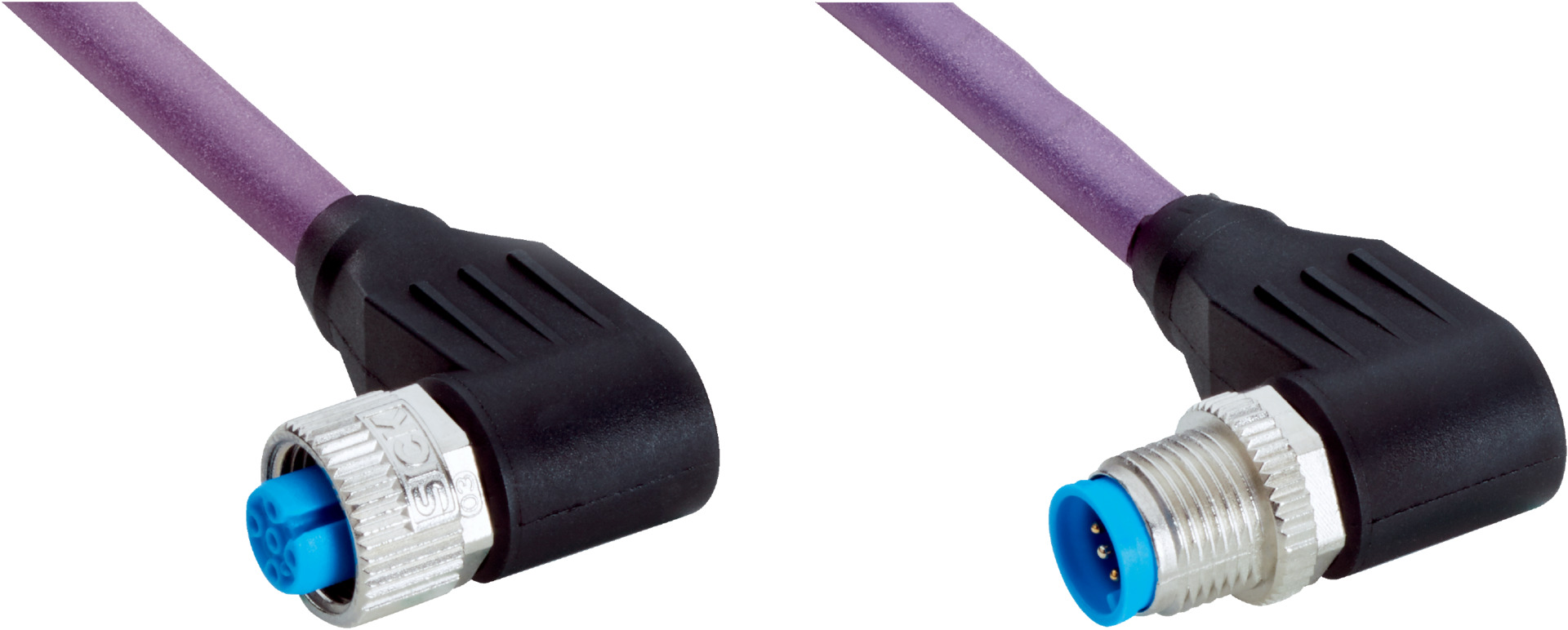

M12 5-Pin Shielded Cable Assembly | Angled Connectors | Halogen-Free PUR | IP65/IP66/IP67 Rated | by SICK
The M12 5-Pin Shielded Cable Assembly is designed for robust industrial automation and control systems. Featuring angled connectors and a halogen-free PUR jacket, this cable ensures secure connections and compliance with safety standards. With an IP65/IP66/IP67 rating, it provides excellent protection against dust and water, making it ideal for Fieldbus communication networks like CANopen and DeviceNet™.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 60 V DC
- Traversing speed: 5 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 3 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.15 kg
Key Features
- Shielded M12 connectors with 5 pins, angled and A-coded for secure connections
- Cable jacket made of halogen-free PUR material, violet color
- Flame-resistant and self-extinguishing cable complying with UL 1581 and IEC 60332-1-2
- High bending radius suitable for flexible use and stationary installation
- Operating temperature range from -40°C to +85°C depending on use
- Enclosure rating IP65 / IP66 / IP67 for protection against dust and water
- Supports signal transmission for Fieldbus, CANopen, and DeviceNet™ protocols
- UL File No. E335179 and multiple international conformity certificates
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication cabling standards to ensure proper connection and compliance with safety regulations.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Machine and plant engineering requiring robust, shielded cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame-resistant and self-extinguishing properties enhance safety
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A15-030C1BN2A15 shielded M12 5-pin cable assembly is available for immediate purchase, ideal for industrial automation and communication network applications.
