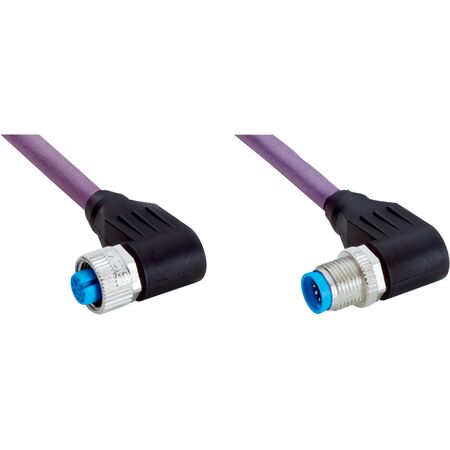

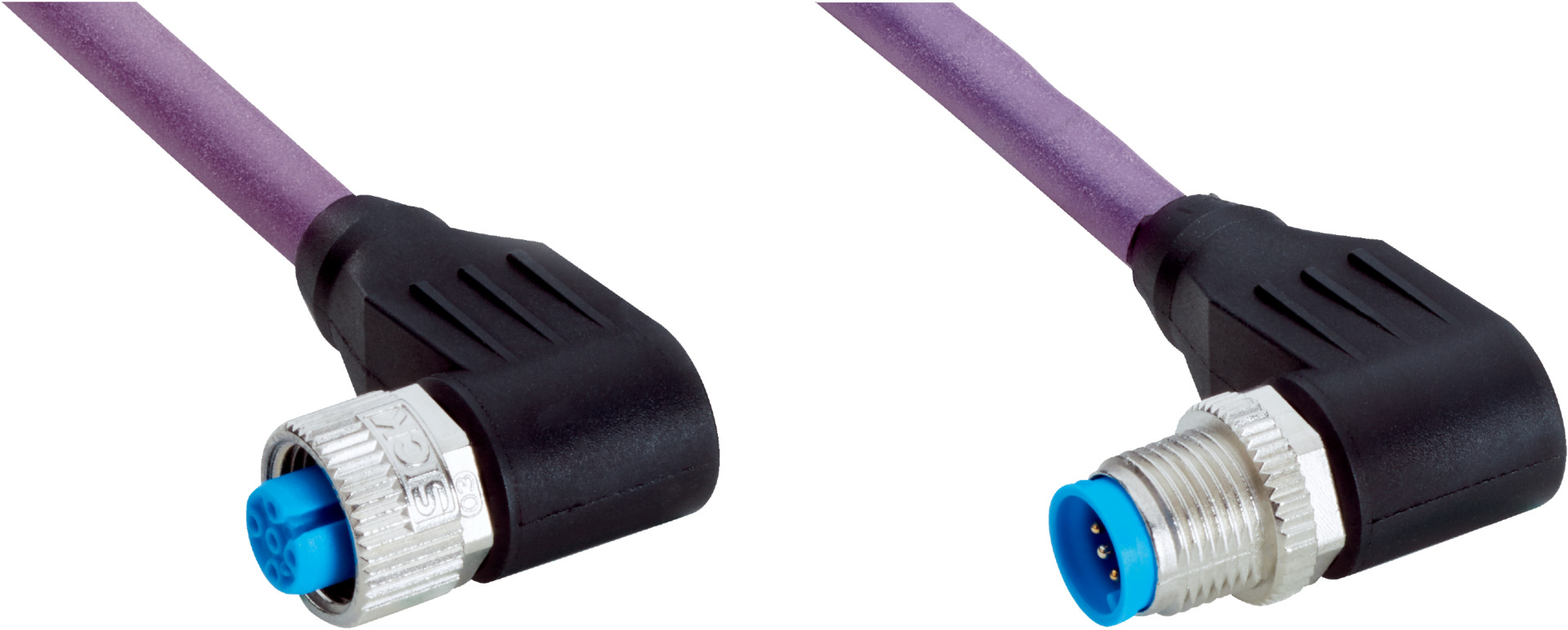

M12 5-Pin Shielded Cable Assembly | IP65/IP66/IP67 Rated | Durable PUR Jacket | by SICK
The M12 5-pin shielded cable assembly is designed for robust industrial automation and fieldbus communication. Featuring angled female and male connectors, this cable is IP65/IP66/IP67 rated for dust and water protection, ensuring reliable performance in harsh environments. Built with a halogen-free PUR jacket, it offers durability and safety, making it ideal for machine and plant engineering applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Tightening torque: 0.6 Nm
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Reference voltage: 60 V DC
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66 / IP67
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Bending cycles: ≤ 1,000,000
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 5-pin angled connectors with A-coding
- Shielded cable with PUR halogen-free jacket for durability and safety
- Flame-resistant and self-extinguishing materials
- High bending radius and bending cycle resistance for flexible and stationary use
- IP65 / IP66 / IP67 rated for protection against dust and water ingress
- Suitable for operating temperatures from -40°C to +85°C depending on use
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Machine and plant engineering requiring robust, shielded cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame-resistant and self-extinguishing materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A15-050C1BN2A15 M12 5-pin shielded cable assembly is available for immediate purchase, ideal for industrial automation and fieldbus communication applications.
