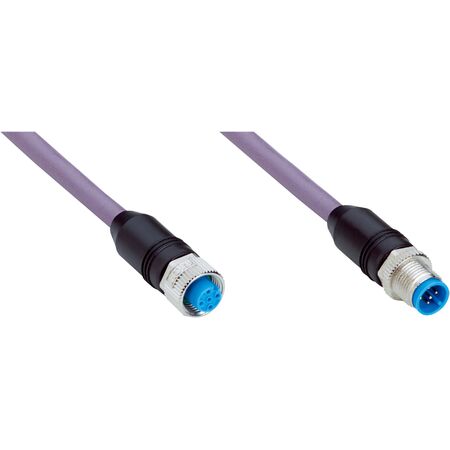

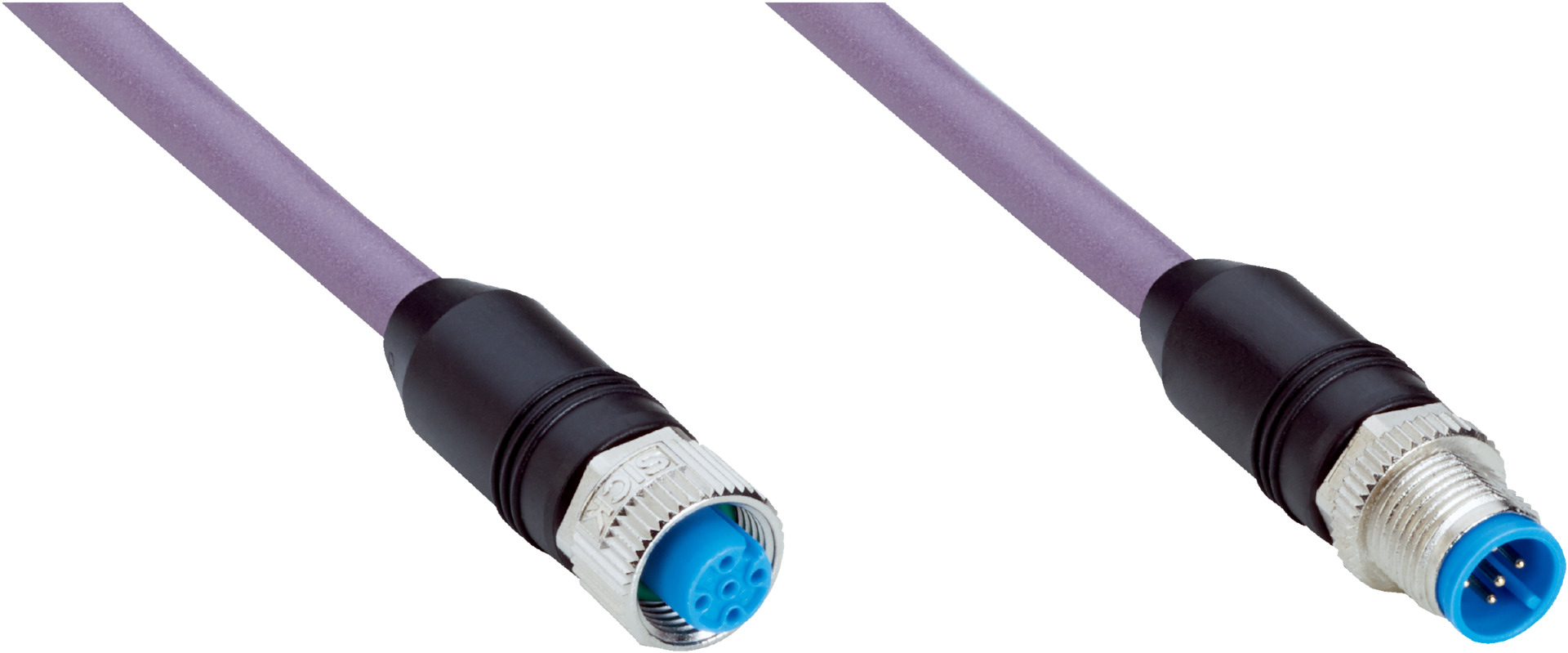

M12 5-Pin Shielded Cable Assembly | TPU Material | IP65/IP66K/IP67 Rated | by SICK
The M12 5-pin shielded cable assembly is designed for reliable connectivity in industrial automation and drag chain applications. Featuring a durable TPU construction and IP65/IP66K/IP67 enclosure rating, this cable ensures optimal performance in challenging environments. Ideal for zones with oils and lubricants, it supports Fieldbus, CANopen, and DeviceNet™ signal types, making it a versatile choice for your connectivity needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 0.25 mm² + 0.35 mm² + 1 drain wire
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 6 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 5 m PUR halogen-free cable, violet jacket
- Shielded cable with 0.25 mm² + 0.35 mm² + 1 drain wire conductor cross section
- Bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
- Supports Fieldbus, CANopen, DeviceNet™ signal types
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-050C1BM2A15 M12 5-pin shielded cable assembly is available for immediate purchase. Ideal for industrial automation and drag chain applications requiring durable and reliable connectivity.
