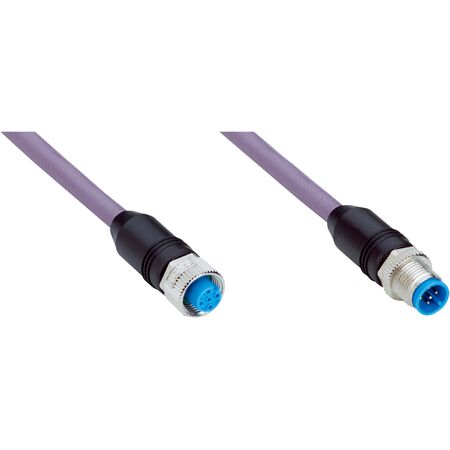

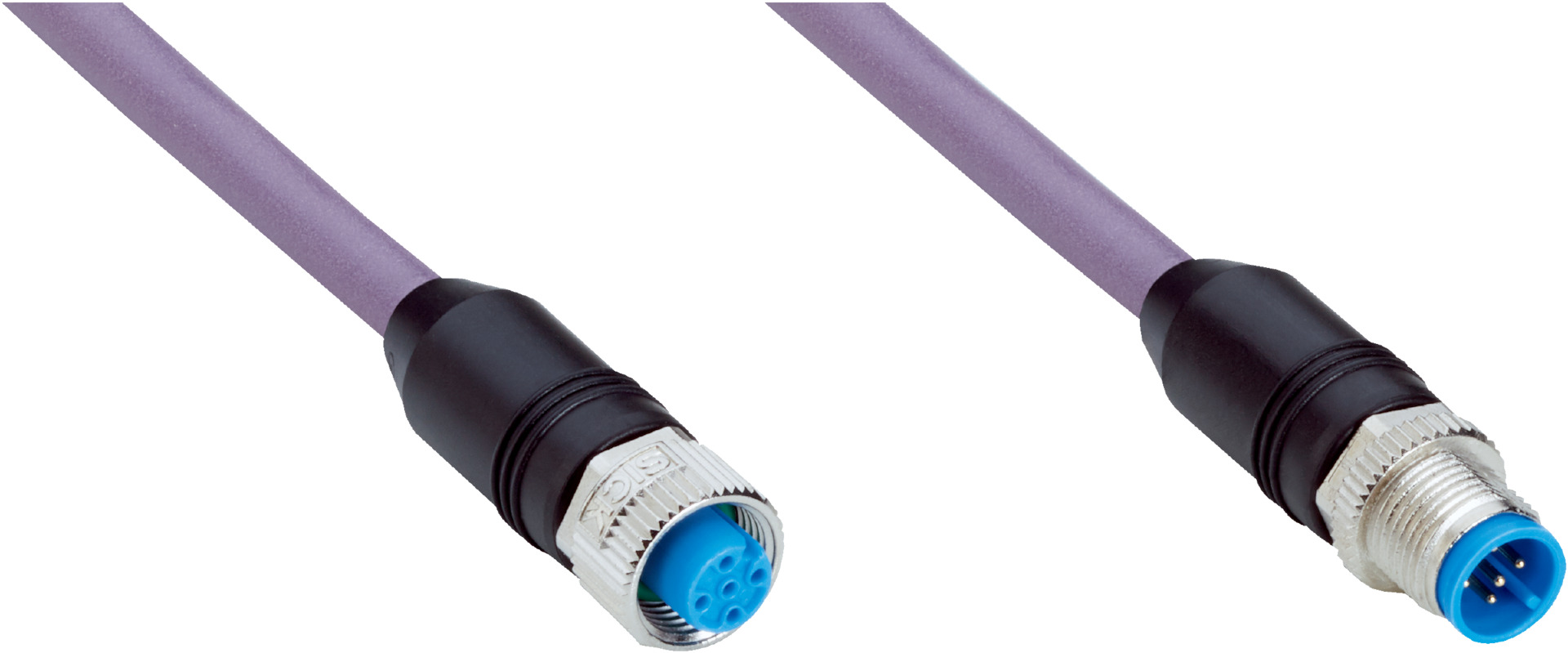

M12 5-Pin Shielded Cable Connector | Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The M12 5-pin shielded cable connector is designed for robust industrial applications, featuring female and male connectors with screw locking for secure connections. Ideal for drag chain operations and fieldbus communication systems, this connector supports a wide operating temperature range and is built to withstand harsh environments, ensuring reliable performance in automation setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 0.25 mm² + 0.35 mm² + 1 x drain wire
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 6 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Bending cycles: 1,000,000
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 1000mm x 13mm
- Weight: 0.1 kg
