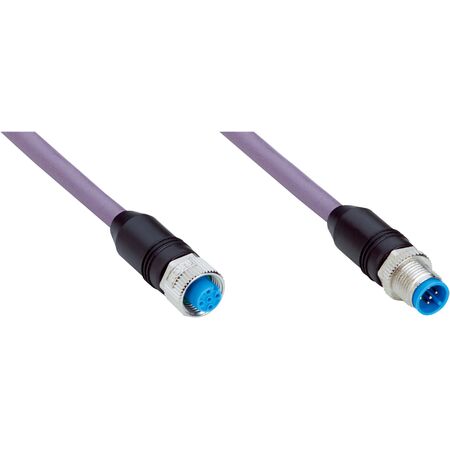

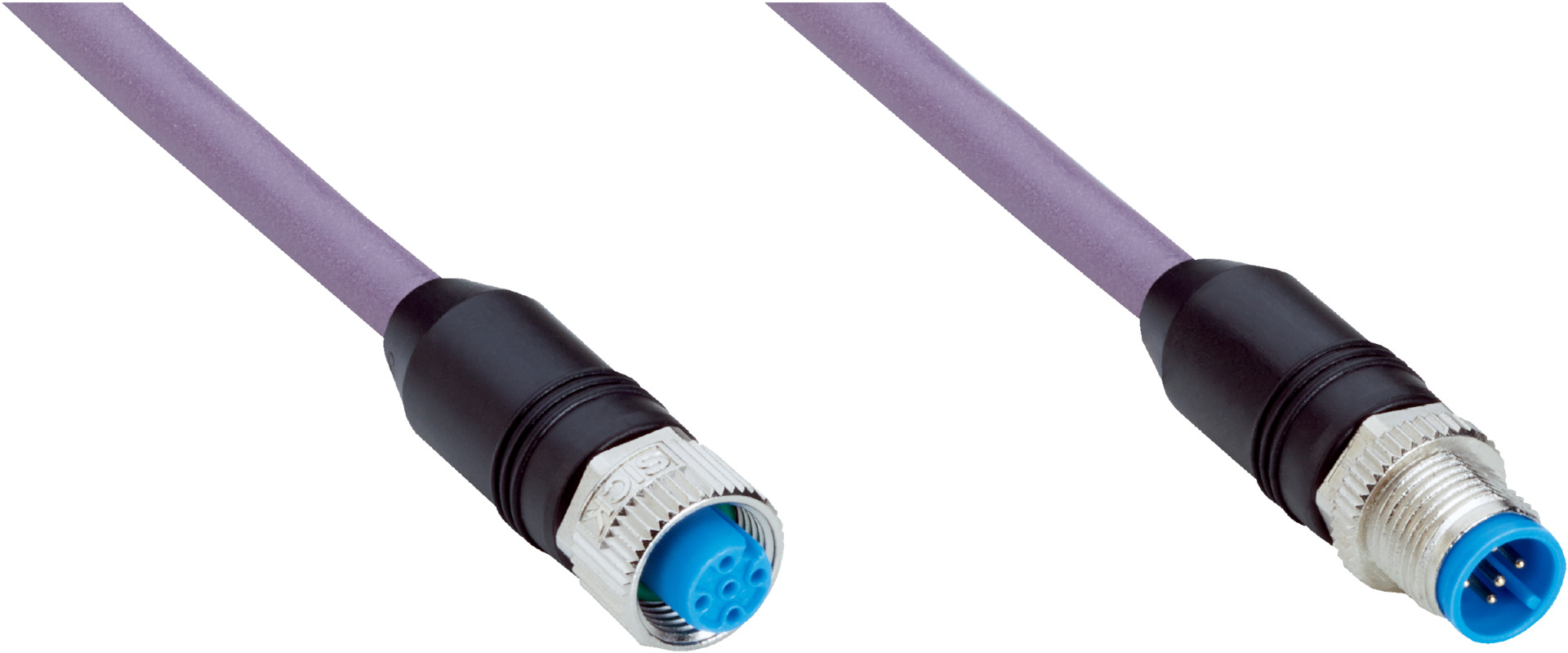

M12 5-Pin Shielded Cable Connector | PUR Halogen-Free Jacket | IP65/IP66K/IP67 Rated | by SICK
The M12 5-pin shielded cable connector is designed for robust industrial applications, featuring a durable PUR halogen-free jacket and IP65/IP66K/IP67 environmental protection. Ideal for drag chain operations and fieldbus communication systems, this connector ensures secure connections with its screw locking mechanism and high bending cycle resistance, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 0.25 mm² + 0.35 mm² + 1 x drain wire
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -30°C to +70°C, Stationary -40°C to +80°C, Drag chain -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Shielded cable with PUR halogen-free jacket for durability
- M12 5-pin connectors with screw locking for secure connections
- High bending cycle resistance up to 1,000,000 cycles
- Wide operating temperature range from -40°C to +85°C
- IP65 / IP66K / IP67 rated for robust environmental protection
- Supports current loading of 4 A and nominal voltage of 300 V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems including CANopen and DeviceNet™
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-C60C1BM2A15 shielded M12 5-pin cable connector is available for immediate purchase, ideal for industrial automation and drag chain applications.
