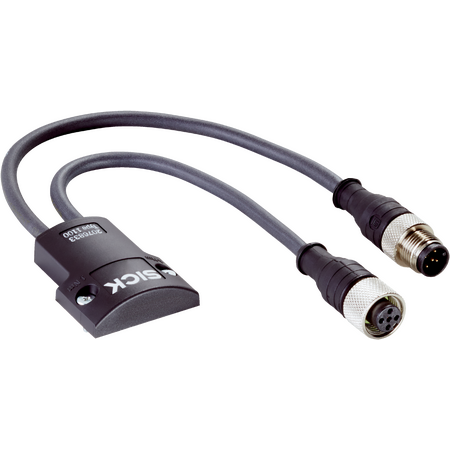

M12 5-Pin System Plug SP1 | Female Connector | IO-Link Compatible | by SICK
The M12 5-Pin System Plug SP1 is designed for seamless industrial automation and sensor system connections. Featuring a female connector and IO-Link capability, this extension plug ensures reliable performance in various applications, including protective field width calibration. Built for durability and compliance with safety standards, it's ideal for qualified technicians and electricians looking to enhance system diagnostics and minimize downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 5-pin system plug, SP1 system connector, SICK M12 extension plug
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Cable length: 150 mm
- Cable diameter: 5 mm
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- System connection: Plug, M12, 5-pin
- Extension connection: Female connector M12, 5-pin
- IO-Link possible on the extension connection
- Protective operation with automatic calibration
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading capability
- Configuration via DIP switch
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and sensor system connections
- Protective field width calibration and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Supports efficient system diagnostics to minimize downtime and energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP1, M12-5 W.EXTENSION is available for immediate purchase, ideal for industrial automation and sensor system integration.
