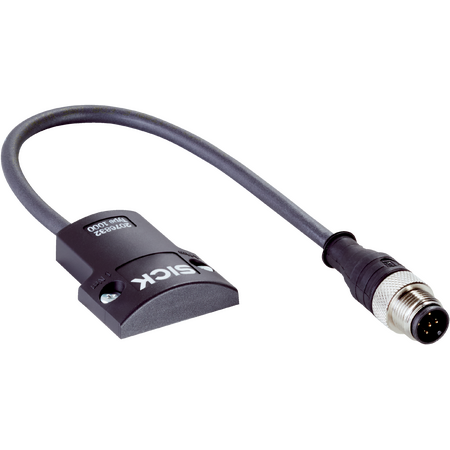

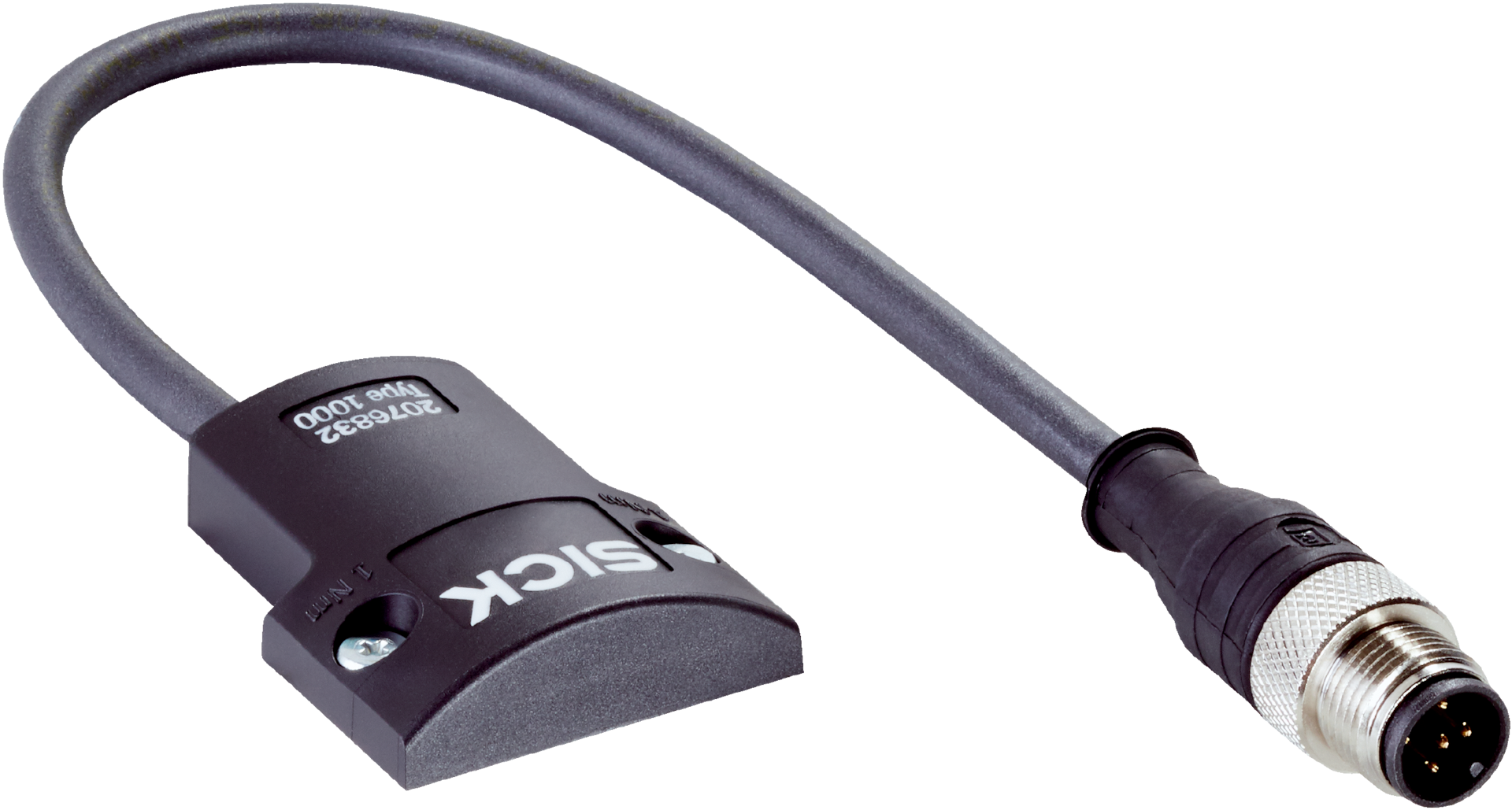

M12 5-Pin System Plug SP1 | No Extension Required | DIP Switch Configuration | by SICK

BRAND: SICK
SKU: 2076832
$226.10 List price: $284.20
+ −
30 Days Return Electricians Unlock Trade Access
The M12 5-Pin System Plug SP1 is designed for seamless connections in industrial automation and sensor systems. With no extension required and easy configuration via DIP switch, this plug ensures reliable performance in various applications. Ideal for use with deTec4 and deTem4 devices, it operates at a supply voltage of 24 V DC, making it a perfect choice for safety systems requiring protective field width calibration.

Alternatively Known As: M12 5-pin system plug, SP1 system connector, SICK M12 plug

Technical Specifications
  • System connection: Plug, M12, 5-pin
  • Length of cable: 200 mm
  • Cable diameter: 5 mm
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 V to 28.8 V)
  • Ripple: ≤ 10%
  • Ambient operating temperature: –30 °C to +55 °C
  • Storage temperature: –30 °C to +70 °C
  • Air humidity: 15% to 95%, non-condensing
  • Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
  • Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
  • Configuration method: DIP switch
  • Dimensions (H x L x W): 20mm x 50mm x 20mm
  • Weight: 0.1 kg
Key Features
  • System connection: Plug, M12, 5-pin
  • No extension connection required
  • Configuration via DIP switch
  • Protective operation enabled
  • Automatic calibration of protective field width
  • Supply voltage: 24 V DC (19.2 V to 28.8 V)
  • Ripple ≤ 10%
  • Protection class III (IEC 61140)
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Compatible with deTec4, deTem4, deTem4 A/P devices
  • Industrial automation and sensor system connections
  • Protective field width calibration in safety systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Supports efficient and reliable industrial automation, reducing energy waste
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.

Available Now

The SICK SYSTEM PLUG SP1 M12-5 Without Extension is available for immediate purchase, ideal for industrial automation and sensor system applications.
