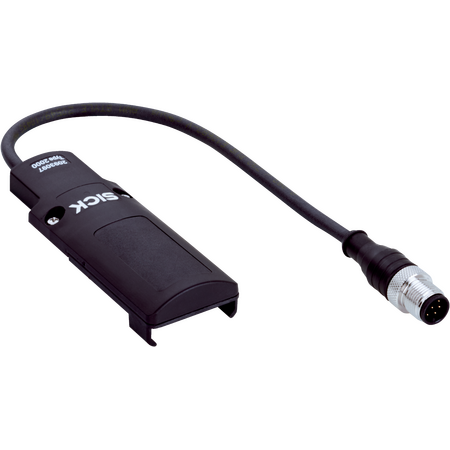

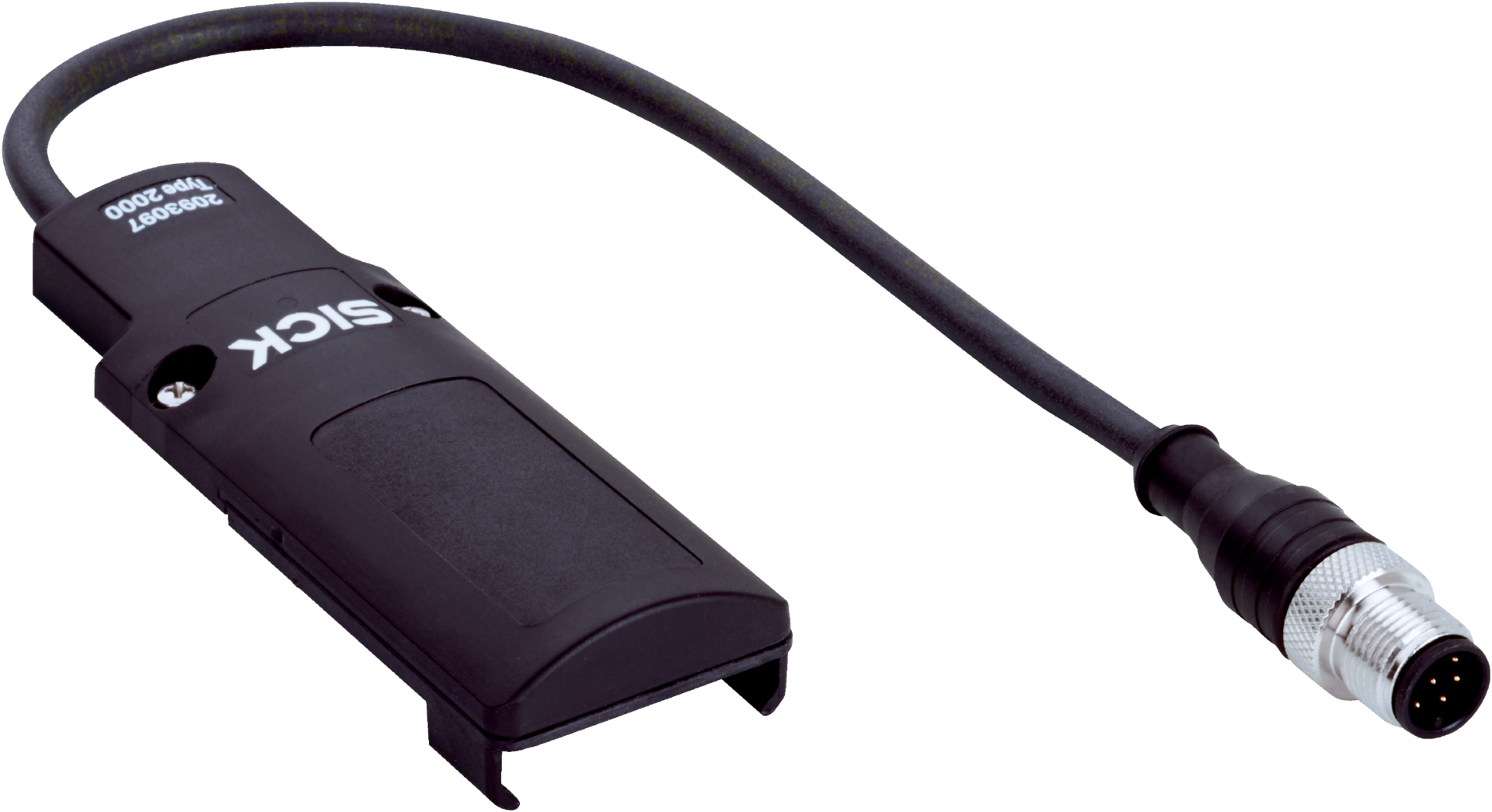

M12 5-Pin System Plug SP2 | 24V DC Supply Voltage | DIP Switch Configuration | by SICK
The M12 5-Pin System Plug SP2 is designed for reliable connections in industrial automation and sensor systems. With a 24V DC supply voltage and DIP switch configuration, it ensures seamless integration with deTec4 and deTem4 devices. Built for durability and efficiency, this plug minimizes downtime and supports dynamic protective field width during operation, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 5-pin system plug, SP2 system connector, SICK M12 plug
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Cable length: 200 mm
- Cable diameter: 5 mm
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Configuration method: DIP switch
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P
- System connection: Plug, M12, 5-pin
- No extension connection
- Configuration via DIP switch
- Protective operation with automatic calibration of protective field width
- Dynamic protective field width during operation
- Sender with reduced scanning range
- Differentiation between person and material with Smart Box Detection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and sensor systems requiring M12 5-pin connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient and reliable sensor connections reducing system downtime and waste
- Durable design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP2 M12-5 Without Extension is available for immediate purchase, ideal for industrial sensor system connections and automation applications.
