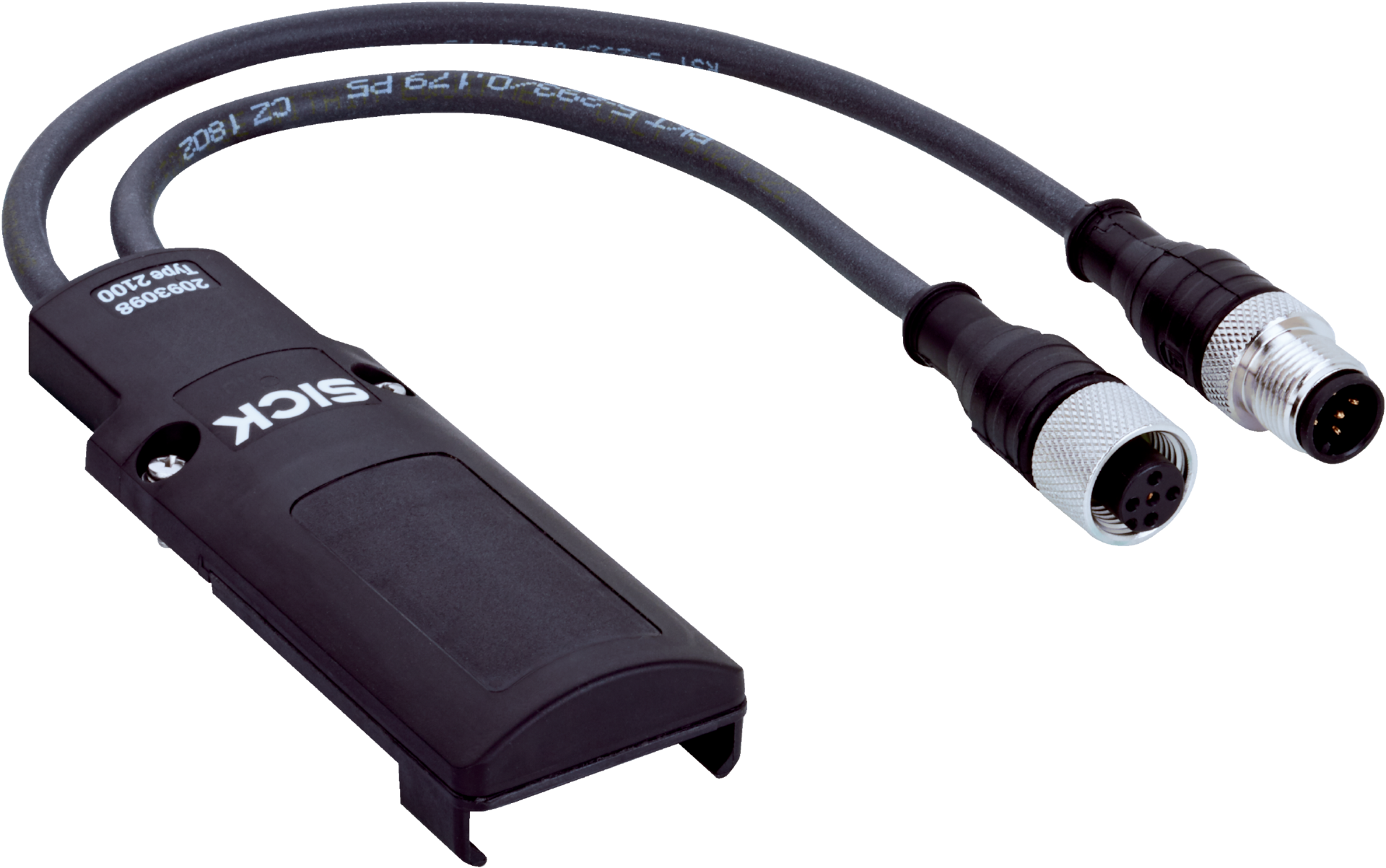

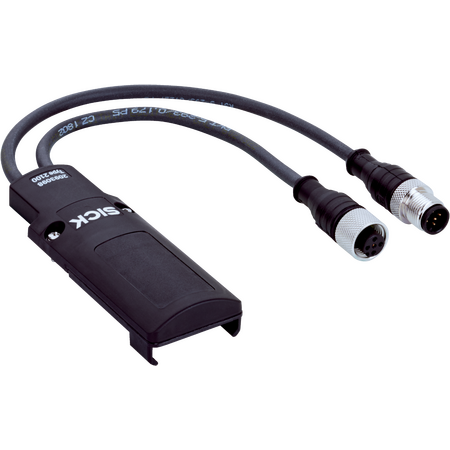

M12 5-Pin System Plug SP2 | Extension Connection | IO-Link Compatible | by SICK
The M12 5-Pin System Plug SP2 is designed for seamless integration in industrial automation and sensor systems. With a robust extension connection and IO-Link capability, it ensures reliable communication and dynamic protective field width during operation. Ideal for applications requiring M12 connections, this plug is built for durability and efficiency, reducing downtime and electronic waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 5-pin system plug, SP2 system connector, SICK M12 extension plug
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Cable length: 150 mm
- Cable diameter: 5 mm
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- System connection: Plug, M12, 5-pin
- Extension connection: Female connector M12, 5-pin
- IO-Link possible on the extension connection
- Configuration via DIP switch
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading capability
- Smart presence detection and 2-signal muting
- Smart Box Detection and differentiation between person and material
- Dynamic protective field width during operation
- Sender with reduced scanning range
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and sensor systems requiring M12 5-pin connections
- Systems needing IO-Link communication on extension connections
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Enables efficient device communication reducing downtime and waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP2 M12-5 with Extension is available for immediate purchase, ideal for industrial automation and sensor system applications.
