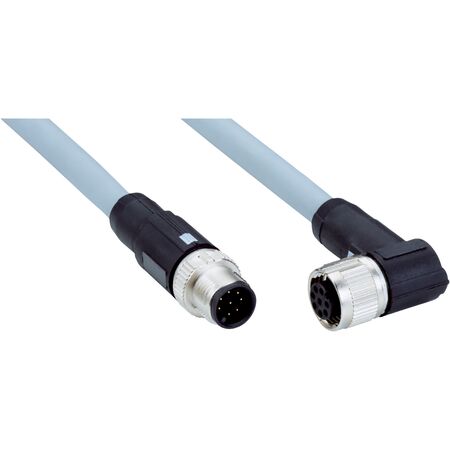

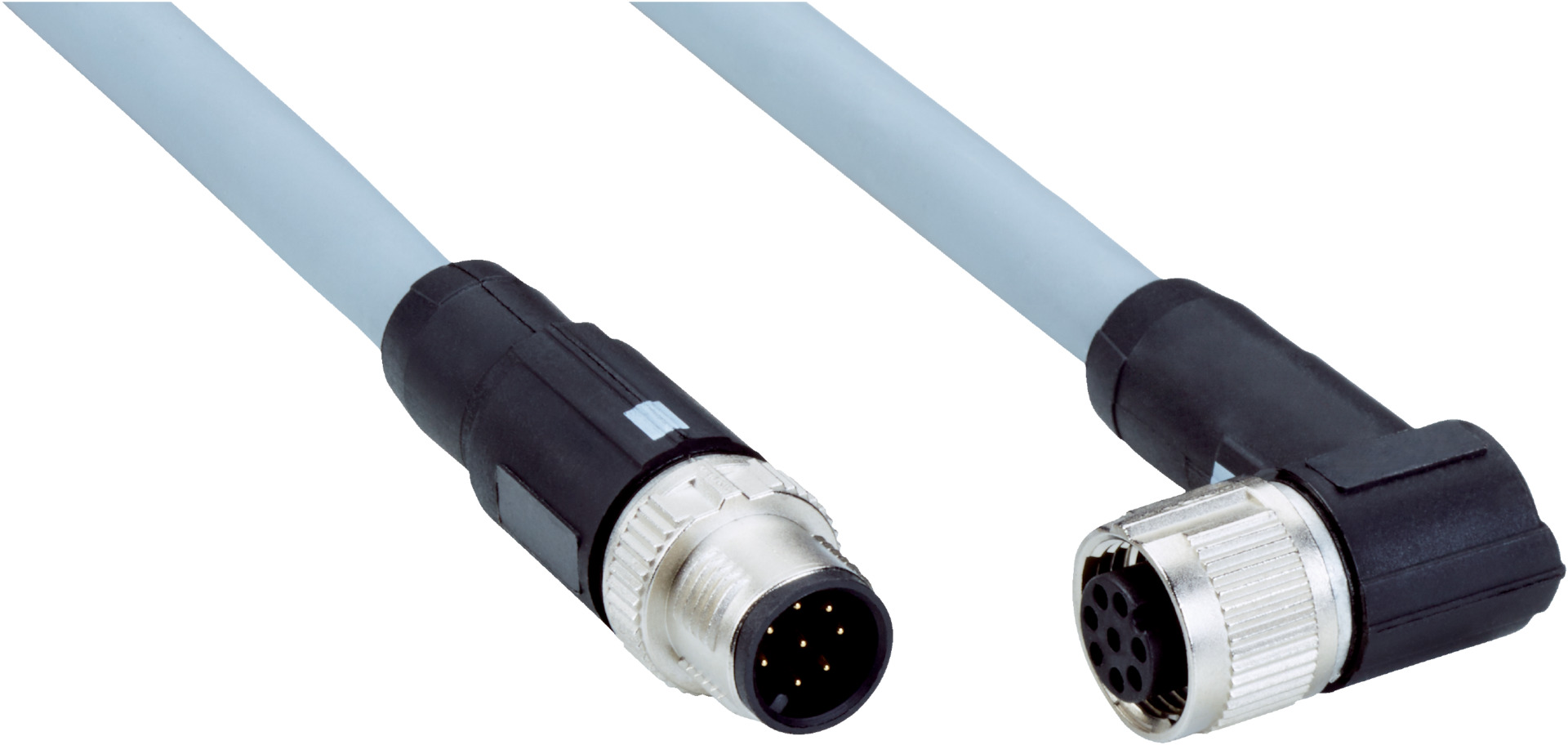

M12 8-Pin Cable Assembly | Female & Male Connectors | 5m PUR Cable | IP65/IP67/IP69K Rated | by SICK
The M12 8-pin cable assembly is designed for robust industrial automation and sensor connectivity. Featuring a female connector on head A and a male connector on head B, this 5m PUR cable ensures high durability with 3,000,000 bending cycles. With an IP65/IP67/IP69K enclosure rating, it’s perfect for demanding environments, providing reliable connections in machine building, robotics, and factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Male connector, M12, 8-pin, A-coded
- Cable length: 5 m, 8-wire, PUR
- Jacket material: PUR
- Jacket color: Gray
- Conductor cross section: 0.25 mm²
- Bending radius: 57 mm (flexible use and stationary position)
- Operating temperature: -40 °C to +80 °C (flexible use), -50 °C to +80 °C (stationary)
- Bending cycles: 3,000,000
- Reference voltage: ≤ 30 V
- Traversing speed: 1.4 m/s
- Enclosure rating: IP65 / IP67 / IP69K
- Contamination rating: 3
- Insulation resistance: ≥ 100 MΩ
- Overvoltage category: II
- Specific insulation resistance: ≤ 5 mΩ
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, angled, A-coded on head A
- Male connector, M12, 8-pin, A-coded on head B
- 5 m length, 8-wire PUR cable with gray jacket
- High durability with 3,000,000 bending cycles
- Wide operating temperature range: -40 °C to +80 °C (flexible use)
- Enclosure rating IP65/IP67/IP69K for robust protection
- Contamination rating 3 for industrial environments
- Insulation resistance ≥ 100 MΩ and overvoltage category II
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Robotics and control systems requiring reliable M12 connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements, minimizing waste
- High insulation resistance improves energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A88-050XXXM2A88 M12 8-pin cable assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
