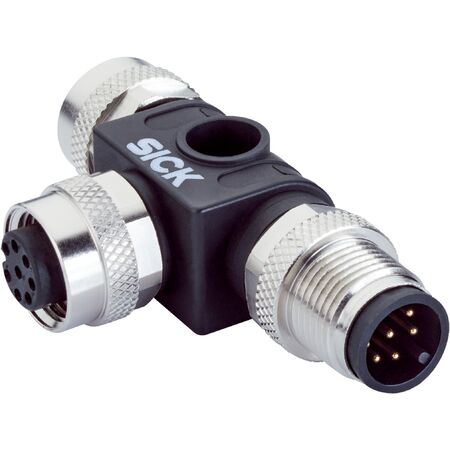

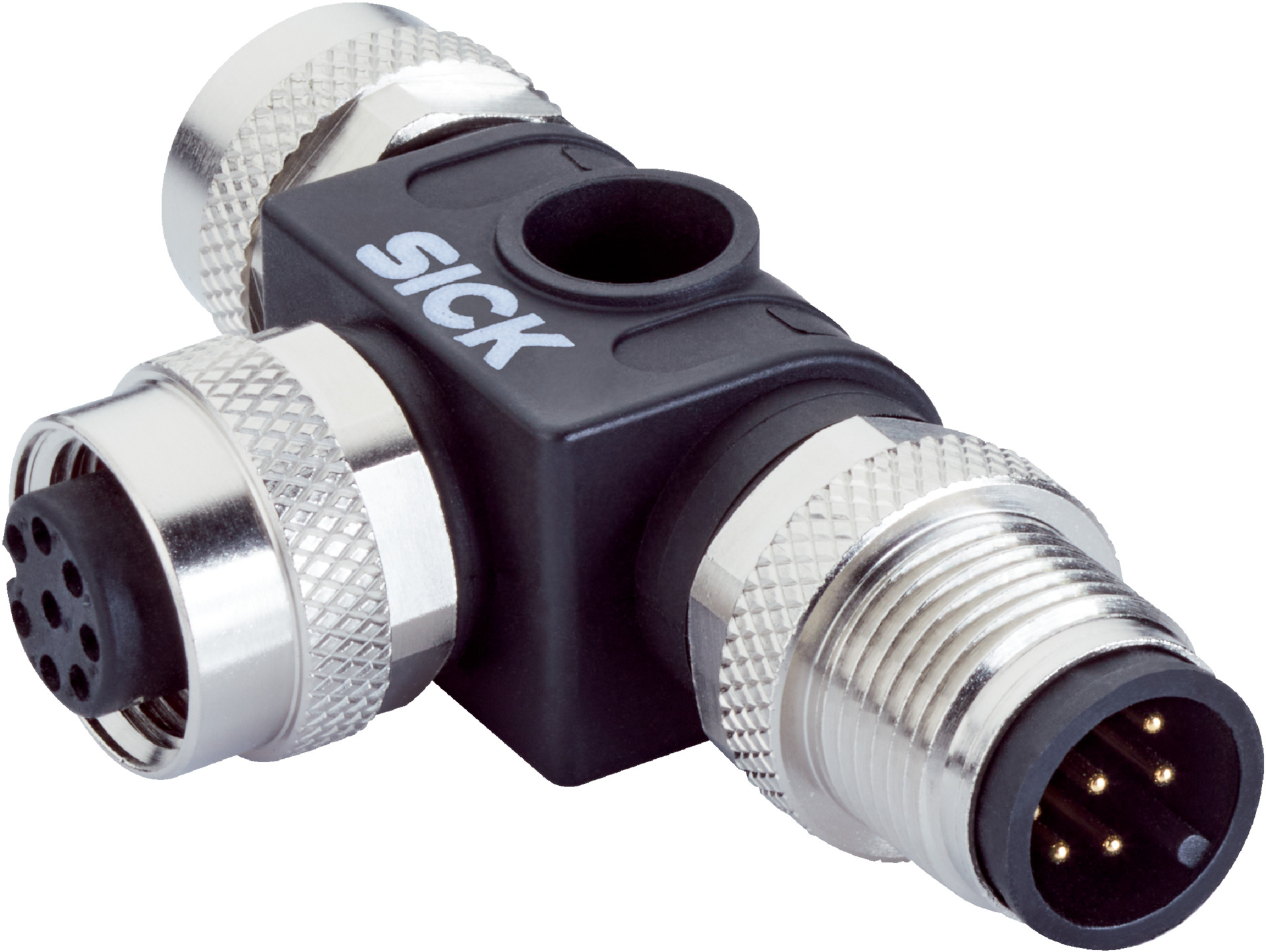

M12 8-Pin Connector Cable | Female & Male Connectors | IP67 Rated | by SICK
The M12 8-Pin Connector Cable is designed for reliable connectivity in industrial automation and control systems. Featuring female and male A-coded connectors, this unshielded cable ensures durability with its zinc die-cast, nickel-plated locking nut. With an IP67 rating, it provides excellent protection against dust and water, making it ideal for harsh environments and sensor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, A-coded
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Male connector, M12, 8-pin, A-coded
- Housing color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 30 V DC
- Current loading: 4 A
- Operating temperature: -30 °C to +90 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 20mm x 200mm x 50mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 8-pin, A-coded connectors
- Zinc die-cast, nickel-plated locking nut for durability
- Unshielded design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +90°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connectivity
- Factory and process automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SBO-02F12-SM M12 8-pin Connector Cable is available now for immediate purchase. Ideal for industrial automation and sensor connectivity applications.
