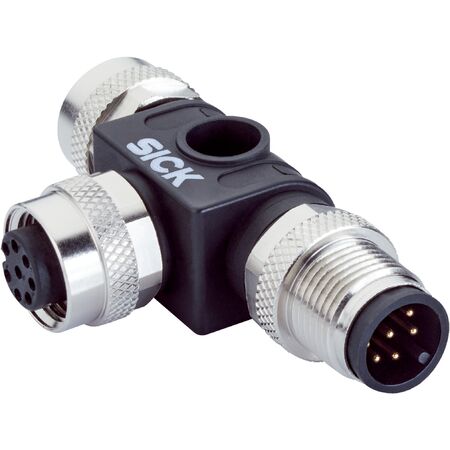

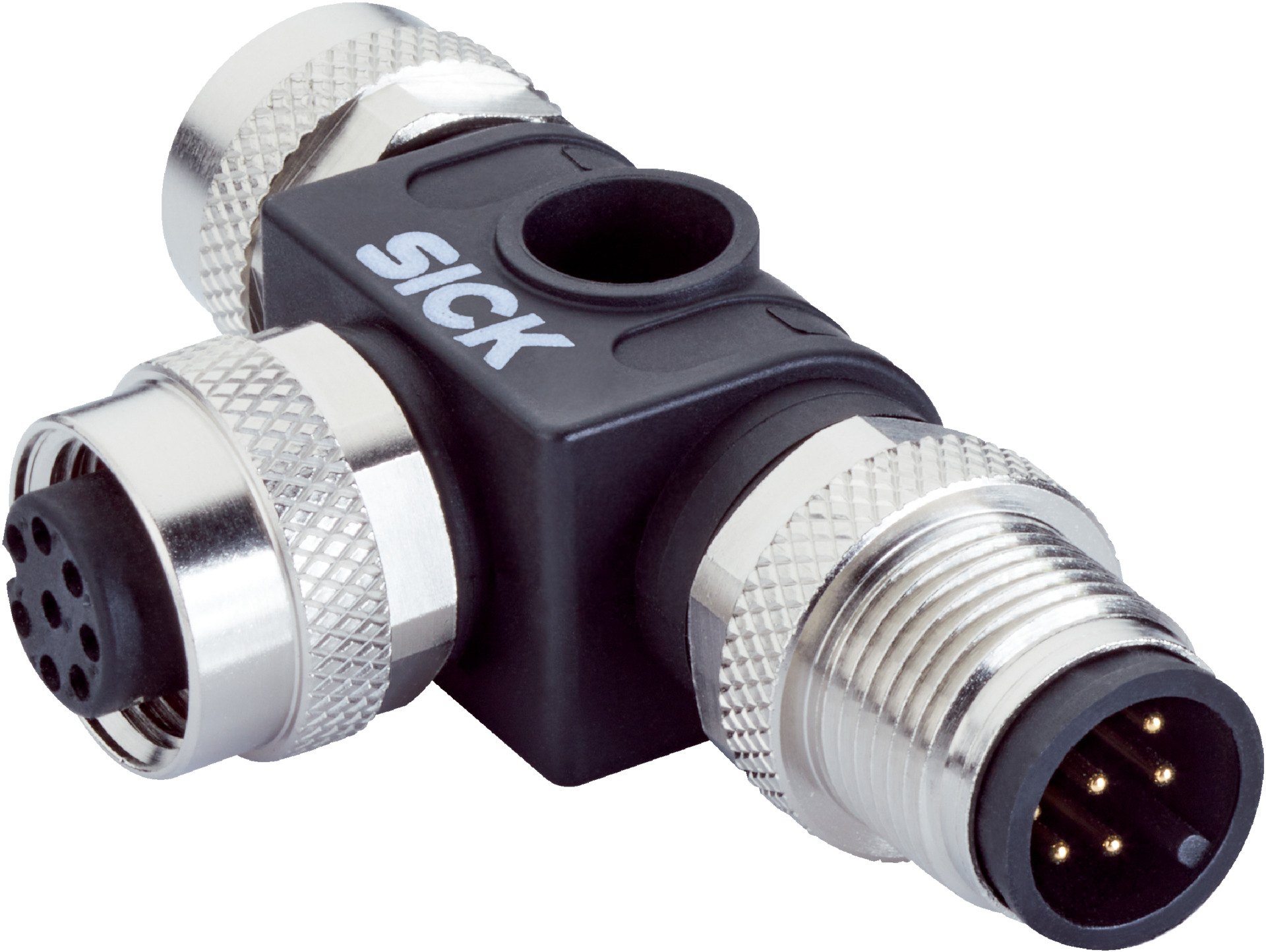

M12 8-Pin Connector Cable | Female & Male Connectors | IP67 Rated | by SICK
The M12 8-Pin Connector Cable is designed for robust industrial automation and sensor connectivity. Featuring female and male A-coded connectors, this cable is built with durable TPU housing and a zinc die-cast locking nut for secure connections. With an IP67 rating, it ensures protection against dust and water, making it ideal for factory and process automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, A-coded
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Male connector, M12, 8-pin, A-coded
- Housing material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 30 V DC
- Current loading: ≤ 2 A
- Operating temperature: -30 °C to +90 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 8-pin, A-coded connectors
- TPU housing material for durability
- Zinc die-cast, nickel-plated locking nut for secure connection
- Unshielded cable design
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -30°C to +90°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Factory and process automation systems
- Robotics and machine control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust design reduces need for frequent replacements, minimizing electronic waste
- IP67 rating ensures protection against environmental contaminants, enhancing product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DSC-1208T000025KM0 M12 8-pin Connector Cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
