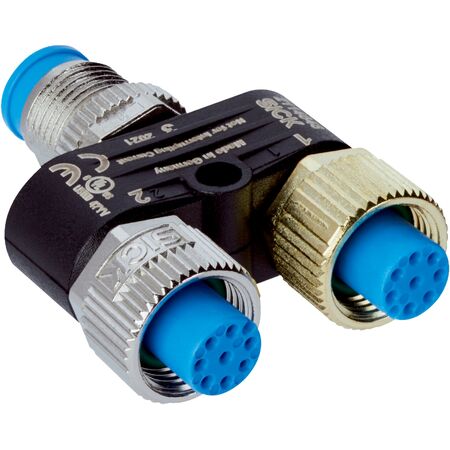

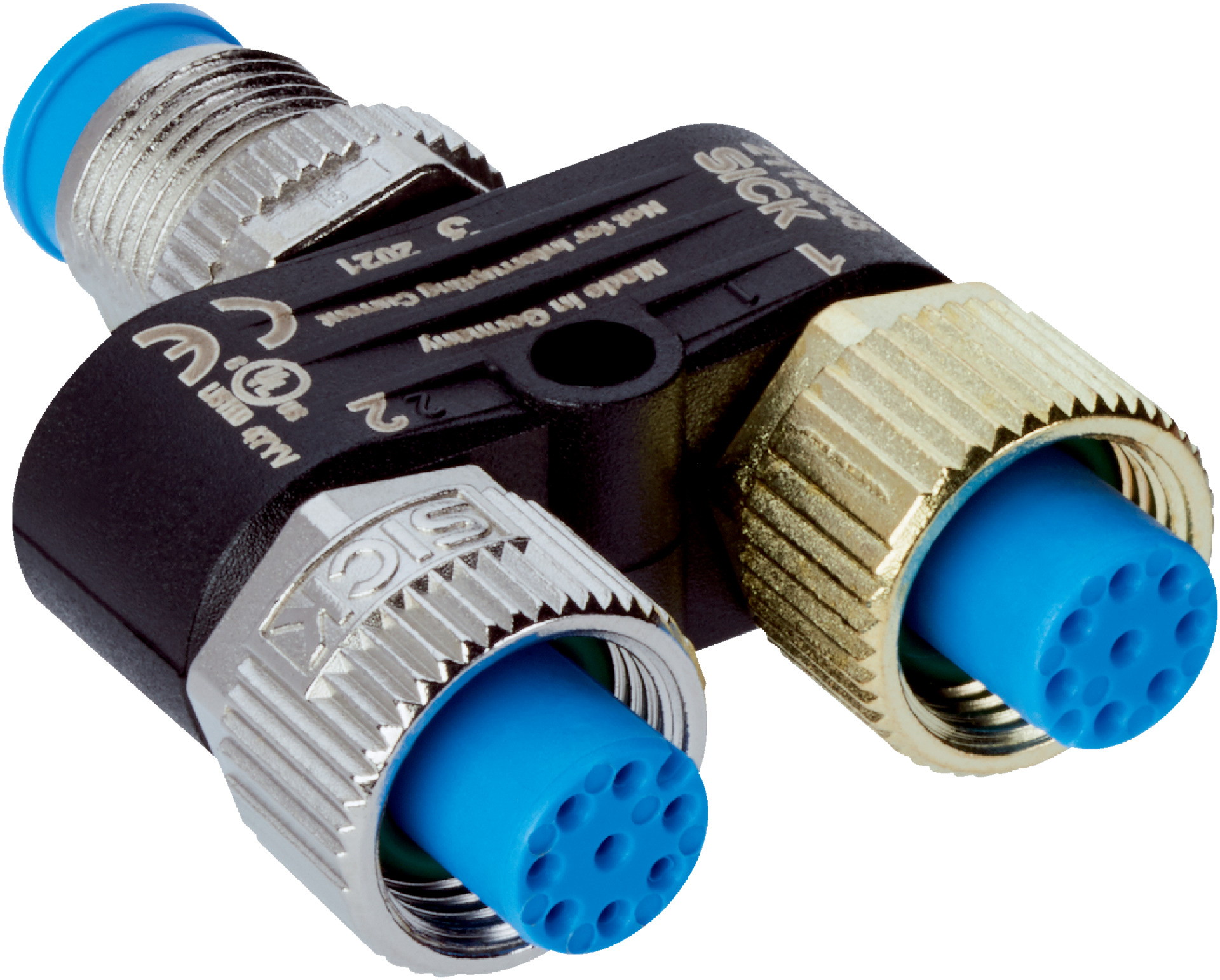

M12 8-Pin Connector Cable | Male & Female A-Coded | IP65/IP66K/IP67 Rated | by SICK
The M12 8-pin connector cable is designed for robust industrial automation and sensor connectivity. Featuring male and female A-coded connectors with a screw connection for secure attachment, this cable is built to withstand harsh environments with an IP65/IP66K/IP67 rating. Ideal for machine building and factory automation, it operates effectively in temperatures ranging from -25°C to +85°C, ensuring reliable signal transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, A-coded
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Female connector, M12, 8-pin, A-coded
- Locking plug connector: Screw connection
- Locking nut material: Zinc die-cast, nickel-plated
- Width across flats: 13 mm
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Insulation resistance: 100 MΩ
- Contamination rating: 3
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: -25 °C to +85 °C
- UL File No.: E335179
- Dimensions (H x L x W): 20mm x 150mm x 13mm
- Weight: 0.1 kg
Key Features
- Male and female M12, 8-pin, A-coded connectors
- Screw connection locking plug for secure attachment
- Zinc die-cast, nickel-plated locking nut for durability
- Unshielded design with contamination rating 3
- High enclosure rating: IP65 / IP66K / IP67 for protection against dust and water
- Operating temperature range from -25°C to +85°C
- Rated impulse voltage of 0.8 kV and current loading up to 2 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High protection ratings prevent ingress of dust and water, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A18-000000FY2A8 connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
