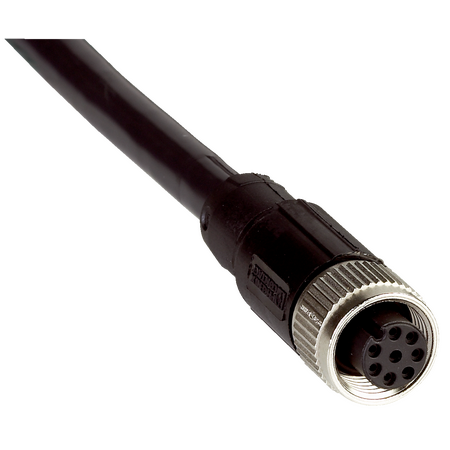

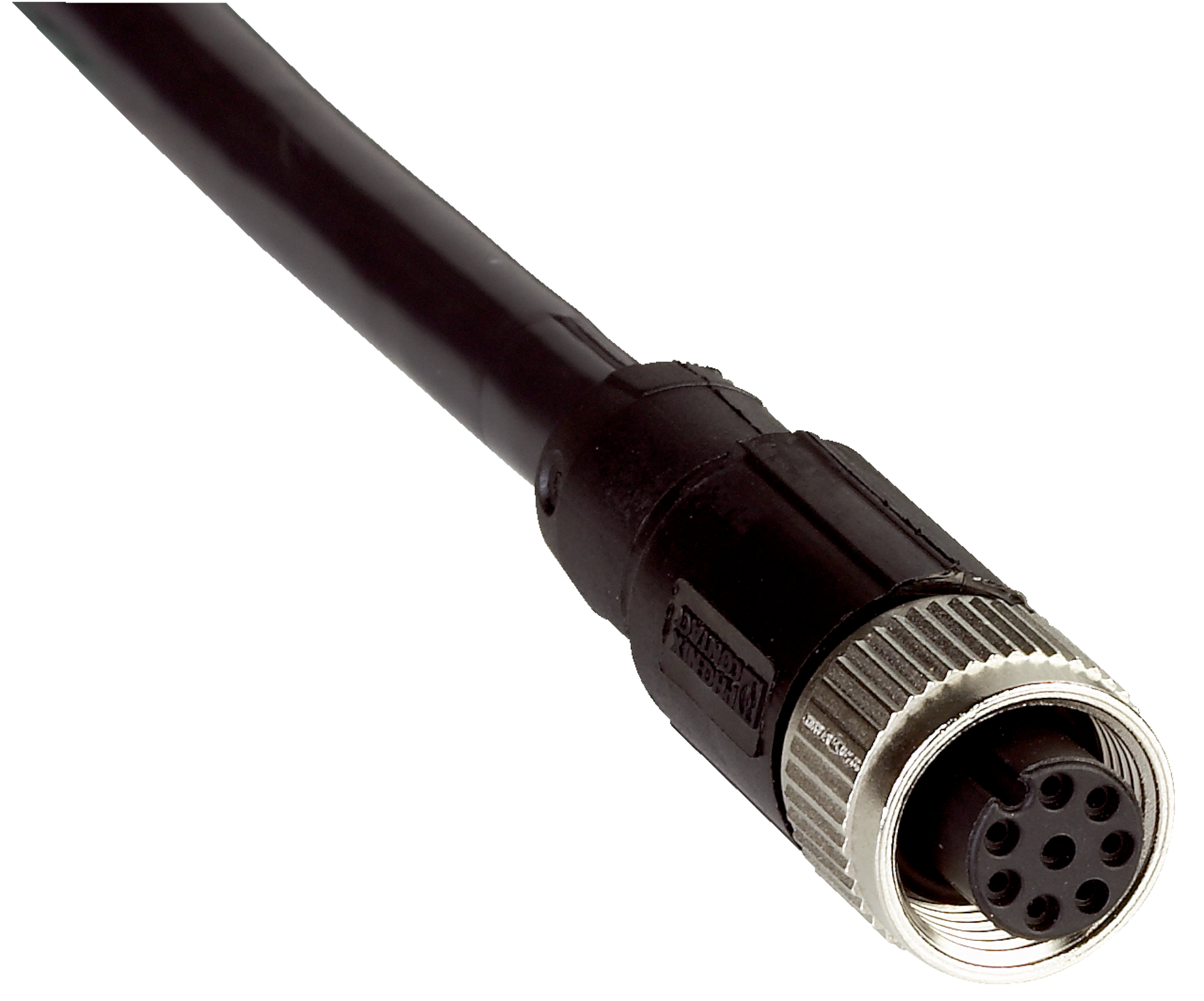

M12 8-Pin Female Connector Cable | 20m Length | Halogen-Free PUR | High Bending Cycle Durability | by SICK
The M12 8-Pin Female Connector Cable is designed for reliable sensor and actuator connections in industrial automation. With a durable 20m halogen-free PUR cable and a high bending cycle durability of 4,000,000 cycles, this cable is perfect for drag chain operations in environments with oils and lubricants. Its flexible design ensures optimal performance in both stationary and dynamic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin sensor cable, M12 female connector cable, PUR sensor cable, drag chain cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 20 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 9 x cable diameter
- Bending radius stationary position: > 9 x cable diameter
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -40°C to +80°C
- Operating temperature head: -25°C to +90°C
- Bending cycles: 4,000,000
- Reference voltage: ≤ 30 V
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Application: Drag chain operation in zones with oils and lubricants
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.3 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- 20 m length, 8-wire PUR cable, halogen-free
- Cable jacket and connector made from durable, flexible TPU and PUR materials
- High bending radius suitable for flexible use and stationary positions
- Operating temperature range from -40°C to +90°C depending on use
- Unshielded sensor/actuator cable designed for drag chain applications
- High bending cycle durability with 4,000,000 cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Drag chain operation in zones with oils and lubricants
- Machine and factory automation requiring flexible and durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1208G20MD25KM1 M12 8-Pin Female Connector Cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
