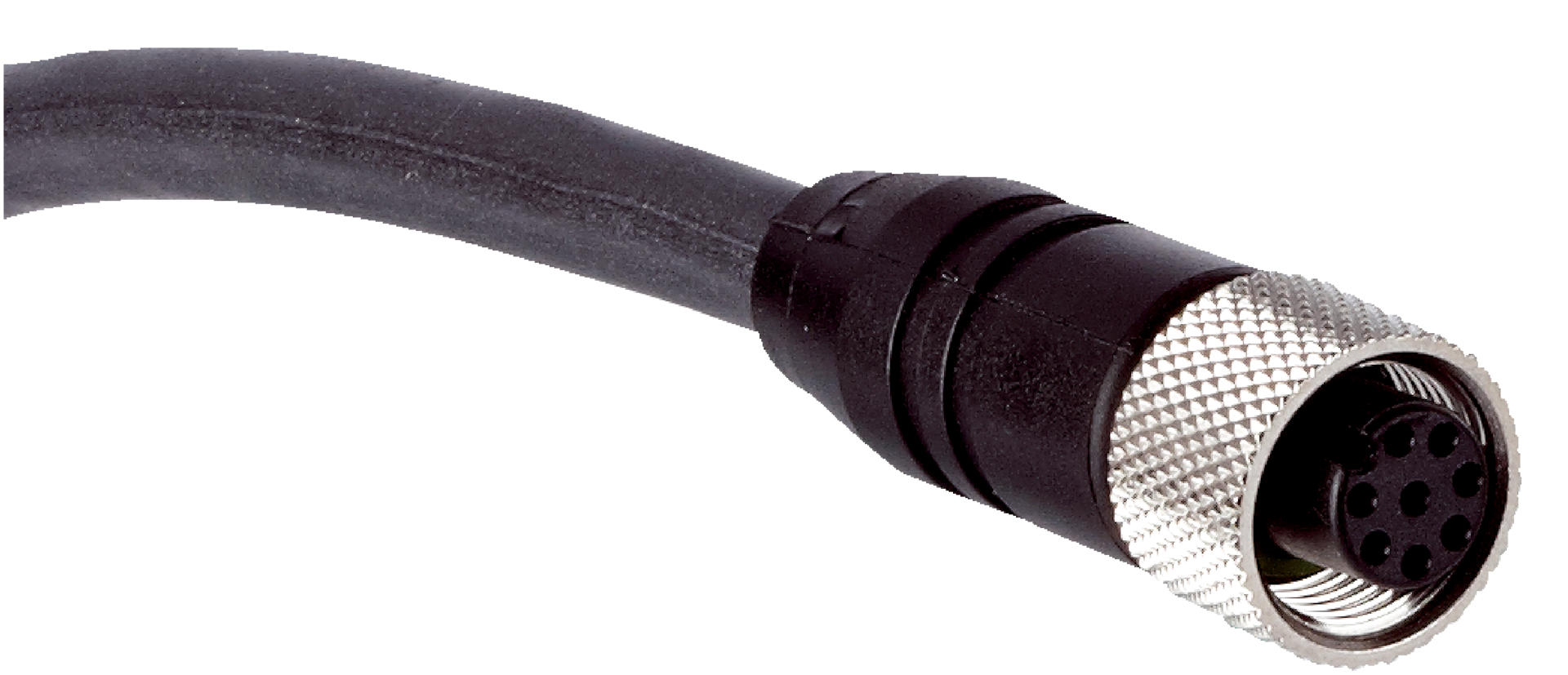

M12 8-Pin Female Connector Cable | 5m Length | Shielded & Halogen-Free | IP67 Rated | by SICK
The M12 8-Pin Female Connector Cable is designed for robust industrial automation applications, featuring a 5m length and a shielded, halogen-free PUR cable. With an IP67 rating for dust and water protection, this cable is perfect for environments with oils and lubricants, ensuring reliable connections in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin female connector cable, SICK M12 cable 5m, Industrial sensor cable M12 8-pin
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Nickel-plated brass
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm², 4 x 2 x 0.25 mm²
- Shielding: Shielded
- Tightening torque: 0.5 Nm
- Current loading: 2 A
- Signal type: Incremental, SSI
- Enclosure rating: IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Bending cycles: > 2,000,000
- Dimensions (H x L x W): 12mm x 5000mm x 12mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 8-pin, straight
- 5 m length, 8-wire PUR halogen-free cable
- Shielded cable with TPU connector material
- Nickel-plated brass locking nut
- IP67 rated enclosure for dust and water protection
- High bending cycle durability (>2,000,000 cycles)
- Operating temperature range from -50 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.
Available Now
The SICK DOL-1208-G05MAC1 female connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
