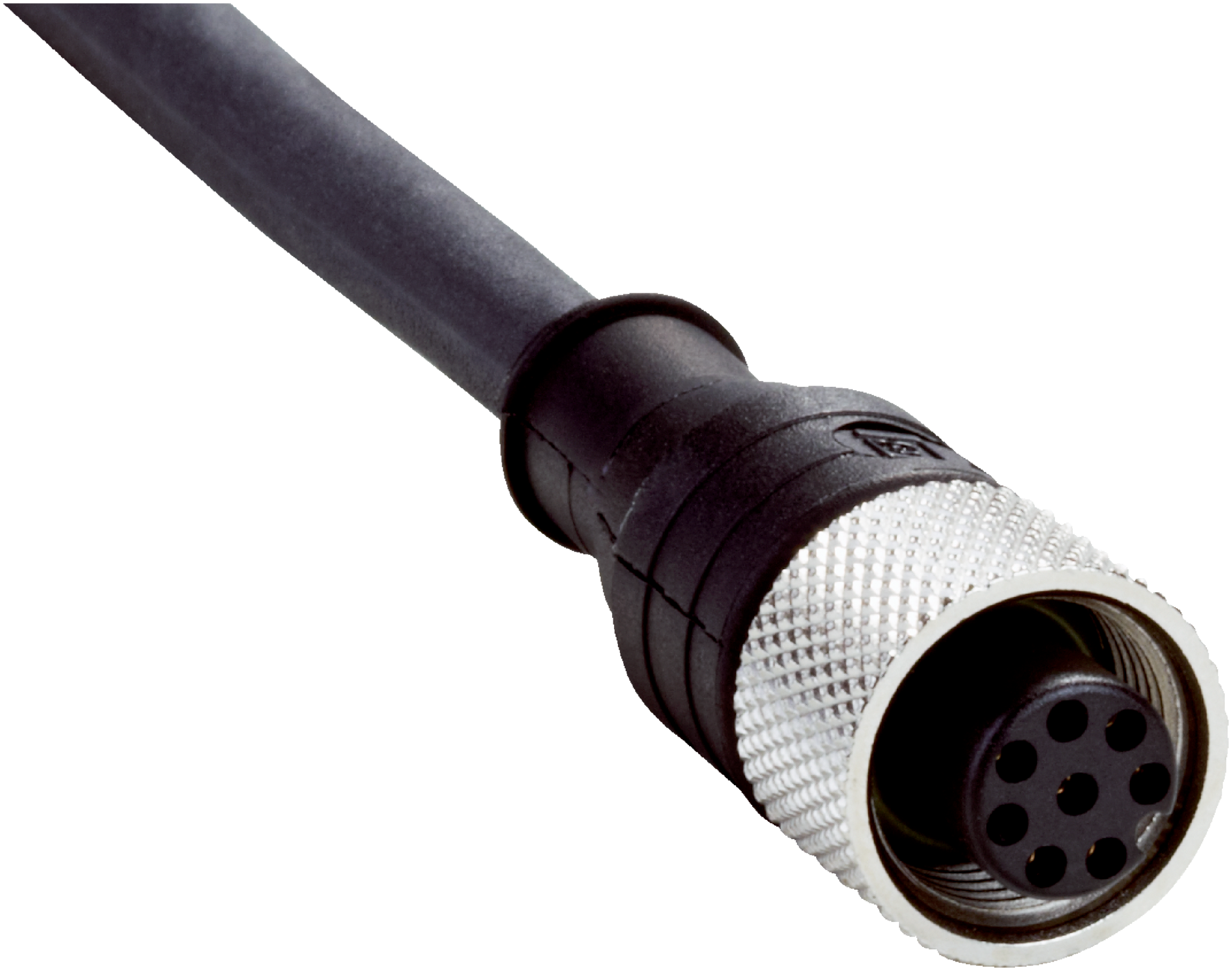

M12 8-Pin Female to Flying Leads Cable | 5m Length | Shielded & Halogen-Free | IP65/IP67 Rated | by SICK
The M12 8-Pin Female to Flying Leads Cable is designed for industrial automation, featuring a 5m shielded PUR cable with a halogen-free black jacket. Ideal for sensor and actuator connections, this cable supports a current loading of 2A and operates in temperatures from -50°C to +80°C. With an IP65/IP67 rating, it ensures reliable performance in demanding environments, making it perfect for factory machinery and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin sensor cable, Flying lead cable M12 female, Industrial sensor cable 5m, Shielded actuator cable M12
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Cable length: 5 m
- Cable wires: 7-wire, shielded
- Cable jacket: PUR, halogen-free, black
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Operating temperature stationary position: -50°C to +80°C
- Drag chain operation temperature: -25°C to +60°C
- Current loading: 2 A
- Reference voltage: ≤ 30 V
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 6mm x 5000mm x 6mm
- Weight: 0.2 kg
Key Features
- Female M12 8-pin straight connector on one end
- Flying leads on the other end for versatile connection
- Shielded 7-wire PUR cable, halogen-free and black jacket
- High bending cycle durability with over 2,000,000 cycles
- IP65/IP67 rated for dust and water protection
- Operating temperature range from -50°C to +80°C depending on use
- Supports current loading of 2A and reference voltage up to 30V
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory machinery wiring
- Robotics and control systems requiring flexible, shielded cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

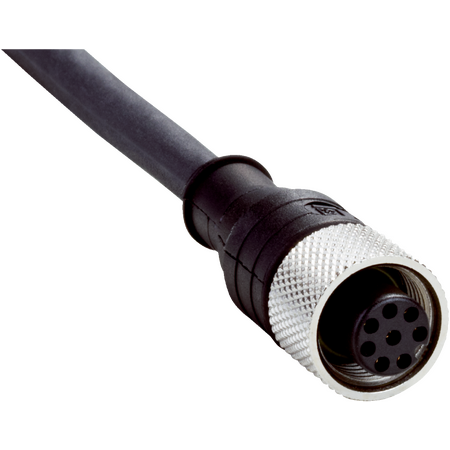

The SICK DOL-127SG05ME25KM0 M12 8-Pin Female to Flying Leads Cable 5m is available for immediate purchase, ideal for industrial automation and sensor connection applications.
