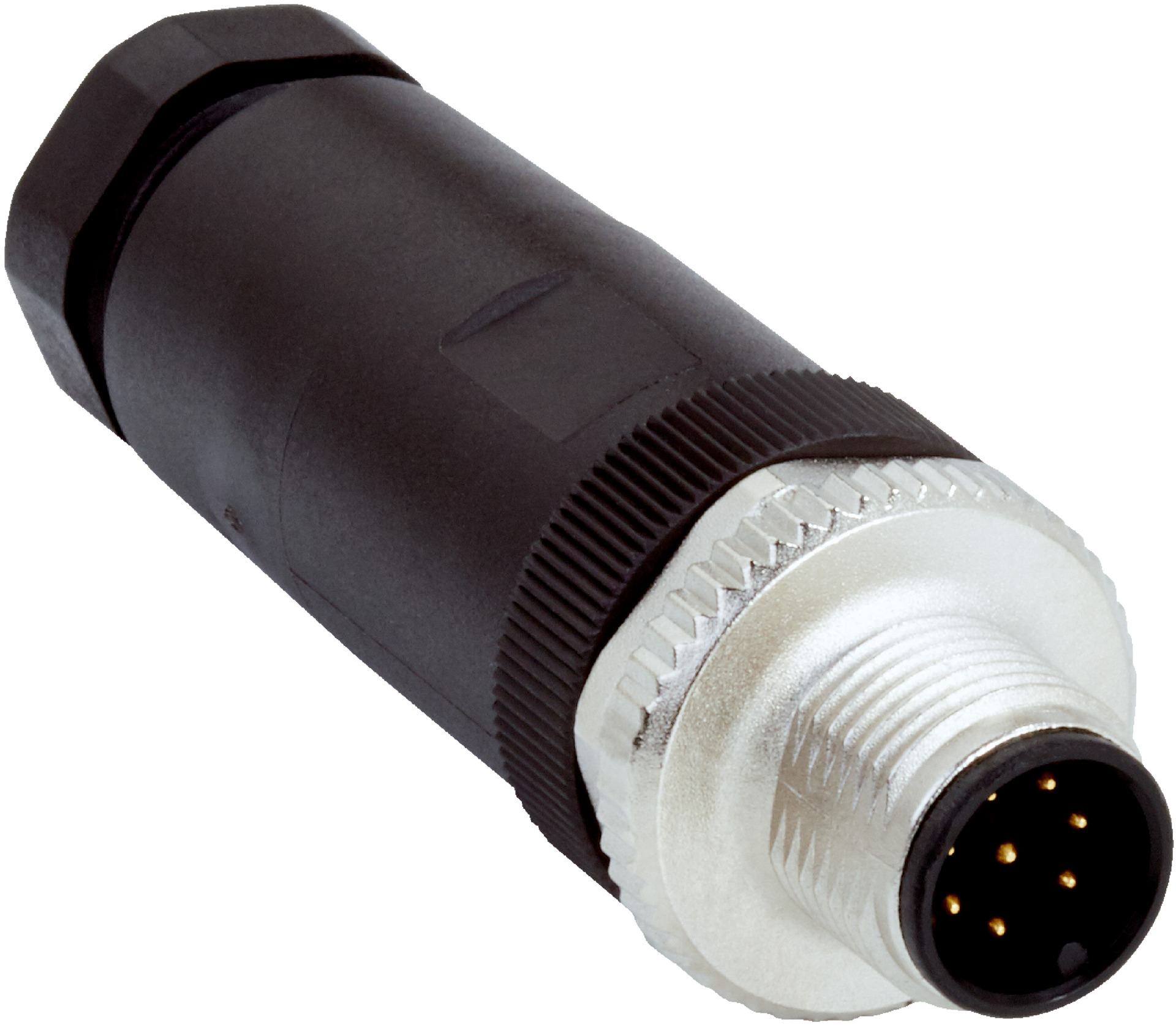

M12 8-Pin Male Connector | Screw-Type Terminals | IP67 Rated | by SICK
The M12 8-pin male connector is designed for secure connections in industrial automation and field bus technology. Featuring screw-type terminals and a durable PA construction, this connector ensures reliable performance in harsh environments with an IP67 rating, making it ideal for sensor and actuator wiring in manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 8-Pin Male Connector | Screw-Type Terminals | IP67 Rated | by SICK
Brand: SICK
SKU: 6033269
Alternatively Known As: M12 8-pin male connector, M12 screw terminal connector, Industrial M12 connector, Field bus M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PA (Polyamide)
- Connector color: Black
- Locking nut material: CuZn (Copper-Zinc alloy)
- Tightening torque: 0.4 Nm
- Shielding: Unshielded
- Permitted cross-section: 0.25 mm² to 0.5 mm²
- Reference voltage: ≤ 30 V
- Current loading: 2 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male M12, 8-pin, straight, A-coded connector
- Screw-type terminals for secure wiring
- Connector material: PA with black color
- Locking nut made of CuZn for durability
- Tightening torque of 0.4 Nm
- Unshielded design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +85 °C
- Current loading capacity of 2 A
- Suitable for field bus technology
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial connectors and wiring standards to ensure safety and compliance.
Applications
- Industrial automation and control systems
- Field bus technology connections
- Sensor and actuator wiring in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and IP67 rating reduce replacement frequency and electronic waste
- Supports efficient and reliable industrial connections, minimizing downtime and energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

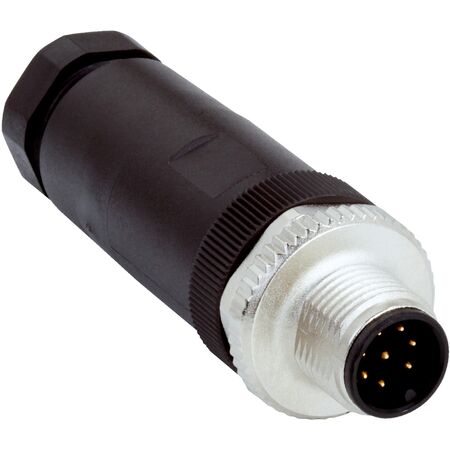

The SICK STE-1208-G M12 8-pin male connector is available for immediate purchase, ideal for industrial automation and field bus technology applications.
