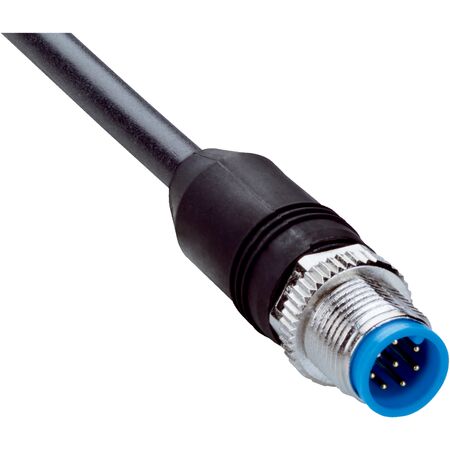

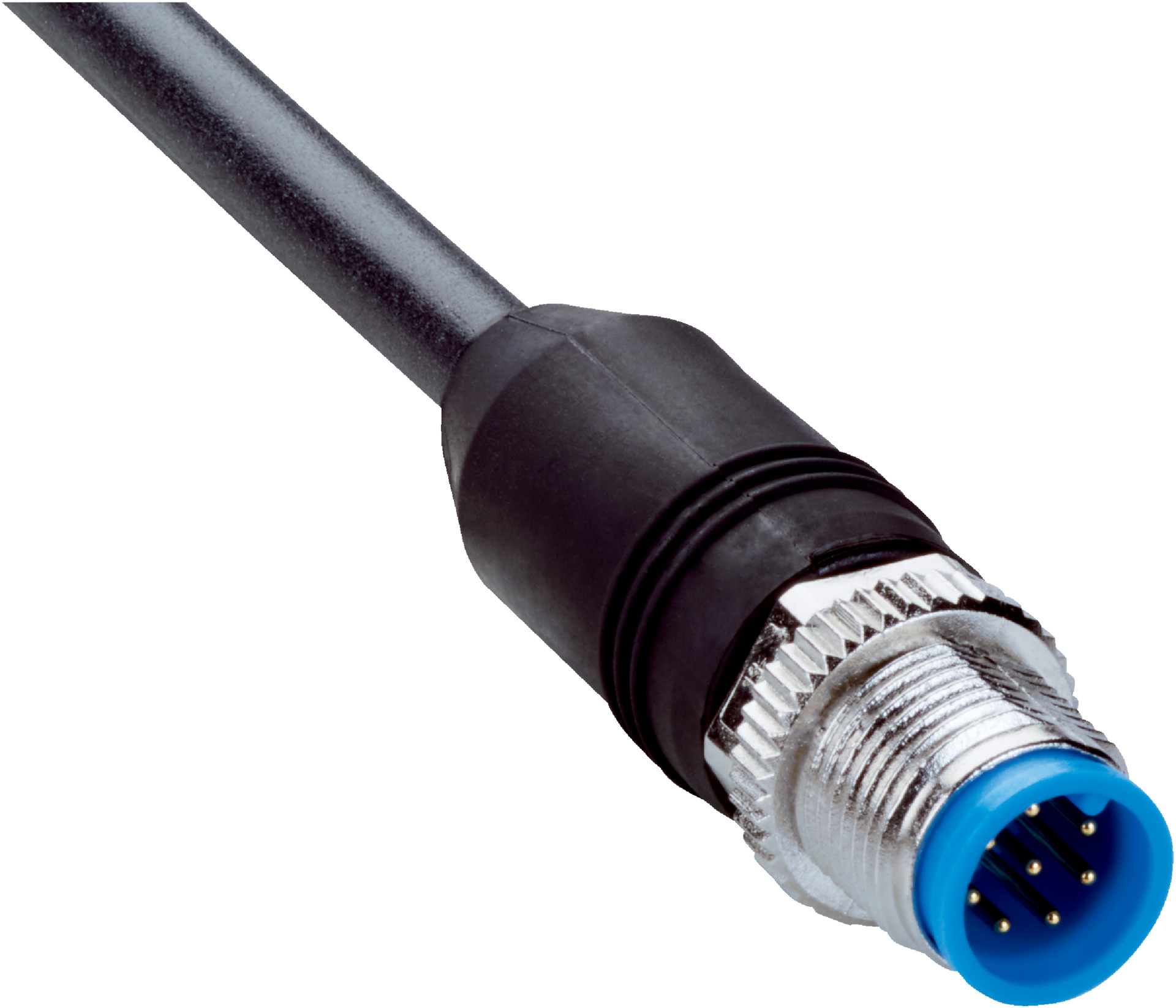

M12 8-Pin Sensor Actuator Cable | 10m Length | IP65/IP66/IP67 Rated | by SICK
The M12 8-Pin Sensor Actuator Cable is designed for robust industrial applications, featuring a 10m length and IP65/IP66/IP67 enclosure rating. Ideal for robotics and drag chain operations, this cable ensures reliable connectivity with its shielded design and high bending cycle durability, making it perfect for environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Bending cycles: 5,000,000
- Signal type: Sensor/actuator cable
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 7mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 10 m, 8-wire, PUR, halogen-free cable
- Cable diameter 7 mm with 0.25 mm² conductor cross section
- Shielded cable with bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- High bending cycles up to 5,000,000 and torsion cycles up to 2,000,000
- Rated impulse voltage 0.8 kV and current loading ≤ 2 A
- Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A28-100UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
