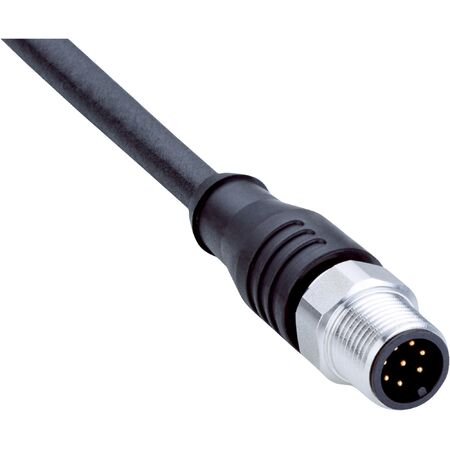

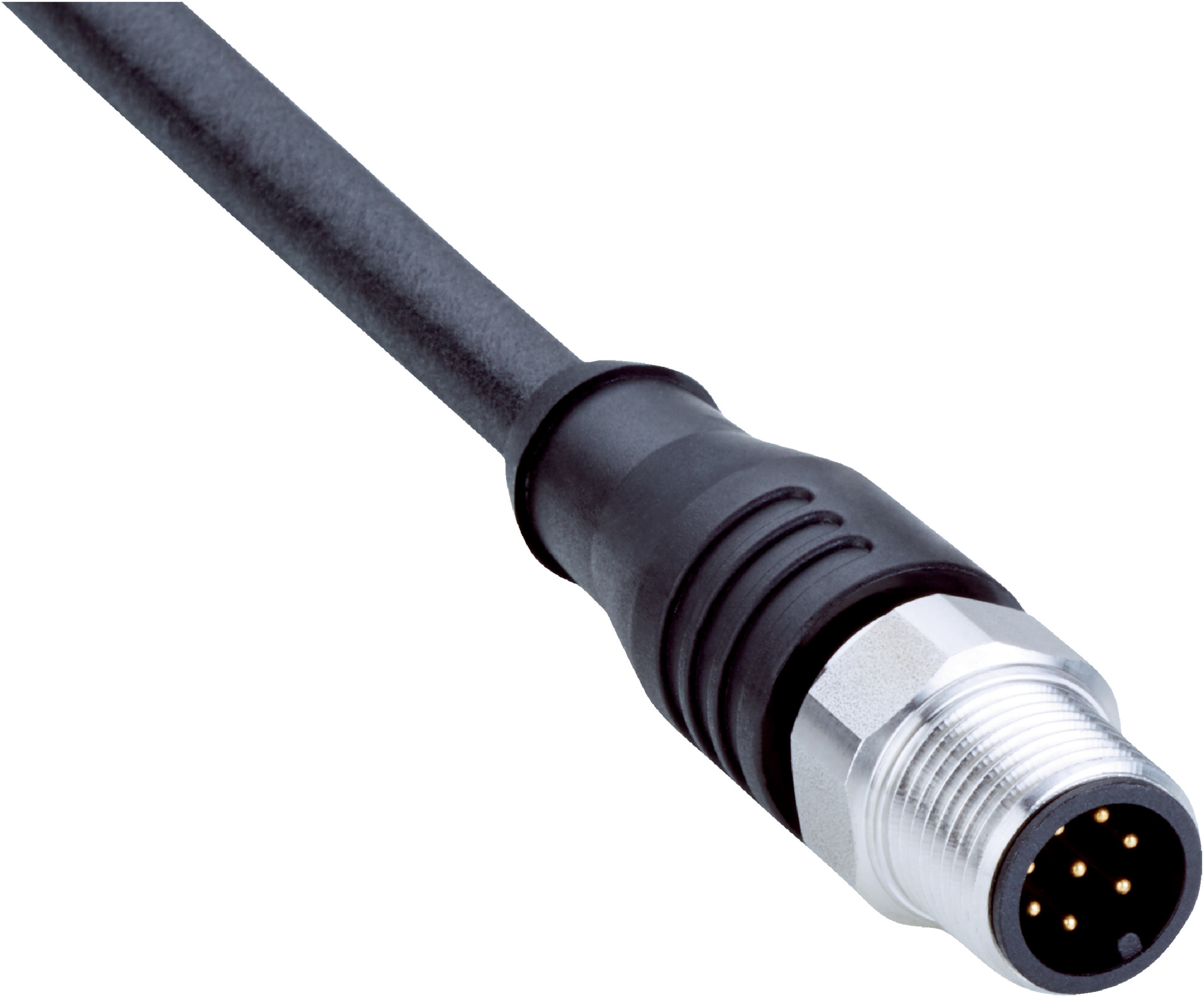

M12 8-Pin Sensor/Actuator Cable | 10m Length | Shielded & Halogen-Free | IP67/IP69K Rated | by SICK
The M12 8-Pin Sensor/Actuator Cable is designed for robust industrial applications, featuring a 10m length and shielded construction for reliable performance. Ideal for robotics and automation, this cable withstands extreme temperatures and offers high flexibility, making it perfect for drag chain operations. With an IP67/IP69K rating, it ensures protection against dust and water, ensuring longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable length: 10 m, 8-wire, PUR, halogen-free
- Cable diameter: 6.3 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –30 °C to +90 °C
- Operating temperature stationary position: –40 °C to +90 °C
- Operating temperature drag chain operation: –25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 1.7 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: ± 360° / 1 m
- Torsion cycles: 1,000,000
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 8-pin, straight on head A
- Flying leads on head B
- Cable length: 10 m, 8-wire, PUR, halogen-free
- Shielded cable with TPU connector material
- Locking nut made of stainless steel (V4A/1.4404)
- High bending radius for flexible use and stationary position
- Operating temperature range suitable for flexible use, stationary position, and drag chain operation
- Torsion force ±360°/1 m with 1,000,000 torsion cycles
- Enclosure rating IP67/IP69K for robust protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A68-100UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
