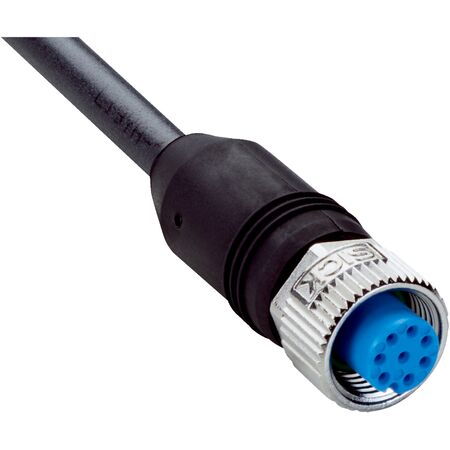

M12 8-Pin Sensor Actuator Cable | 20m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 8-Pin Sensor Actuator Cable is designed for robust industrial applications, featuring a 20m length and IP65/IP66K/IP67 enclosure rating. Ideal for robotics and drag chain operations, this halogen-free PUR cable ensures high flexibility and durability, withstanding extreme temperatures from -40 °C to +85 °C. Its screw connection locking plug guarantees secure connectivity, making it perfect for use in uncontaminated zones and areas with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 20 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Reference voltage: 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 13mm x 20000mm x 13mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- Cable length 20 m, 8-wire, PUR, halogen-free
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion force 180° / 1 m with 2,000,000 torsion cycles
- Nominal voltage 300 V AC, current loading 2 A
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF2A18-200UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
