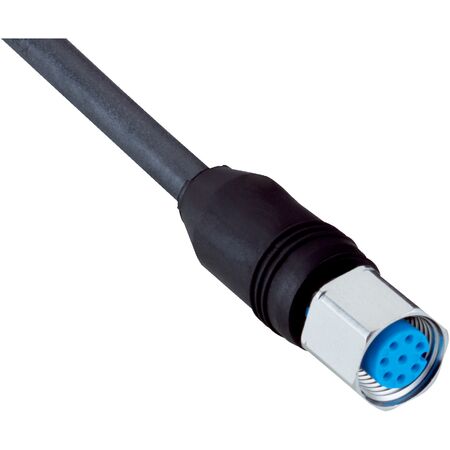

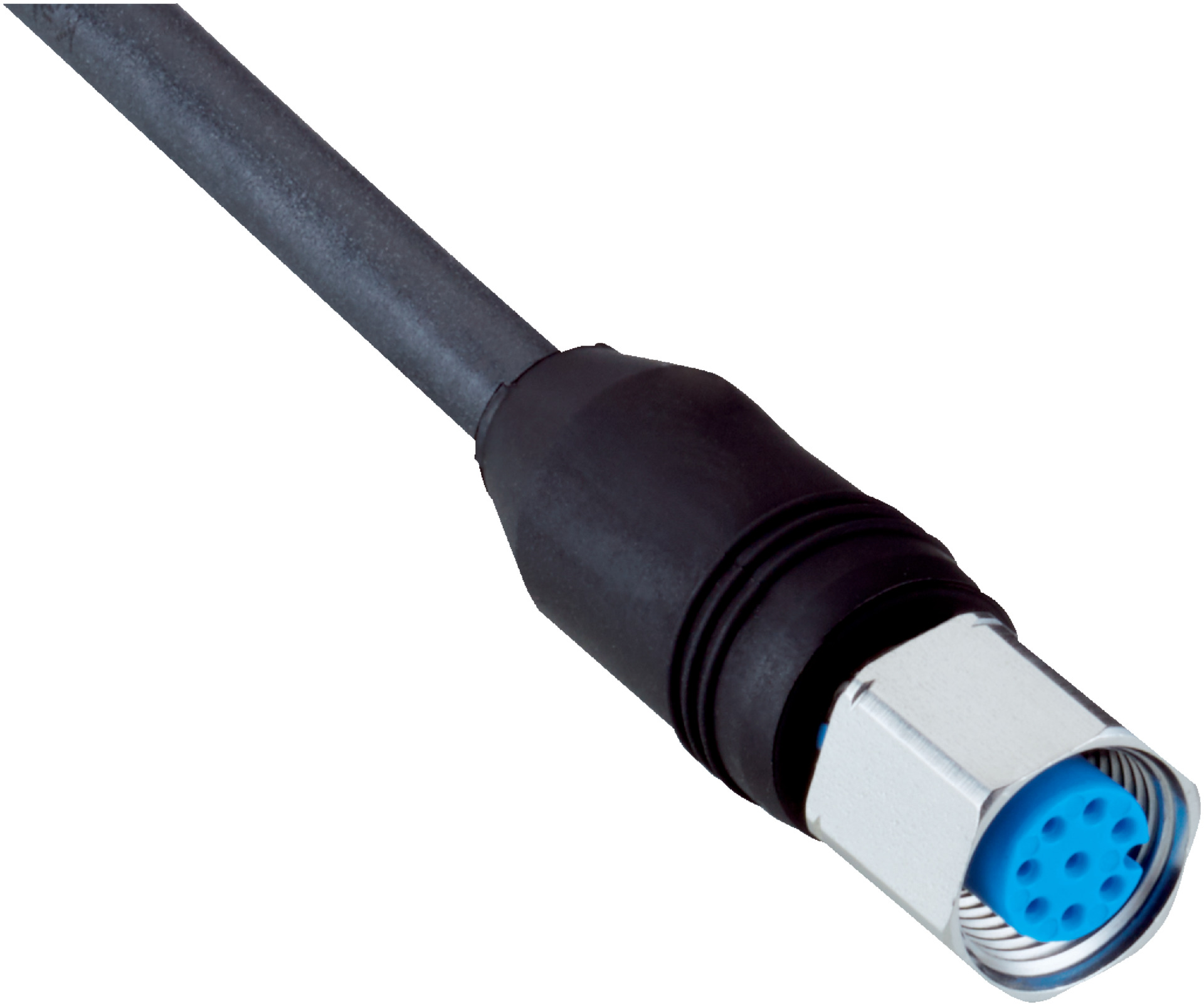

M12 8-Pin Sensor/Actuator Cable | 20m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 8-Pin Sensor/Actuator Cable is designed for reliable connections in industrial automation and robotics. With a robust 20m length, TPU material, and IP65/IP66K/IP67 enclosure rating, it withstands harsh environments, including oil and seawater exposure. Ideal for applications requiring flexible use and drag chain operation, this cable ensures durability and performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Seal material: FKM
- Cable length: 20 m
- Cable type: 7-wire, PUR jacket
- Cable diameter: 6 mm
- Conductor cross section: 0.155 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature flexible use: –30 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Drag chain operation temperature: –30 °C to +80 °C
- Head temperature: –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Current loading: ≤ 2 A
- Rated impulse voltage: 0.8 kV
- Signal type: Sensor/actuator cable
- Dimensions (H x L x W): 6mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Stainless steel locking nut (V4A/1.4404)
- FKM seal material
- 20 m, 7-wire PUR cable with black jacket
- Shielded cable with 6 mm diameter
- Flexible use temperature range: –30 °C to +80 °C
- Stationary position temperature range: –40 °C to +80 °C
- Drag chain operation temperature range: –30 °C to +80 °C
- Head temperature range: –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Overvoltage category III
- Insulation resistance > 100 MΩ
- Current loading ≤ 2 A
- Rated impulse voltage 0.8 kV
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
- Seawater resistant environments
- Cold bending resistant applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Seawater and oil resistance extend product life in harsh environments.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A68-200UA7XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and harsh environment applications.
