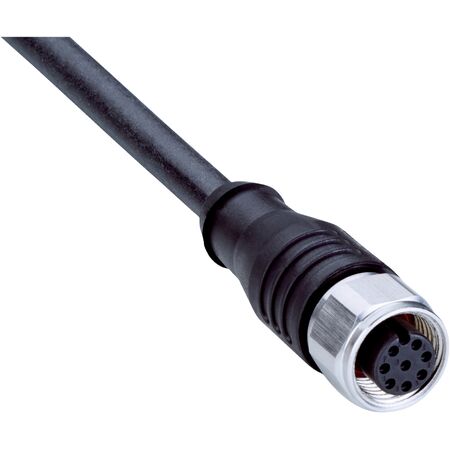

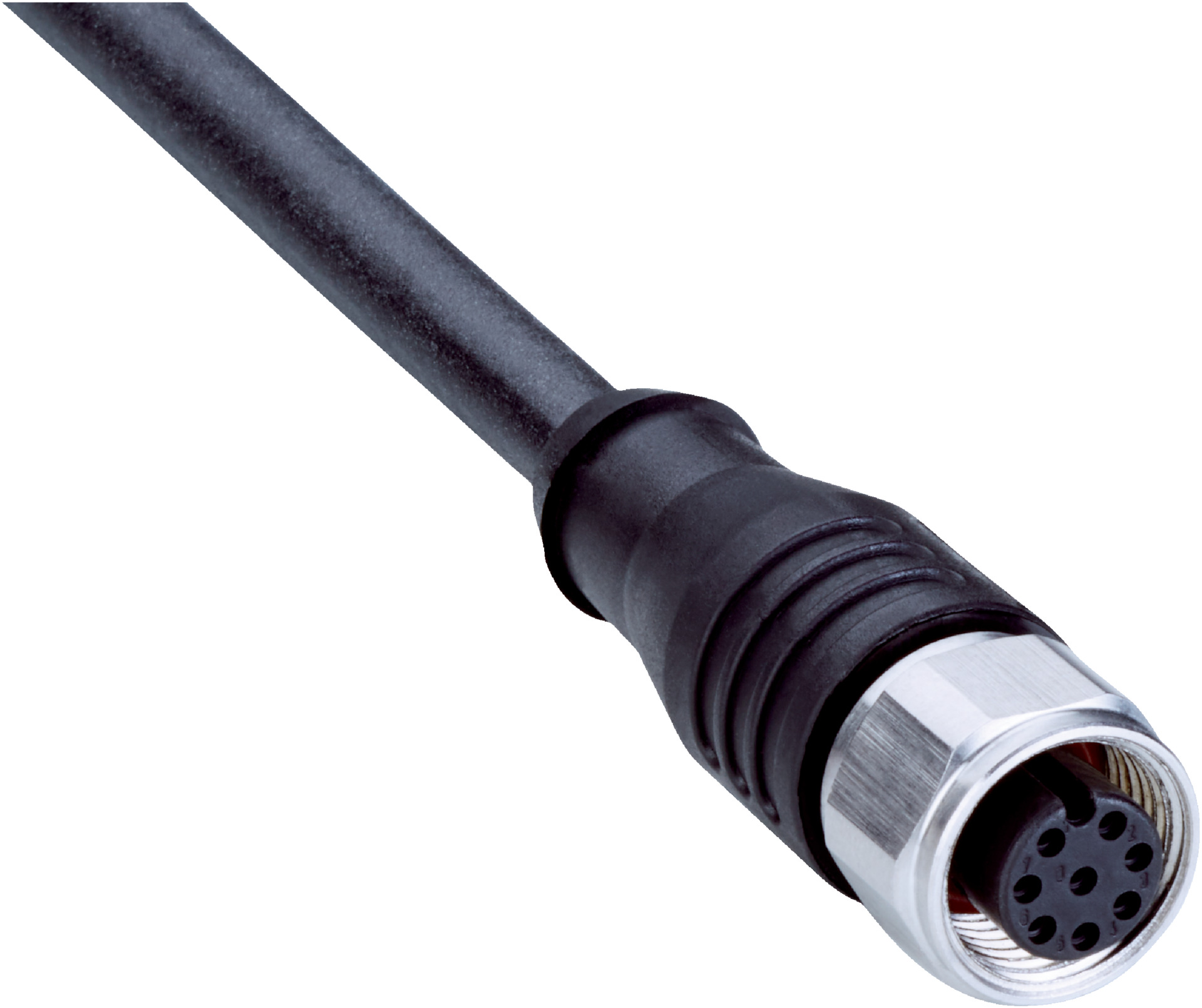

M12 8-Pin Sensor/Actuator Cable | 20m Length | Shielded & Halogen-Free | IP67/IP69K Rated | by SICK
The M12 8-Pin Sensor/Actuator Cable is designed for reliable signal transmission in industrial automation and robotics. With a robust 20m length, shielded construction, and halogen-free PUR jacket, it ensures durability in harsh environments. Ideal for applications in uncontaminated zones and those exposed to oils and lubricants, this cable supports high bending and torsion cycles, making it perfect for drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable length: 20 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.3 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -30 °C to +90 °C
- Operating temperature stationary position: -40 °C to +90 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 1.7 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Torsion force: ± 360° / 1 m
- Torsion cycles: 1,000,000
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 8-pin, straight on head A
- Flying leads on head B
- Cable length 20 m, 8-wire, PUR, halogen-free
- Shielded cable with TPU connector material
- Locking nut made of stainless steel (V4A/1.4404)
- High bending radius for flexible use and stationary position
- Operating temperature range from -40 °C to +90 °C
- IP67/IP69K enclosure rating for robust protection
- Designed for torsion cycles up to 1,000,000 and bending cycles ≥ 1,000,000
- Suitable for sensor/actuator signal transmission
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A68-200UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and flexible cabling.
