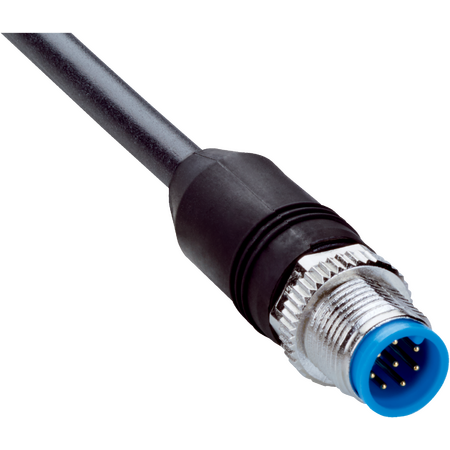

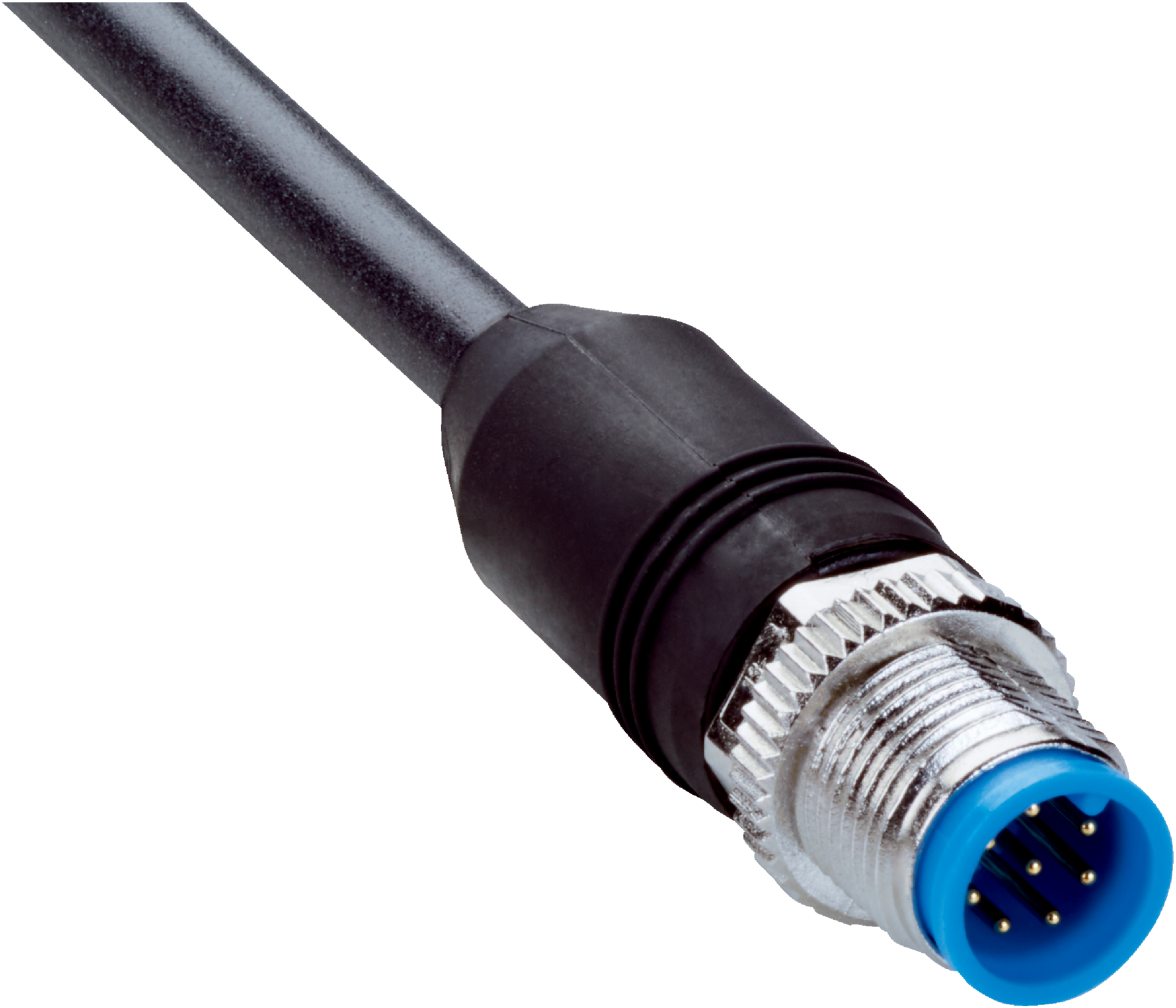

M12 8-Pin Sensor Actuator Cable | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 8-Pin Sensor Actuator Cable is designed for robust industrial applications, featuring a 5m length and halogen-free PUR construction. With an impressive operating temperature range of -40 °C to +85 °C and an IP65/IP66K/IP67 enclosure rating, this cable is perfect for drag chain operations and environments with oils and lubricants, ensuring reliable performance in robotics and automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 8-pin, actuator cable PUR halogen-free, drag chain cable SICK
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 2 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- UL File No.: E335179
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable: 5 m, 8-wire, PUR, halogen-free
- Operating temperature range: -40 °C to +85 °C depending on use
- High bending radius and torsion resistance for flexible use
- Enclosure rating: IP65 / IP66K / IP67
- UL and cULus certified
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2A18-050UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and flexible cabling.
