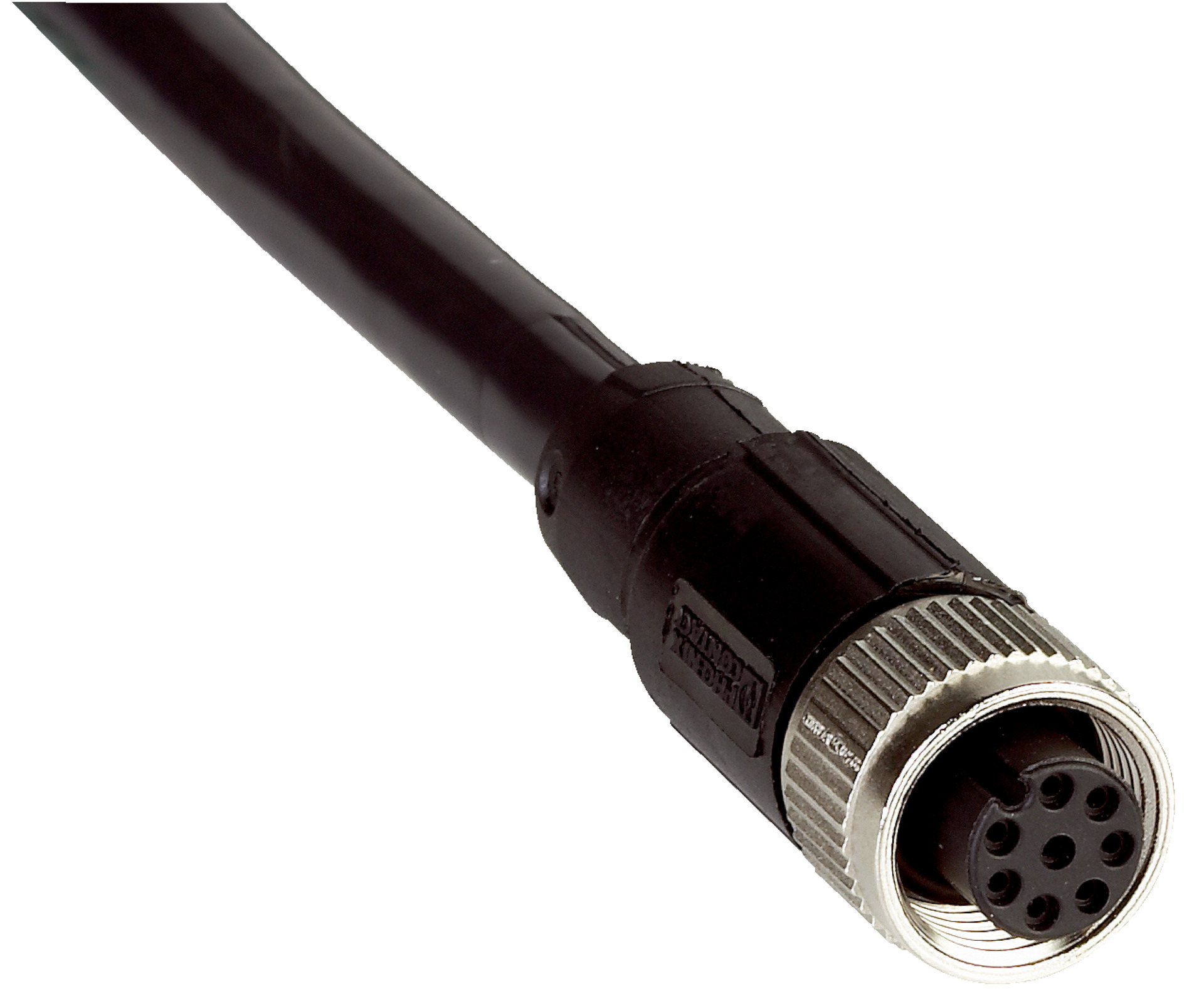

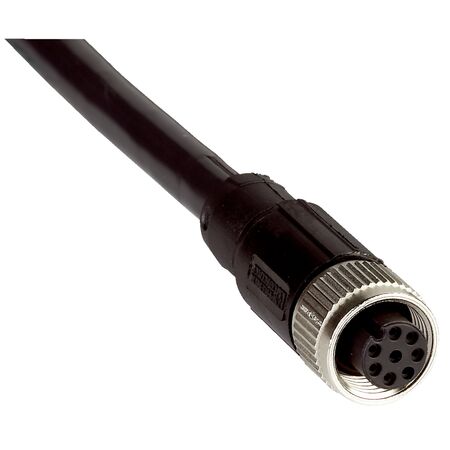

M12 8-Pin Sensor/Actuator Cable | 5m Length | Halogen-Free PUR | by SICK
The M12 8-Pin Sensor/Actuator Cable is designed for reliable connections in industrial automation, featuring a 5m halogen-free PUR jacket and a female connector. Ideal for environments with oils and lubricants, this cable supports flexible use with a high bending radius and operates effectively in temperatures from -5 °C to +80 °C. With a robust design, it ensures durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 5 m, 8-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 9 x cable diameter, Stationary position > 9 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –40 °C to +80 °C, Head –25 °C to +90 °C
- Bending cycles: 4,000,000
- Reference voltage: ≤ 30 V
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads connection type
- Cable length: 5 m, 8-wire, PUR, halogen-free
- Connector material: TPU with zinc die-cast, nickel-plated locking nut
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Unshielded cable
- High bending radius for flexible use and stationary position
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –40 °C to +80 °C, Head –25 °C to +90 °C
- Bending cycles: 4,000,000
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Zones with oils and lubricants
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DOL-1208G05MD25KM1 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
