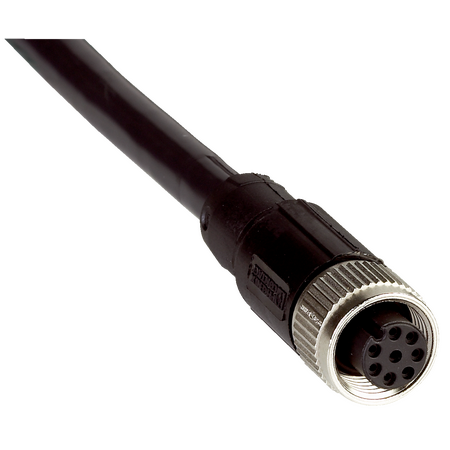

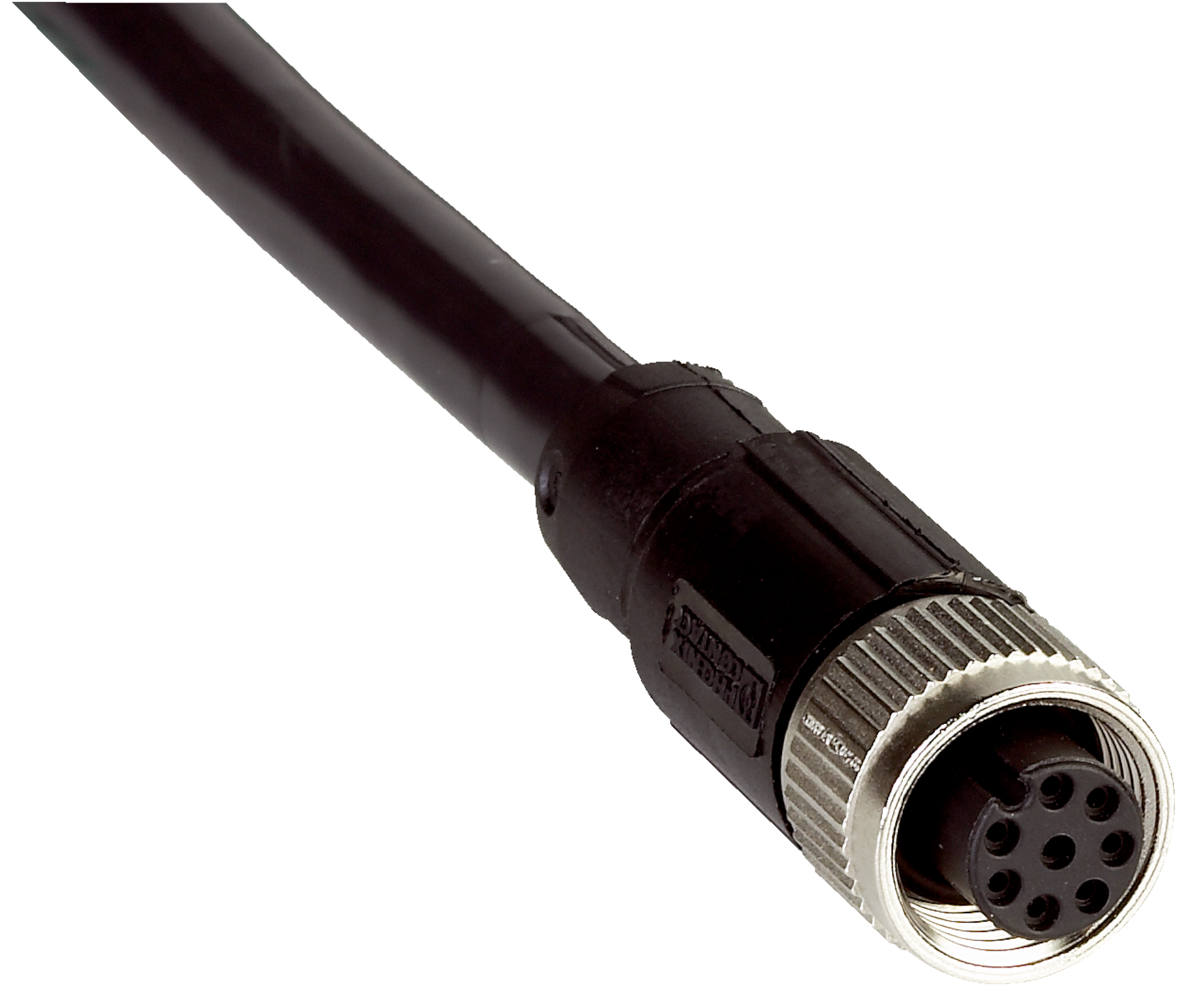

M12 8-Pin Sensor Cable | 10m Length | Halogen-Free PUR | by SICK
The M12 8-Pin Sensor Cable is designed for industrial automation, featuring a 10m length and halogen-free PUR construction. Ideal for sensor and actuator connections in drag chain operations, this cable offers high durability with a bending cycle rating of 4,000,000 cycles and operates effectively in temperatures ranging from -40 °C to +90 °C. Its unshielded design ensures reliable performance in environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin sensor cable, M12 female connector cable 10m, SICK sensor cable, industrial automation cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 9 x cable diameter
- Bending radius stationary position: > 9 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Bending cycles: 4,000,000
- Reference voltage: ≤ 30 V
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Application: Drag chain operation zones with oils and lubricants
- Dimensions (H x L x W): 20mm x 10000mm x 20mm
- Weight: 0.2 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- 10 m length, 8-wire PUR cable, halogen-free
- Cable diameter 5.9 mm with TPU connector material
- Zinc die-cast, nickel-plated locking nut
- Unshielded sensor/actuator cable suitable for drag chain use
- High bending radius for flexible use and stationary positions
- Operating temperature range: -40 °C to +90 °C
- High bending cycle durability with 4,000,000 cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Drag chain operation in zones with oils and lubricants
- Machine and factory automation requiring flexible and durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-1208G10MD25KM1 M12 8-pin female connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
