M12 8-Pin Sensor Cable | 2.5m Length | Shielded & Halogen-Free | IP65/IP67 Rated | by SICK
The M12 8-Pin Sensor Cable is designed for industrial automation, featuring a 2.5m length with a durable 7-wire PUR halogen-free jacket. Ideal for machine building and robotics, this cable ensures reliable connections with an IP65/IP67 rating for dust and water protection, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

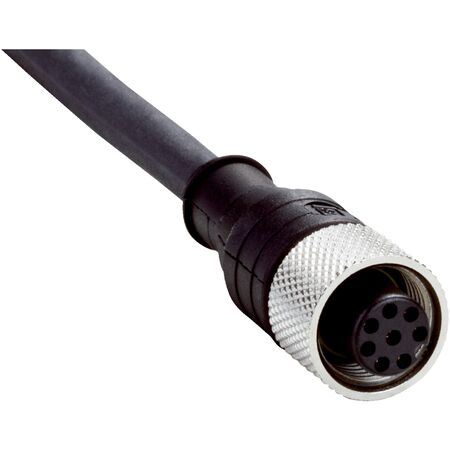

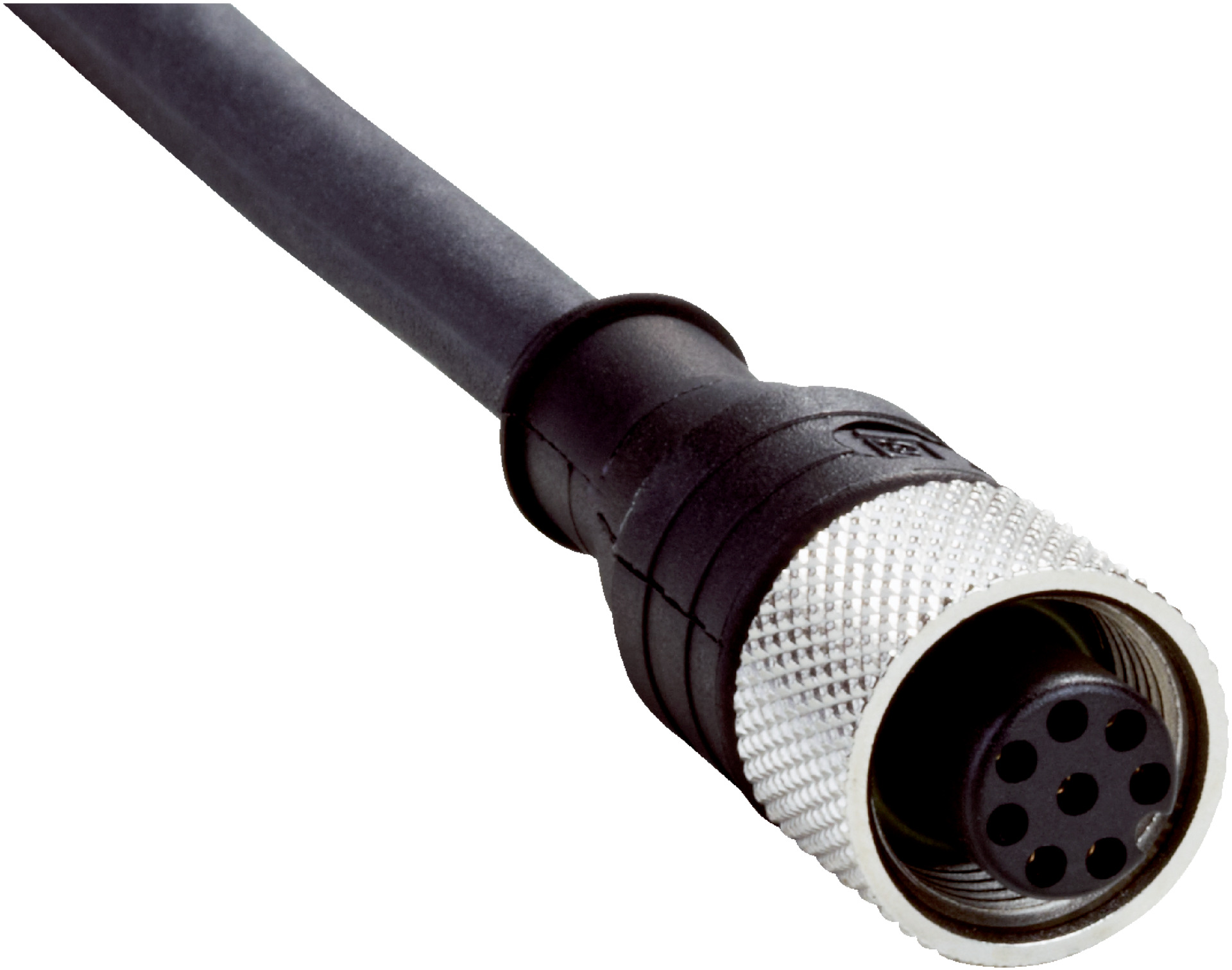

- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Cable length: 2.5 m
- Cable type: 7-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: > 2,000,000
- Reference voltage: ≤ 30 V
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Head temperature range: -25 °C to +80 °C
- Enclosure rating: IP65/IP67 (EN 60529)
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 6mm x 2500mm x 6mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight on head A
- Flying leads on head B
- Cable length 2.5 m with 7-wire PUR halogen-free jacket
- Shielded cable with TPU connector material
- High durability with over 2,000,000 bending cycles
- Operating temperature range from -50 °C to +80 °C
- IP65/IP67 rated enclosure for dust and water protection
- UL recognized cable and jacket for safety compliance
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Machine building and factory automation
- Robotics and control systems requiring reliable cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacement and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-127SG2M5E25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
