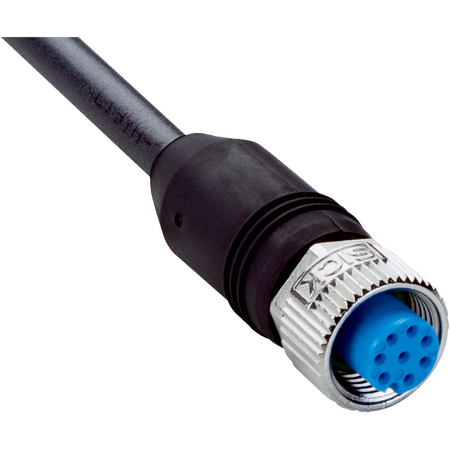

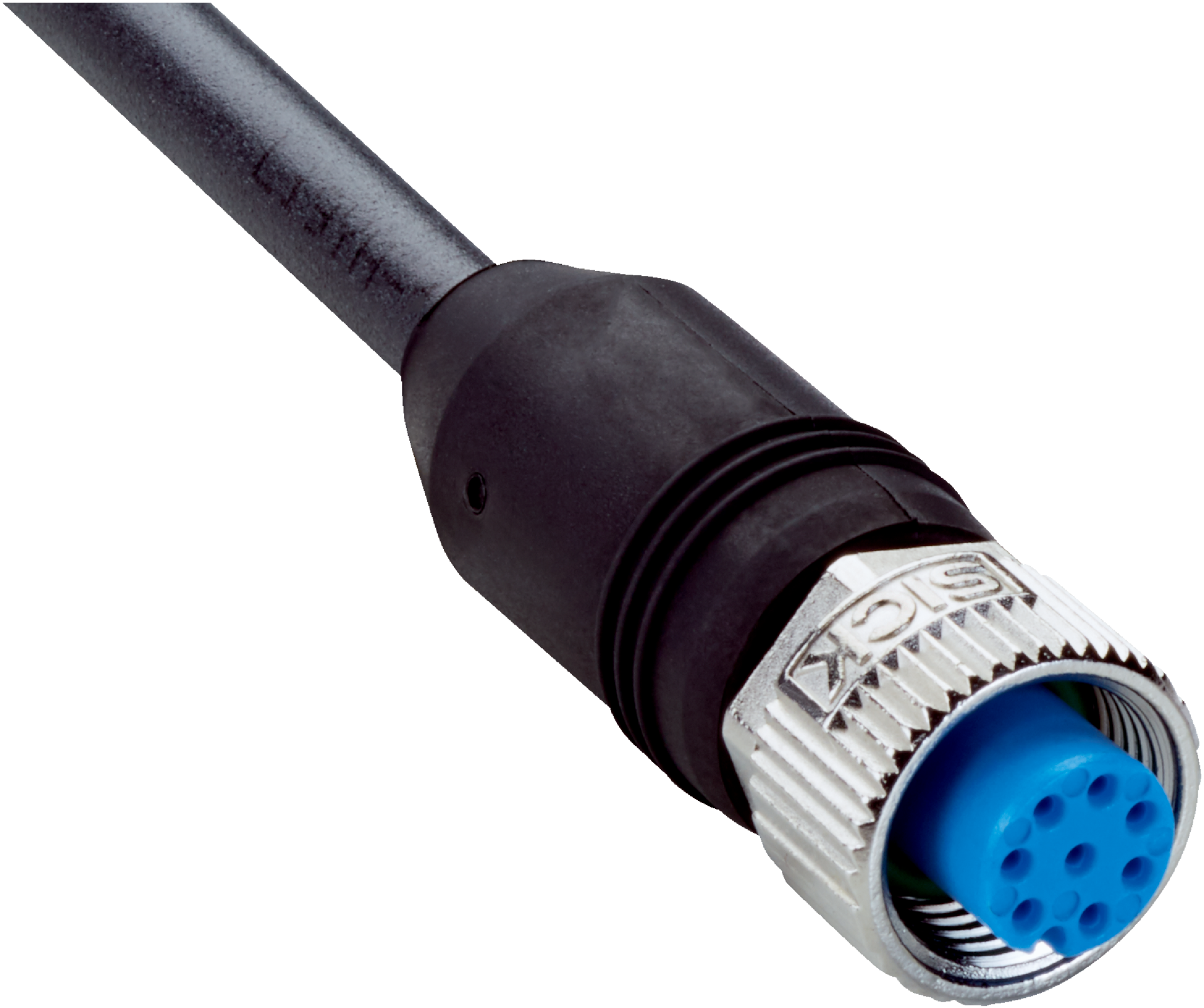

M12 8-Pin Sensor Cable | 2m Length | IP65/IP66K/IP67 Rated | Halogen-Free | by SICK
The M12 8-Pin Sensor Cable is designed for reliable connections in industrial automation and robotics. With a 2m length and IP65/IP66K/IP67 enclosure rating, it’s perfect for drag chain operations and environments with oils and lubricants. Built with durable TPU material and a screw connection locking plug, this cable ensures high performance and longevity, making it an ideal choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin sensor cable, actuator cable, PUR halogen-free cable, drag chain cable
Technical Specifications
- Dimensions (H x L x W): 20mm x 2000mm x 58mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 2 m, 8-wire, PUR, halogen-free cable
- Cable diameter 5.8 mm, conductor cross section 0.25 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature range: Flexible use –25 °C to +80 °C, Stationary position –40 °C to +80 °C, Drag chain operation –25 °C to +80 °C, Head –25 °C to +85 °C
- IP65 / IP66K / IP67 enclosure rating
- Nominal voltage 300 V AC, test voltage 2,500 V AC
- Current loading 2 A
- Torsion force 180° / 1 m with 2,000,000 torsion cycles
- Traversing speed 3 m/s, travelling distance 10 m, acceleration ≤ 10 m/s²
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact and toxic emissions in case of fire
- Durable materials and high bending and torsion cycle resistance extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YF2A18-020UA5XLEAX sensor/actuator cable is available for immediate purchase. Ideal for industrial automation, robotics, and drag chain applications.
