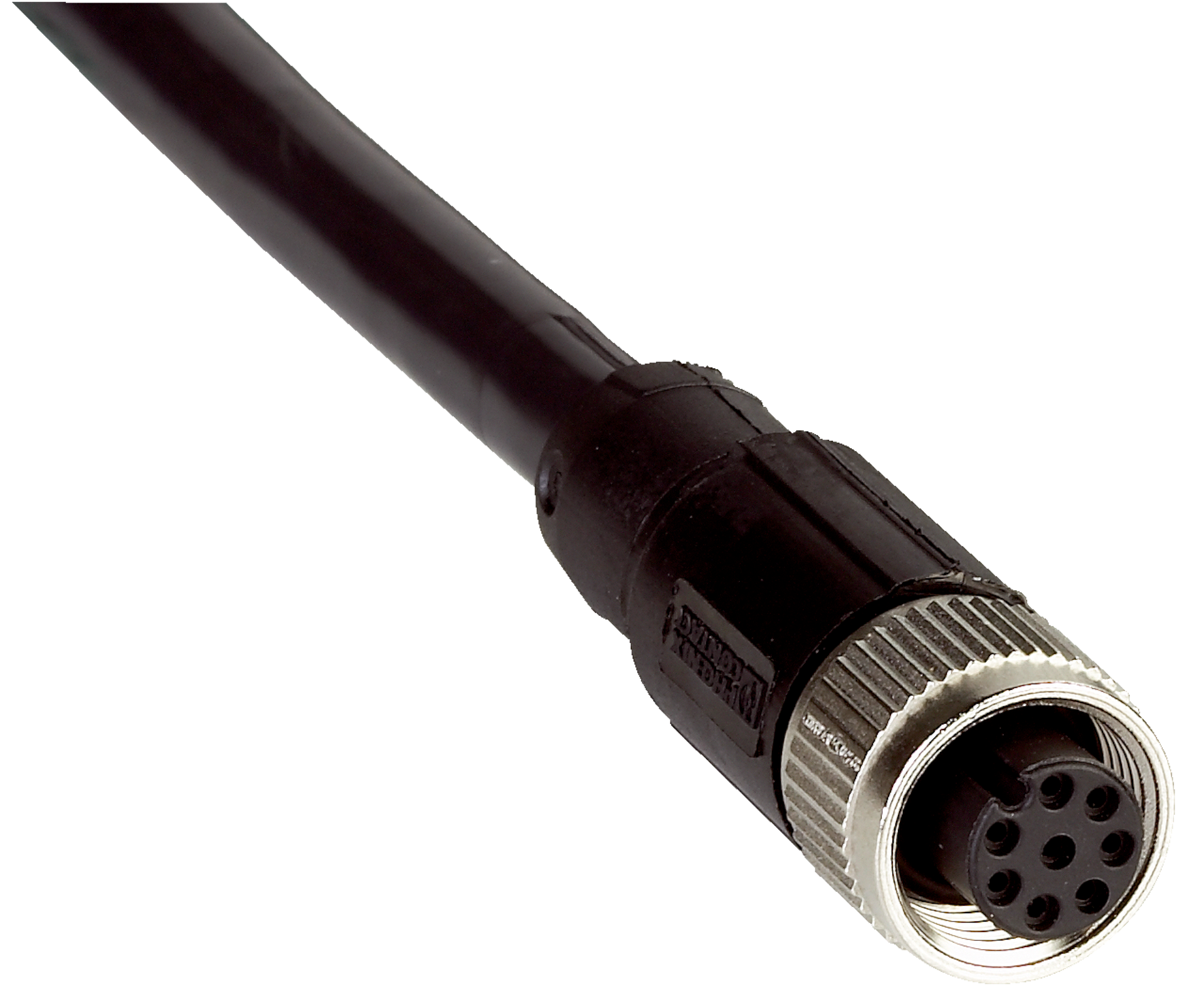

M12 8-Pin Sensor Cable | 5m Length | Halogen-Free PUR Jacket | by SICK
The M12 8-Pin Sensor Cable is designed for industrial automation, featuring a 5m length and a halogen-free PUR jacket for enhanced safety. With a female connector and high flexibility, it's perfect for drag chain operations in environments with oils and lubricants, ensuring reliable connections for sensors and actuators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin sensor cable, M12 female connector cable, industrial sensor cable, actuator connection cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 9 x cable diameter, Stationary position > 9 x cable diameter
- Operating temperature: Flexible use -5 °C to +80 °C, Stationary position -40 °C to +80 °C, Head -25 °C to +90 °C
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Application: Drag chain operation in zones with oils and lubricants
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Cable length: 5 m with 8 wires
- Cable jacket made of halogen-free PUR material
- Connector material: TPU with zinc die-cast, nickel-plated locking nut
- Unshielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use and stationary positions
- Operating temperature range: -40 °C to +90 °C depending on part
- Designed for traversing speeds up to 3 m/s and travelling distances up to 10 m
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable for industrial automation
- Drag chain operation in zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

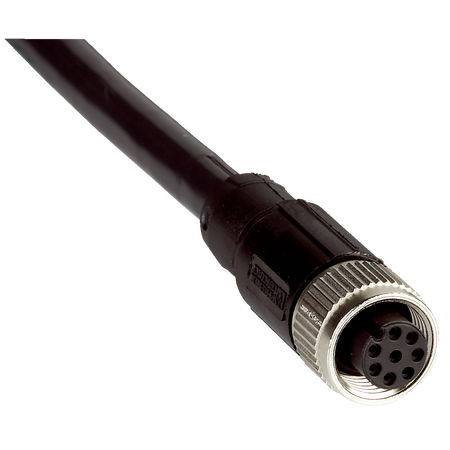

The SICK DOL-1208G05MD25KM1 M12 8-pin female connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
