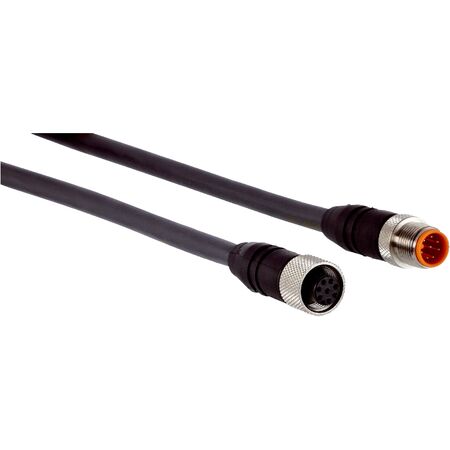

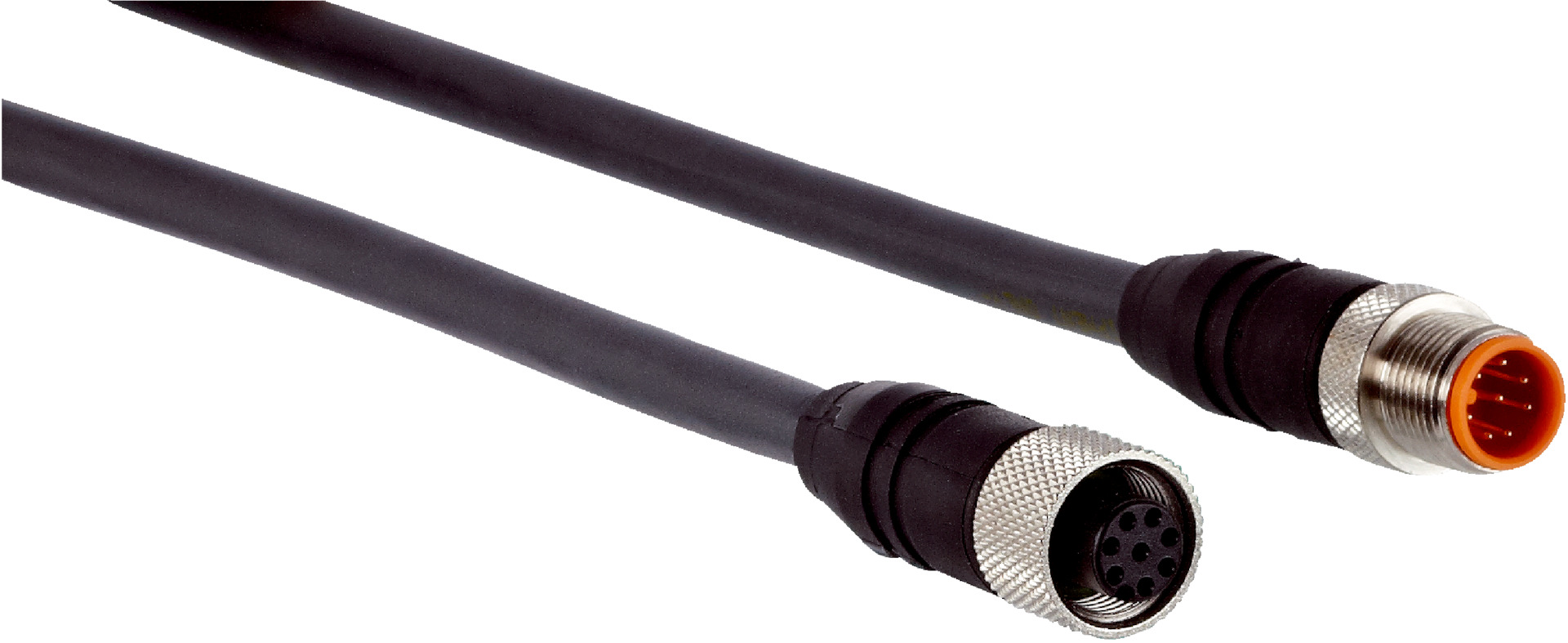

M12 8-Pin Sensor Cable | Shielded & Halogen-Free | IP65/IP68/IP69K Rated | by SICK
The M12 8-pin sensor cable is designed for industrial automation and sensor connectivity, featuring female and male straight connectors for reliable connections. With a shielded design and halogen-free PUR jacket, it ensures safety and durability in various applications, including machine building and robotics. Its high ingress protection rating makes it suitable for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Male connector, M12, 8-pin, straight
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Enclosure rating: IP65 / IP68 / IP69K
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female and male M12 8-pin straight connectors
- Shielded cable for interference protection
- Halogen-free PUR jacket for enhanced safety
- High ingress protection rating IP65/IP68/IP69K
- Durable zinc die-cast nickel-plated locking nut
- Flexible operating temperature range for versatile use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Robotics and control systems requiring reliable M12 connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DSL-1208-G05MAC1 M12 8-pin shielded cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
