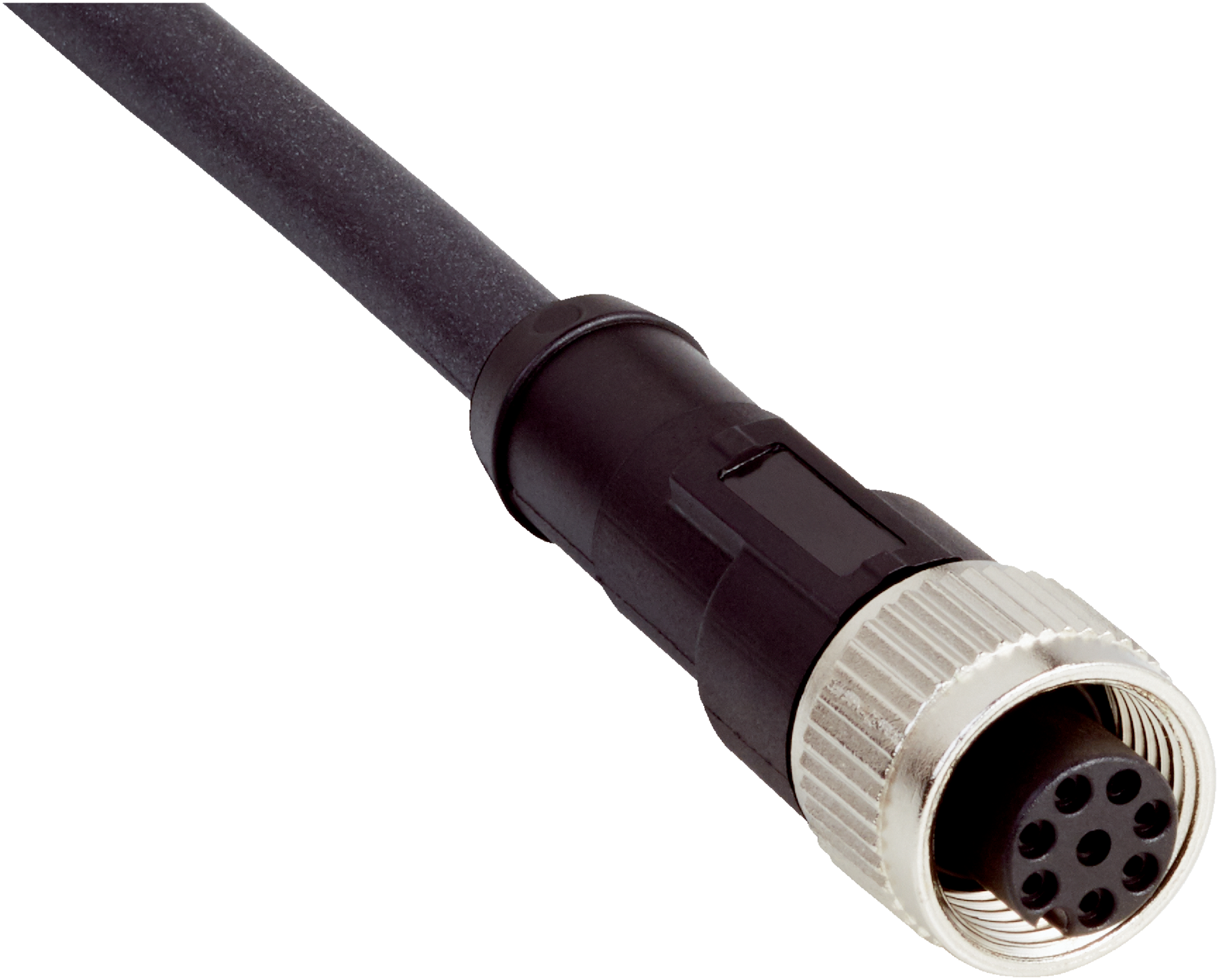

M12 8-Pin Sensor Cable | Shielded | IP67 Rated | 5m Length | by SICK
The M12 8-Pin Sensor Cable is designed for reliable sensor and actuator connections, featuring a shielded design and an IP67 enclosure rating for dust and water protection. With a flexible operating temperature range from -40 °C to +80 °C, this cable is perfect for use in uncontaminated zones and areas with chemicals, ensuring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin sensor cable, M12 female connector cable, actuator cable 5m, shielded sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: PVC
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable wires: 8-wire, PVC jacket
- Cable diameter: 6.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Operating temperature flexible use: +5 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Enclosure rating: IP67
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 6mm x 5000mm x 6mm
- Weight: 0.15 kg
Key Features
- Female connector, M12, 8-pin, straight
- Shielded sensor/actuator cable
- Special color code for easy identification
- IP67 enclosure rating for dust and water protection
- Operating temperature range suitable for flexible and stationary use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with chemicals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and shielding extend cable life, reducing waste
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now

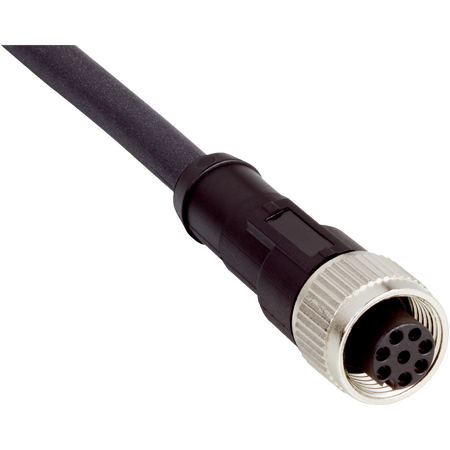

The SICK DOL-1208-G05MF sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
